Jet E-1236VS With Newall DP700 DRO With Taper Attachment 892320

Jet E-1236VS With Newall DP700 DRO With Taper Attachment 892320 is a JET product in the Lathes collection.

Product Details

• 4-Position Carriage Stop
• Chuck guards are standard equipment on all ELITE lathes for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine

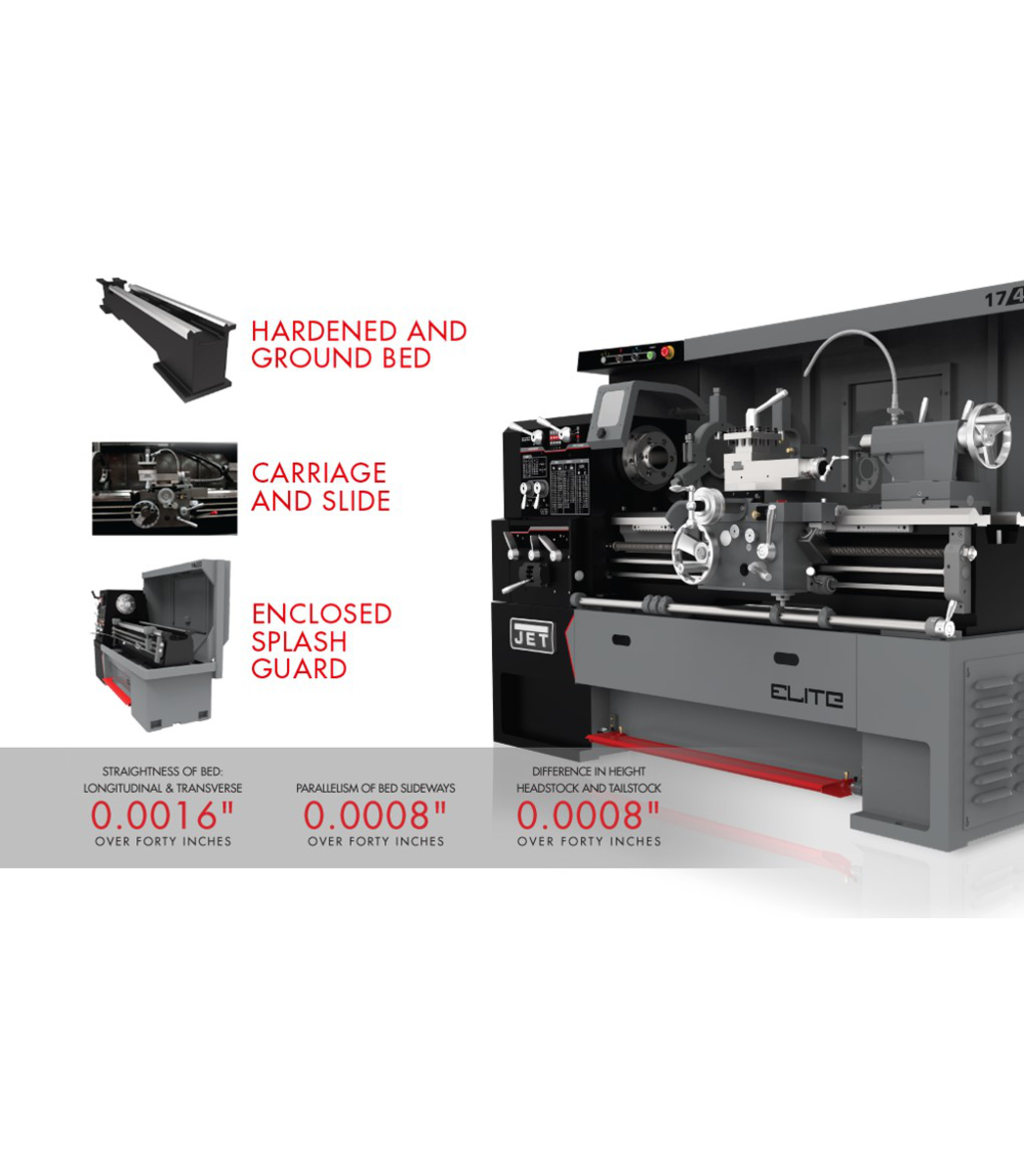

• Hardened and ground gears in headstock reduce vibration and deflection
• Integrated locking tool cabinet in stand on 12" Lathe
• Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
• Inverter drive system provides infinitely variable spindle speeds
• LED RPM readout allows for precise turning speeds
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
• Specification: Value
• Size: 12 x 36
• Style (Type): ELITE EVS
• Swing Over Bed (In.): 12
• Swing Over Cross Slide (In.): 7-5/16
• Swing Through Gap (In.): 17-1/2
• Length of Gap (In.): 9-1/2
• Spindle Bore (In.): 1-9/16
• Spindle Mount: D1-4
• Weight (Lbs.): 1212
• Range of Spindle Speeds (RPM): 0 – 2,000
• Spindle Taper with Sleeve: MT-5
• Number of Longitudinal and Cross Feed Rates: 50
• Range of Longitudinal Feeds (IPR): 0.0016 – 0.046
• Range of Cross Feeds (IPR): 0.0005 – 0.015
• Number of Inch Threads: 34
• Range of Inch Threads (TPI): 2 – 56
• Number of Metric Threads: 33
• Range of Metric Threads: 0.5 – 12
• Max Tool Size (In.): 1/2 x 1/2
• Compound Slide Travel (In.): 3-1/2
• Motor (HP): 2HP, 230V,3ph
• Tailstock Spindle Travel (In.): 4
• Taper in Tailstock Spindle: MT-3
• Steady Rest Capacity (In.): 1/4 – 2-1/2
• Width of Bed (In.): 7-1/2
• Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
• Drive: EVS
• Height: 0.0000
• Length: 0.0000
• Weight: 1477.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-892320
• UPC: 731325282375
• Shipping Method: LTL Freight
• Weight: 1,477 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
