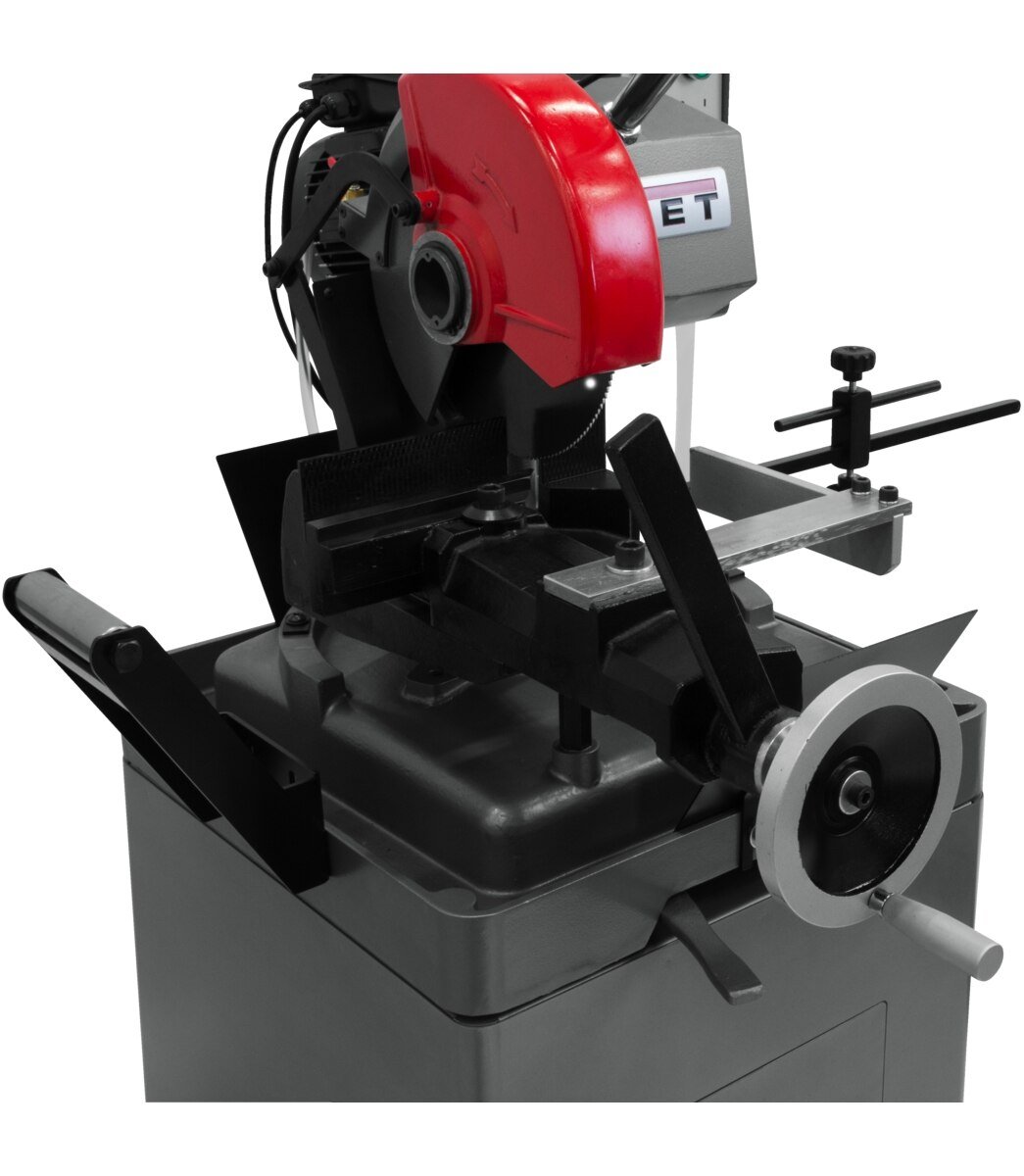

Jet CS-275, 275mm Ferrous Manual Cold Saw 414226

Jet CS-275, 275mm Ferrous Manual Cold Saw 414226 is a JET product in the Cold Saws collection.

Product Details

• Blade drive reduction gearbox operates in an oil bath for increased durability
• Cast iron frame
• Flood coolant system
• Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
• Fully adjustable material depth stop for sawing repeatability and increased production
• JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty
• Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
• Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform
• Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
• Quick tension and release mitering capabilities with stops at 45° right, 45° left
• Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
• Specification: Value
• Style (Type): Ferrous
• Tubing Round at 45 Degrees (In.): 3-19/64
• Tubing Round at 90 Degrees (In.): 3-19/64
• Tubing Rectangle at 45 Degrees (In.): 2-3/16 x 2
• Tubing Rectangle at 90 Degrees (In.): 3-3/32 x 2
• Solid Round at 45 Degrees (In.): 3-19/64
• Solid Round at 90 Degrees (In.): 3-19/64
• Weight (Lbs.): 360
• Solid Square at 45 Degrees (In.): 2-3/16 x 2-3/16
• Solid Square at 90 Degrees (In.): 2-1/2 x 2-1/2
• Solid Rectangle at 45 Degrees (In.): 2-3/16 x 2
• Solid Rectangle at 90 Degrees (In.): 3-3/32 x 2
• Maximum Vise Opening (In.): 4
• Motor (HP): 1-1/2HP, 230V, 3Ph 2/4P 6.1/7.2 Amps
• Height: 61.0000
• Length: 27.0000
• Width: 25.0000
• Weight: 400.0000

Specifications

• Manufacturer: JET
• SKU: JT9-414226
• UPC: 662756127846
• Shipping Method: LTL Freight
• Weight: 400 lb
• Dimensions: 27 × 25 × 61 in
• Country of Origin: Taiwan
