Jet BDB-919 Belt Drive Bench lathe 321378

Jet BDB-919 Belt Drive Bench lathe 321378 is a JET product in the Lathes collection.

Product Details

• Backlash adjustments provided throughout the carriage
• Emergency stop within easy reach of the Operator
• Full Length Splash Guard
• Power longitudinal feed allows threading and reverse threading
• Quick change gearbox provides wide range of inch and metric threads

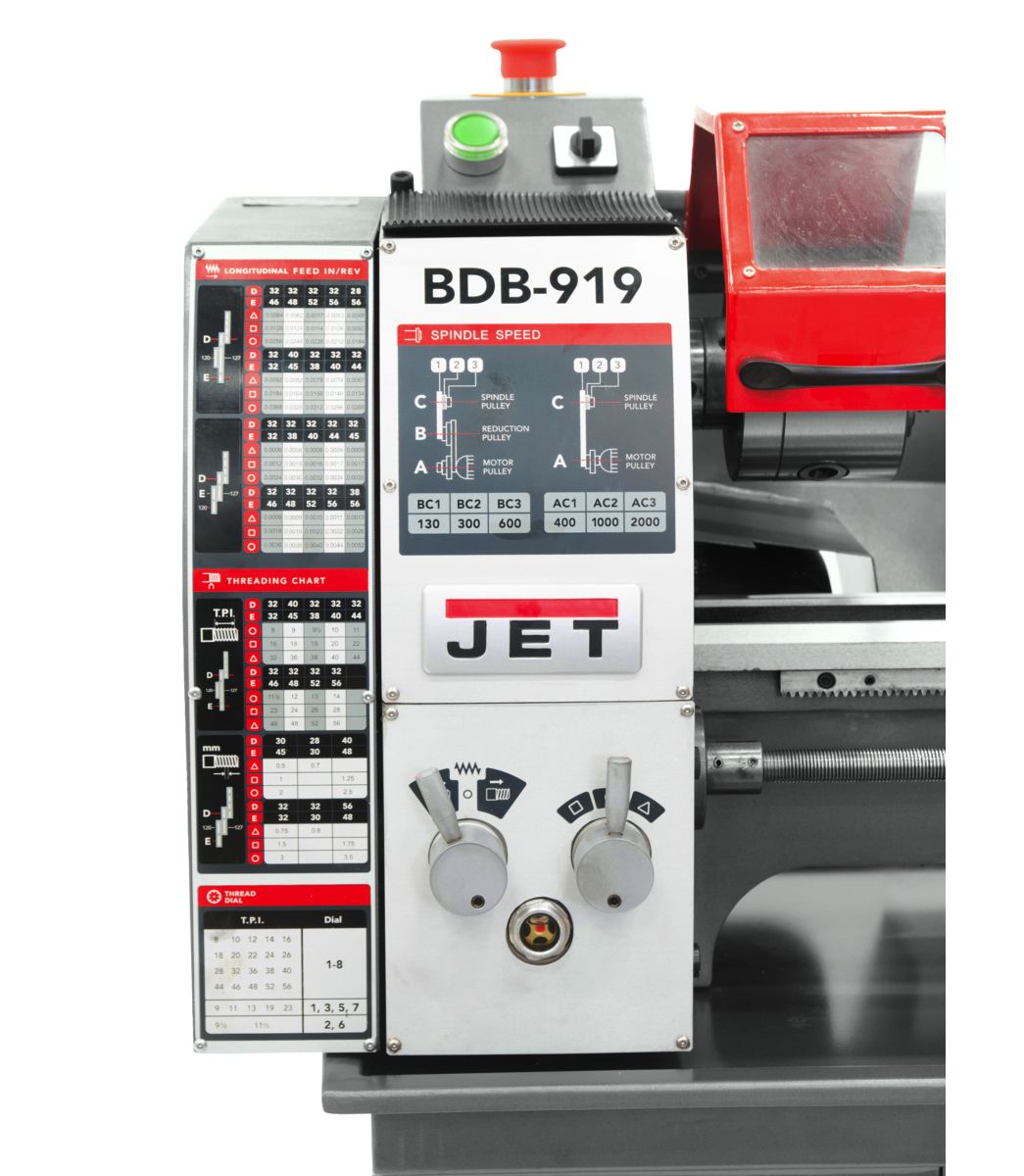

• The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces.
• Reversing switch for added versatility
• Safety on/off switch
• Some images show lathe with optional stand
• Standard Accessories
• Specification: Value
• Number of Spindle Speeds: 6
• Swing Over Bed (In.): 8-3/4
• Swing Over Cross Slide (In.): 5
• Spindle Bore (In.): 3/4
• Spindle Mount: 1-1/2 x 8TPI
• Weight (Lbs.): 250
• Range of Spindle Speeds (RPM): 130-2000
• Spindle Taper with Sleeve: MT-3
• Number of Longitudinal and Cross Feed Rates: 60
• Range of Longitudinal Feeds (IPR): 0.0006-0.0368
• Number of Inch Threads: 27
• Range of Inch Threads (TPI): 8 – 56
• Number of Metric Threads: 12
• Range of Metric Threads: 0.5 – 3.5
• Max Tool Size (In.): 1/2
• Compound Slide Travel (In.): 1-7/8
• Carriage Travel (In.): 17.5
• Motor (HP): 3/4 HP, 115V, 1PH
• Tailstock Spindle Travel (In.): 1-9/16
• Taper in Tailstock Spindle: MT-2
• Steady Rest Capacity (In.): 1-3/4
• Width of Bed (In.): 4-1/2
• Overall Dimensions (L x W x H) (In.): 41x22x20
• Height: 30.0000
• Length: 40.0000
• Weight: 304.0000
• Width: 20.0000

Specifications

• Manufacturer: JET
• SKU: JT9-321378
• UPC: 731325545647
• Shipping Method: LTL Freight
• Weight: 304 lb
• Dimensions: 40 × 20 × 30 in
• Country of Origin: China
