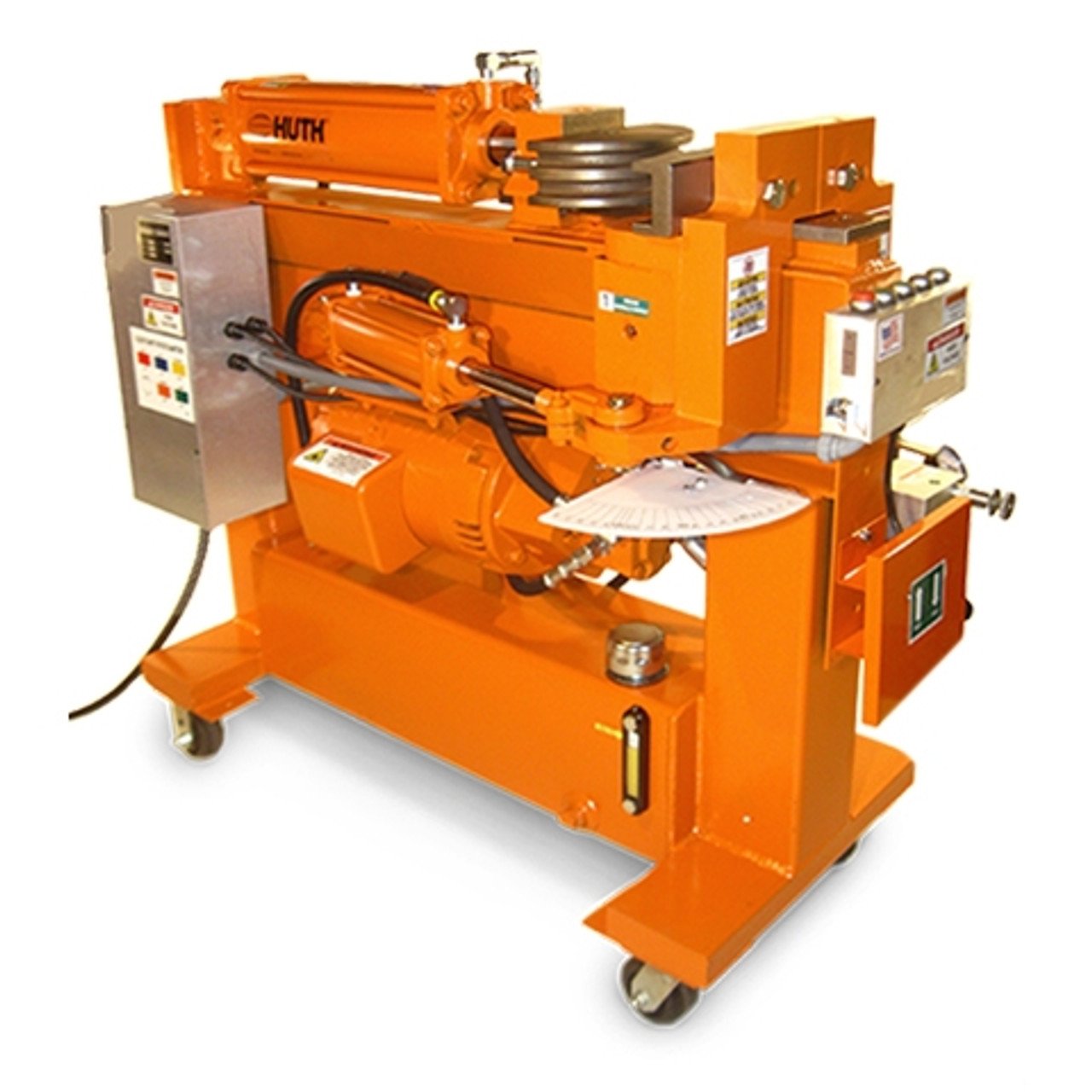

Huth 220V Three Phase 7.5HP Manual Knee Control Fabrication Bender with 5in Cylinder 2650

Huth 220V Three Phase 7.5HP Manual Knee Control Fabrication Bender with 5in Cylinder 2650 is a Huth product in the Roll Benders collection.

Product Details

• Motor: 7.5HP 220V Three Phase
• 5 inch cylinder
• 58,000 lbs of bending force
• Extra large 10 gallon oil tank
• Description
• The Model 2650 Fabrication Bender is great for all kinds of frame fabrication: trailers, fencing/gates, pole barns, carports, sporting equipment, farm structures (feed rings, panels, saddle racks), boat frame-lifts, and industrial racking just to name a few!
• This machine comes standard with a 7.5 horsepower motor and a 5-inch cylinder with 58,000 lbs of bending force. A 3” tube bend to 90-degree in the automatic mode can be completed in 16 seconds. The ergonomically designed knee control allows the operator hands-free control for quick tube location and securing of the tube. It is also invaluable for prototyping.
• The smart automatic mode features an adjustable return-to-home position control. This unique, time-saving feature increases efficiency by assuring fast and easy transitions between multiple bends. The automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth-of-bend plate. This feature assures accuracy and repeatability.
• Features
• Steel I-Beam construction reinforced with heavy steel framing
• Ergonomic: bending plane height 42”
• High efficiency, quiet helical pump
• Extra large oil tank (10 gal) for continuous and multi-shift usage
• 7.5 horsepower motor, heavy duty gates and brushings
• Small footprint: 24” wide, 54” long
• Knee pedal activation for set up
• Auto depth of bend selector
• Bends round, square, rectangular tubing and pipe
• Handles schedule/thick wall pipe with ease
• Options
• Custom tooling available Tooling available for these materials: square, flat stock, common pipe and tube
• Tooling available for these materials: square, flat stock, common pipe and tube
• Optional built-in end-forming kit

Specifications

• Manufacturer: Huth
• SKU: 2650 (3PH)
• Shipping Method: LTL Freight
• Weight: 1,290 lb
• Dimensions: 77 × 33 × 52 in
