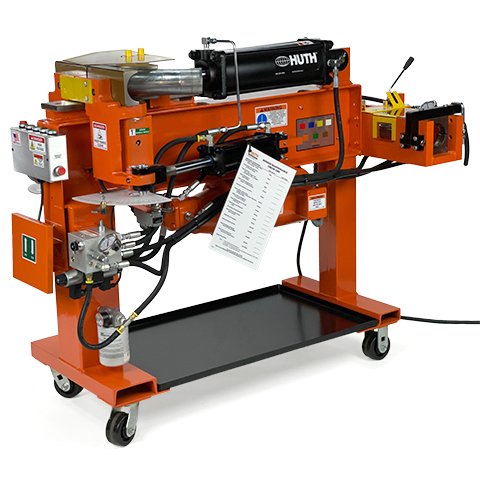

Huth 220V Three Phase 5HP Manual Knee and Push Button Control Horizontal Pipe Bender 2806

Huth 220V Three Phase 5HP Manual Knee and Push Button Control Horizontal Pipe Bender 2806 is a Huth product in the Tube & Pipe Benders collection.

Product Details

• Motor: 5HP 220V Three Phase
• 58,000 lbs of bending force
• Automatic Depth-of-Bend selector
• Push button control
• Description
• The Model 2806 is designed for high volume shops that need quick, precise, bending and end finishing. This machine offers the convenience of a knee pedal control along with manual and automatic push buttons. A reduced size control panel allows the operator to get closer to the work area for more precision and less fatigue.
• The Smart Automatic Mode features an adjustable return-to-home position control. This unique, timesaving feature increases efficiency by assuring fast and easy transitions between multiple bends. In the automatic mode, the automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth of bend plate.
• Model 2806 comes with a 5-horsepower motor and provides 58,000 lbs of bending force. The heavy duty swager/expander gives you complete end finishing capabilities. The swager end accommodates 1” to 3” tubing. The expander end allows for expansions from 1” to 5½”. With Huth’s Accu-Sizer bull’s-eye expanding system, you can dial in precise expansions every time.
• Features
• Easy to use manual knee pedal control
• Auxiliary on/off switch
• Agricultural main cylinder
• Flat tool tray
• Bending die retainer
• Heavy duty swager/expander
• Rugged I-Beam construction
• Exclusive safety guard package
• Front swivel casters w/o brakes
• Options
• High voltage and high speed options available
• Tooling available for additional purchase

Specifications

• Manufacturer: Huth
• SKU: 2806 (3PH)
• Shipping Method: LTL Freight
• Weight: 1,470 lb
• Dimensions: 77 × 33 × 52 in
