Huth 220V Single Phase 5HP Portable Vertical Dual Head Broad Range Tube Expander 1674V

Huth 220V Single Phase 5HP Portable Vertical Dual Head Broad Range Tube Expander 1674V is a Huth product in the Roll Benders collection.

Product Details

• Motor: 5HP 220V Single Phase
• Expanding capacity from 1” to 12” with appropriate tooling
• Vertically oriented cylinders
• Features Huth’s Accu-Sizer for quick, precise expanding
• Description

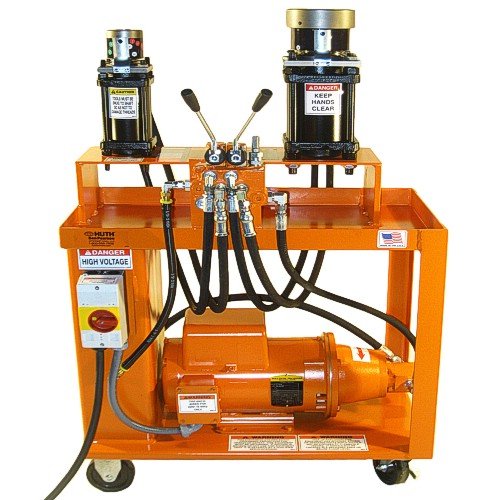

• Mounted on its own easy wheeling cart, Huth’s model 1674V portable vertical expander equips you to use all existing Huth expanding type tooling with two cylinders oriented vertically. Making expansions quicker and easier to produce. The machine is powered by a 5-horsepower motor giving the 3 ½” cylinder 25,000 lbs of expanding power and the 5” cylinder produces 49,000 lbs of expanding power.
• With the expanding capability of up to 12” (with appropriate tooling) the 1674V can be utilized for a broad range of expansions and end form shapes. The 3 ½” cylinder is equipped with Huth’s Accu-Sizer system for quick, precise expanding every time. The large tray allows you to keep your tooling within easy reach; just wheel the 1674V to where the work is.
• Features
• 3 ½” cylinder producing 25,000 lbs of expanding power
• 5” cylinder producing 49,000 lbs of expanding power
• Expanding capacity 1” to 12” with appropriate tooling
• Accu-Sizer adjustable collar for 3 ½” cylinder
• Adjustable collar for 5” cylinder
• Collar extension for 5” cylinder
• 60 Hz
• Front swivel casters
• 15ft power cord with male and female receptacles
• 4 gallon capacity oil tank
• Options
• Other voltage options available
• Custom tooling available

Specifications

• Manufacturer: Huth
• SKU: 1674V (1PH)
• Shipping Method: LTL Freight
• Weight: 547 lb
• Dimensions: 34 × 34 × 49 in
