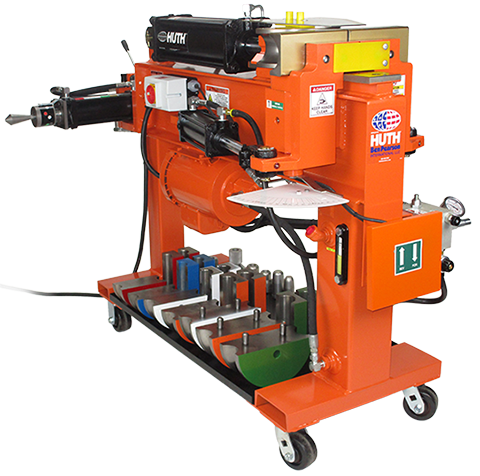

Huth 220V Single Phase 5HP 1600 Manual Knee Control Pipe Bender with 028 Die Package HB-10

Huth 220V Single Phase 5HP 1600 Manual Knee Control Pipe Bender with 028 Die Package HB-10 is a Huth product in the Tube & Pipe Benders collection.

Product Details

• Motor: 5HP 220V Single Phase
• Includes the 028 Die Package
• 58,000 lbs of bending power
• Manual Depth-of-Bend Indicator
• Description
• For one low price you get everything you need to bend up to 3” pipes, including tooling and an instruction video. Huth’s HB-10 Complete Bender Package includes Huth’s newest Manual Knee Control Bender (Model 1600) and comprehensive tooling package (028 Die Package) with everything you need to create O.E.-fit and custom-bent pipes. This entry level tube bender was designed to introduce you to Huth quality while showing you the incredible profit potential that awaits you.
• The HB-10 features knee control activation, manual depth-of-bend control and 58,000 lbs of bending power, more than enough for 3” tubing. It also features a built-in swager/expander for complete end-finishing capability to handle 1”-3” tubing on the swager end and 1”-5½” tubing on the expander end. You will also receive bending dies, end-finishing tooling and a Huth DVD, everything you need to start bending pipes for thousands of applications.
• Features
• Built-In Expander – The built-in heavy duty expander gives you end-finishing capabilities. Tooling for 2” to 3” included. 1” to 3” tubing on the swager end. With Huth's Accu-Sizer™ automatic bull's-eye expanding system, you'll be able to dial in precise expansions every time.
• Knee Control – Slim Knee Control Activation allows you to get closer to your work for quick, precise bending.
• What’s in the 028 Die Package?
• For 5” OD Tube Radius (1) 3” Radius Bending Die (1) 2” Radius Bending Die (1) 2 ¼” Radius Bending Die (1) 2 ½” Radius Bending Die
• (1) 3” Radius Bending Die
• (1) 2” Radius Bending Die
• For 4” OD Tube Radius (1) 2” Radius Bending Die (1) 2 ¼” Radius Bending Die
• For 3” OD Tube Radius (1) 1 ½” Radius Bending Die (1) 1 ¾” Radius Bending Die
• (1) 1 ½” Radius Bending Die
• (2) 1 ½” Back Shoes
• (2) 2” Back Shoes
• (2) 3” Back Shoes
• (1) 1½” Half Shoe
• (1) 2” Half Shoe
• (1) 2½” Doming Die
• (1) 1½” Swage Die
• (1) 1½” Collet Set
• (1) 2” Collet Set
• (1) Male Ball Joint Tooling (1¾”)
• (1) Male Ball Joint Tooling (2”)
• (1) Female Ball Joint Tooling (1¾” – 2”)
• (1) Female Ball Joint Tooling (2¼” – 2½”)
• (1) Arbor (13/8” – 1¾”)
• (1) Arbor (1¾” – 4”)
• (1) Segment Set (1½” – 1¾” Solid Surface)
• (1) Segment Set (1¾” – 21/8”)
• (1) Segment Set (21/8” – 2½”)
• (1) Segment Set (2½” – 3”)
• (1) Flaring/Flanging Tool (1½” – 3½”)
• (30) Die Pins
• (1) Die Holder
• (1) O-Ring Assortment Set
• Other Features
• Easy to use knee pad control
• Complete manual control
• 58,000 lbs of tube bending power
• Agricultural Cylinders
• Flat tool tray
• Bending die retainer
• Heavy-duty swager/expander
• Rugged I-Beam construction
• Exclusive safety-guard package
• Front swivel casters w/o brakes
• Options
• Other voltages and 50Hz available
• Additional Tooling available

Specifications

• Manufacturer: Huth
• SKU: HB10 (1PH)
• Shipping Method: LTL Freight
• Weight: 1,445 lb
• Dimensions: 77 × 33 × 52 in
