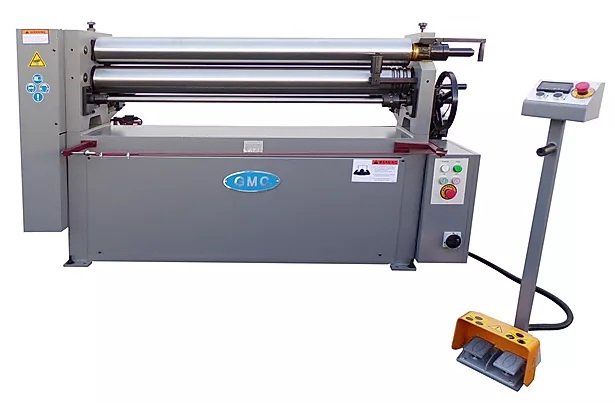

GMC Machinery 6′ x 10 Gauge Powered Heavy-Duty Bending Roll PBR-0610E

GMC Machinery 6′ x 10 Gauge Powered Heavy-Duty Bending Roll PBR-0610E is a GMC Machinery product in the Roll Benders collection.

Product Details

• Powered up/down with push button & display
• Capacity Mild Steel: 6'8" x 10 Ga
• Capacity Stainless Steel: 6'8” x 14 Ga
• Rolls Speed: 20 ft/min
• Features
• ISO 9001 certified
• Taiwan machines
• All (3) rolls are hardened rolls, up to 50-52 HRC
• 3-rollers are driven to perform high accuracy
• Adjustable cone attachment included
• 3/8”, ½” and 5/8” grooves on rollers
• One wheel one-side operated for bending roll
• One wheel one-site operated for pinch roll (E model is powered)
• Heavy duty casting frame
• Heavy duty all steel welded construction
• 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
• Quiet running operation
• Easy swing-out top roller
• Safety line all around the machine for emergency stop
• All rolls run forward and reverse
• Safety type forward/reverse foot pedal
• Power source 220V, (optional: 440V, 3 phase)
• Standard Equipment
• Adjustable cone attachment
• All (3) hardened rolls
• Removable safety foot pedal
• Operation & parts manual
• E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
• Specifications
• Roll Dia.: 5”
• Min Bending Dia.: 6-3/4"
• Pre-bend: 0.12”
• Rolls Opening: 1/2”
• Main Motor: 4 HP 3-Phase
• Weight: 3,850 lbs
• Overall Dimensions: 106 x 33 x 52

Specifications

• Manufacturer: GMC Machinery
• SKU: PBR-0610E
• Shipping Method: LTL Freight
• Weight: 3,850 lb
• Dimensions: 106 × 33 × 52 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
