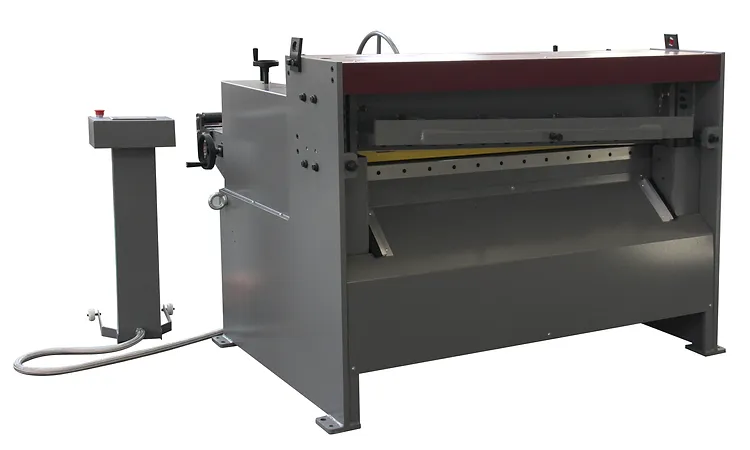

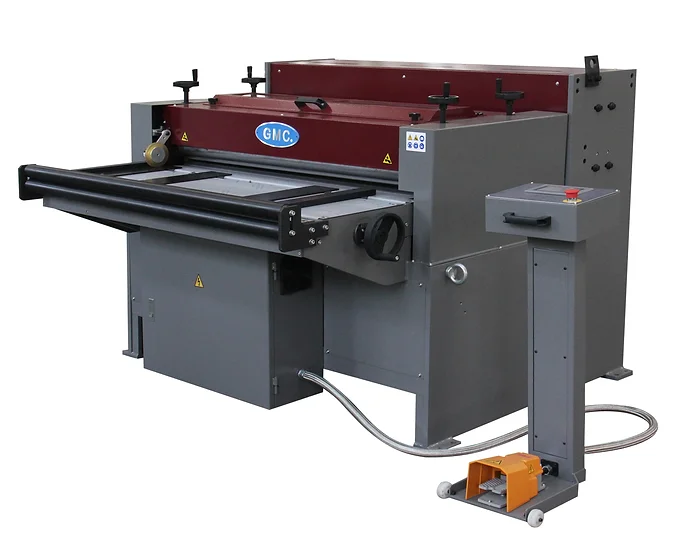

GMC Machinery 48” x 16Ga 220V Single Phase Gang Type Metal Powered Slitter with Programmable Cut to Length PS-4816GT

GMC Machinery 48” x 16Ga 220V Single Phase Gang Type Metal Powered Slitter with Programmable Cut to Length PS-4816GT is a GMC Machinery product in the Metal Forming & Shaping collection.

Product Details

• Shearing blade length: 50”
• Infeed/outfeed table height: 32”
• Slitting feed speed: 57 fpm
• Shearing stroke: 35
• Description
• The GMC PS-4816GT 48” x 16 Gauge Gange Type Metal Powered Slitter with NC programmable cut to length features a 220V Single Phase motor and a 5” touch screen.
• Features
• ISO 9001 certified
• American design and Taiwan quality machine
• Slit and cut to length in one unit
• NC programmable cutting length, 100 job memory feature
• Single cycle mode-manual shearing with foot pedal when programmed length is reach for each cut
• Auto cycle mode-shearing will auto cycle the programmed cut lengths
• Easy removal of slitting blades for cut to length operations without slitting
• Feed to sheet metal from the manual decoiler to cut to length without slitting blades

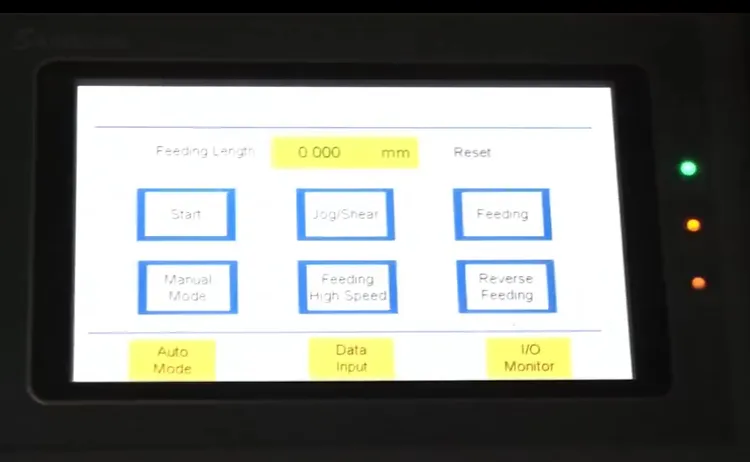

• 5” Omron touch screen
• 3-1/8” diameter shafts mounted in precision ball sealed bearings
• Slitting blades are dual edged
• Safety type foot pedal control
• Standard Equipment
• Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
• Full length finger guard
• Removable safety foot pedal control
• One set of upper & lower shearing blades
• Specifications
• Slitting and Shearing Capacities Mild Steel (hot roll), tensile 60,000 psi: 48” x 16Ga Stainless Steel (cold roll), tensile 85,000 psi: 48” x 20Ga Soft Aluminum, tensile 28,000 psi: 48” x 12Ga Min Thickness: 30Ga Max Slitting Length: 20ft, NC Programmable
• Mild Steel (hot roll), tensile 60,000 psi: 48” x 16Ga
• Stainless Steel (cold roll), tensile 85,000 psi: 48” x 20Ga
• Soft Aluminum, tensile 28,000 psi: 48” x 12Ga
• Min Thickness: 30Ga
• Max Slitting Length: 20ft, NC Programmable
• Shearing blade rake angle: 2°
• Slitting blades: 6 pairs
• Slitting Capacities 16Ga Mild Steel: 1 cut / 2 strips 18Ga Mild Steel: 2 cuts / 3 strips 20Ga Mild Steel: 3 cuts / 4 strips 22Ga-24Ga Mild Steel: 4 cuts / 5 strips 26Ga-30Ga Mild Steel: 6 cuts / 7 strips
• 16Ga Mild Steel: 1 cut / 2 strips
• 18Ga Mild Steel: 2 cuts / 3 strips
• 20Ga Mild Steel: 3 cuts / 4 strips
• 22Ga-24Ga Mild Steel: 4 cuts / 5 strips
• 26Ga-30Ga Mild Steel: 6 cuts / 7 strips
• Slitting motor: 220V Single Phase 3HP 25A
• Shearing motor: 220V Single Phase 3HP 25A
• Machine Dims: 68” x 63” x 48”
• Approx Weight: 2,850 lbs
• Optional Add-Ons
• 10ft Outfeed table
• 10ft Infeed table
• Decoiler, 48” wide x 20” coil ID, 2Ton max coil weight
• Extra set of slitter blades
• Extra set of shear blades

Specifications

• Manufacturer: GMC Machinery
• SKU: PS-4816GT
• Shipping Method: LTL Freight
• Weight: 2,950 lb
• Dimensions: 70 × 65 × 51 in
