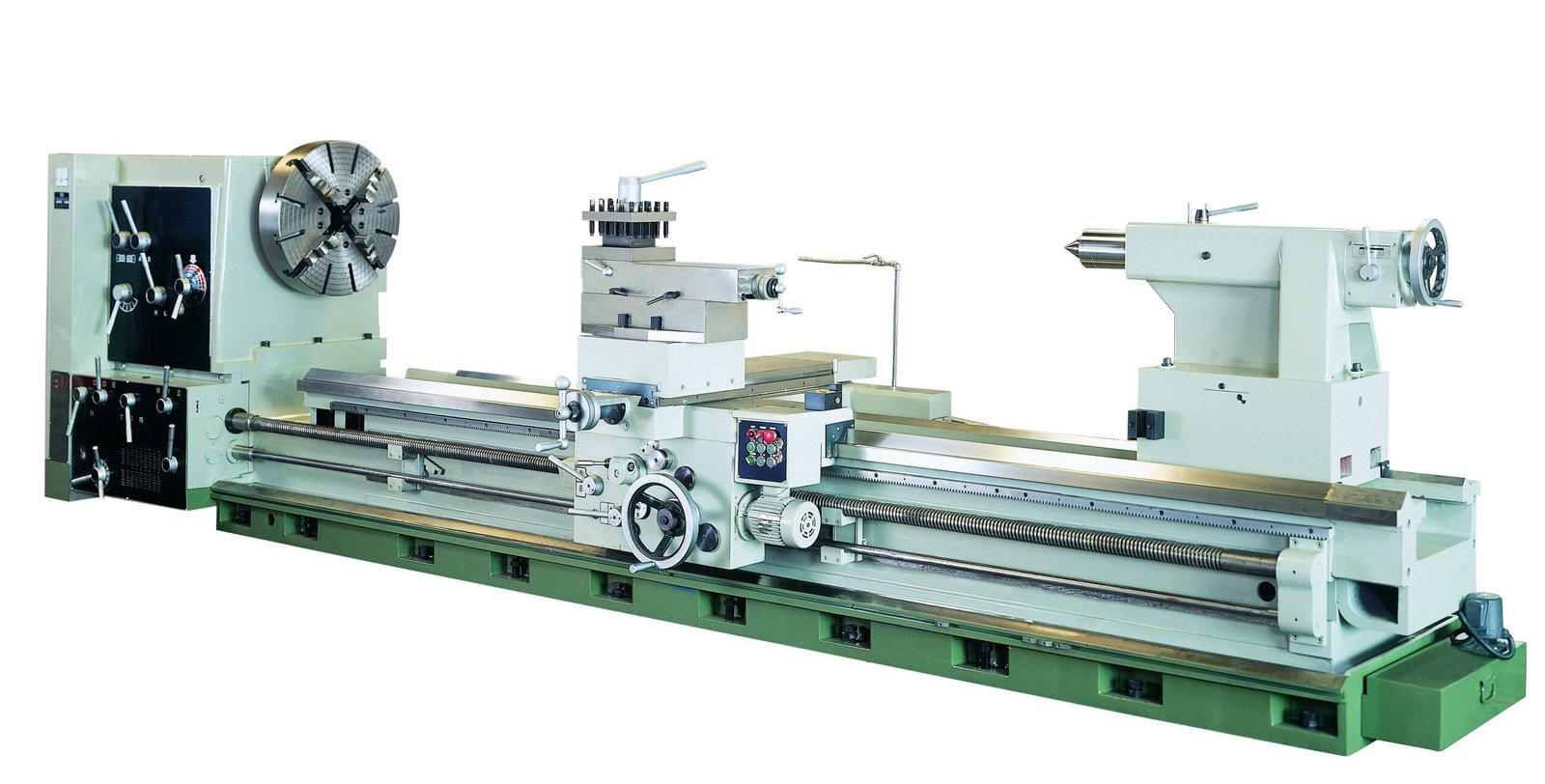

GMC Machinery 220V Three Phase 47” x 240” 12-Speed Heavy-Duty Oil Country Lathe OCL-47240G

GMC Machinery 220V Three Phase 47” x 240” 12-Speed Heavy-Duty Oil Country Lathe OCL-47240G is a GMC Machinery product in the Lathes collection.

Product Details

• Max swing over cross slide: 33½”
• Width of bed: 27¼”
• Spindle bore: 12-1/8”
• Spindle speeds: 4-420 rpm. 12 steps
• Features
• ISO 9001 certified
• Super large spindle bore 12-1/8”
• Rapid traverse on carriage longitudinal, cross slide and top slide
• Automatic feeding on carriage longitudinal, cross slide
• 2 speed tailstock
• Solid cast iron machine base
• Heavy duty guideway width 27¼”
• Heavy duty main motor 50HP
• 12 spindle speeds from 4-420 rpm
• Spindle is balanced, hardened, and precision ground
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system is headstock and feed box
• Standard Equipment
• 4-way tools post
• Work light
• Coolant system
• (1) dead center for tailstock
• Thread chasing dial
• Tool box
• Specifications
• Max swing over bed: 47”
• Distance between centers: 240”
• Spindle nose: A 2-20
• Max weight of workpiece: 9,000 lbs
• Longitudinal auto feeds: 0.004”-0.055” IPR, 40 kinds
• Cross slide auto feeds: 0.004”-0.022” IPR, 40 kinds
• Inch threads: 59 – 1 TPI, 35 kinds
• Metric threads: 0.5 – 18mm, 34 kinds
• Max travel of top slide: 13¾”
• Longitudinal rapid traverse: 12 fpm
• Cross rapid traverse: 6 fpm
• Top slide rapid traverse: 3 fpm
• Diameter of tailstock quill: 5”
• Max travel of tailstock quill: 12”
• Taper of tailstock quill center: MT6
• Rapid traverse motor: 220V Three Phase ½HP
• Lubrication pump motor: 220V Three Phase 1/8HP
• Coolant pump motor: 220V Three Phase 1/8HP
• Electrical Requirements: 220V Three Phase 50HP
• Machine Dims: 335” x 79” x 82”
• Approx Weight: 31,580 lbs
• Optional Add-Ons
• Large steady rest 3” to 10½”
• Large steady rest 6” to 18½”
• Large steady rest 10” to 23”
• Large steady rest 21” to 36”
• Follow rest 4”-10”
• Heavy duty 30” 4-jaw chuck
• Roller live center for tailstock
• Taper turning attachment
• Motorized top slide
• Quick change toolpost
• Grinder
• Machine centers from 390” to 630”
• **This model does not work with a phase converter**

Specifications

• Manufacturer: GMC Machinery
• SKU: OCL-47240G
• Shipping Method: Flatbed
• Weight: 31,800 lb
• Dimensions: 340 × 85 × 90 in
• Country of Origin: Taiwan
