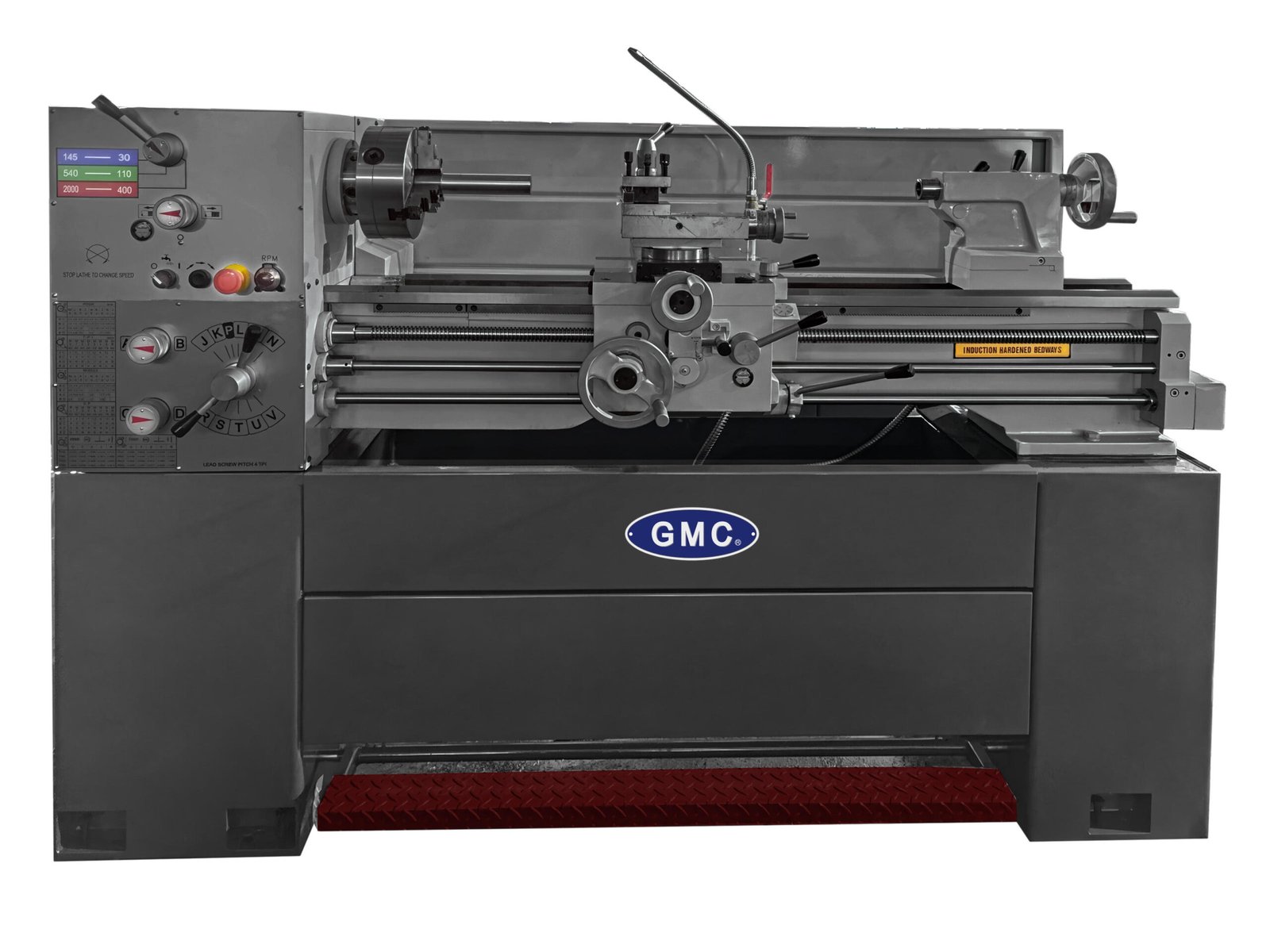

GMC Machinery 220V Single Phase 14” x 40” Variable High Speed Precision Tool Room Metal Lathe with DRO GML-1440VT

GMC Machinery 220V Single Phase 14” x 40” Variable High Speed Precision Tool Room Metal Lathe with DRO GML-1440VT is a GMC Machinery product in the Lathes collection.

Product Details

• Max length of cutting: 34”
• Max swing over gap: 20¼”
• Taper of spindle center: MT5
• Spindle speeds: 30-2,000 rpm (variable)
• Features
• Made in Taiwan by top manufacturer with very high level of quality
• ISO 9001 certified
• Machine bed is made of high tensile cast iron FC25, Meehanite casting
• With free CARMAR DRO installed
• Full geared-head precision engine lathe with foot brake
• Quick-change gearbox with fast and easy threading set up
• Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
• Heavy duty spindle D1-4
• Heavy duty guideway width 7½”
• Variable spindle speed
• 32 kinds of inch and metric threads
• Spindle is balanced, hardened, and precision ground
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feedbox
• Standard Equipment
• Free CARMAR DRO installed
• 6” 3-jaw chuck with set reversible jaws
• 10” face plate
• 4” steady rest with roller jaws
• 2” follow rest with roller jaws
• 4-position carriage stop
• Foot brake
• Coolant system
• LED work light
• Removable gap
• 4-way tools post
• Full length splash guard
• (1) dead center and (1) reducing sleeve
• Thread chasing dial
• Tool box with leveling pads
• Specifications
• Max swing over bed: 14”
• Max length of workpiece: 40”
• Max swing over cross slide: 8-5/8”
• Width of bed: 7½”
• Spindle bore: 1½” D1-4
• Longitudinal feeds: 0.0016-0.00368IPR, 40 kinds
• Cross fees: 0.0008-0.00122IPR, 40 kinds
• Inch threads: 4-56 TPI, 32 kinds
• Metric threads: 0.4-7.0mm, 32 kinds
• Max travel of top slide: 3½”
• Max travel of cross slide: 6-5/16”
• Longitudinal leadscrew: Dia 1” / 4TPI
• Diameter of tailstock quill: 1-9/16”
• Max travel of tailstock quill: 3½”
• Taper of tailstock quill center: MT3
• Oil for headstock/gear box/apron: #30 weight machine oil, TEXACO regal R&O/100
• Coolant pump: 220V Single Phase 1/16HP water based coolant
• Electrical Requirements: 220V Single Phase 3HP 10A
• Machine Dims: 73” x 35” x 59”
• Approx Weight: 1,930 lbs
• Optional Add-Ons
• 5-C hand lever type collet closer
• 33 pc 5C collet set from 1/16” to 1-1/16” by 32ndth
• 6pc ALORIS type quick change toolpost# 3900-5920 BXA
• Taper attachment
• Live Center MT3
• ½” drill chuck
• ½” drill chuck arbor
• Chuck guard
• Travel guard for toolpost
• Lathe Package: 5pc indexable carbide turning set, ½” drill chuck, chuck arbor, and 29pc titanium drill bit set
• **This model does not work with a phase converter**

Specifications

• Manufacturer: GMC Machinery
• SKU: GML-1440VT
• Shipping Method: LTL Freight
• Weight: 2,200 lb
• Dimensions: 77 × 30 × 61 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
