GMC Machinery 10’ x 10 Ga NC Hydraulic Box & Pan Brake with 48” Table Back Gauge HBB-1010NC

GMC Machinery 10’ x 10 Ga NC Hydraulic Box & Pan Brake with 48” Table Back Gauge HBB-1010NC is a GMC Machinery product in the Sheet Metal Brakes collection.

Product Details

• Mild Steel Capacity: 10 Ga.
• Stainless Steel Capacity: 14 Ga.
• Bending length capacity: 10'
• Max. Box Depth: 6"
• Standard Features
• ISO 9001 certified
• Meet OSHA and CE safety standard
• Japanese Omron 11" touch screen
• 48” NC table back gauge with fingers
• Max. 16 bends per program
• Up to 100 Program Storage
• Programmable Angle/ Angle Correct
• NC ram height control for open hemming
• Hardened fingers and table
• Germany Rexroth hydraulic system
• Yaskawa Servo motors and Drives
• Schneider electrical components
• All steel construction for maximum rigidity
• Hydraulic logic system centrally located and quiet
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• Capable of hemming up to 22 gauge
• One year industrial warranty for parts
• Specifications
• Capacity:
• Mild Steel: 10 Ga.
• Stainless Steel: 14 Ga.

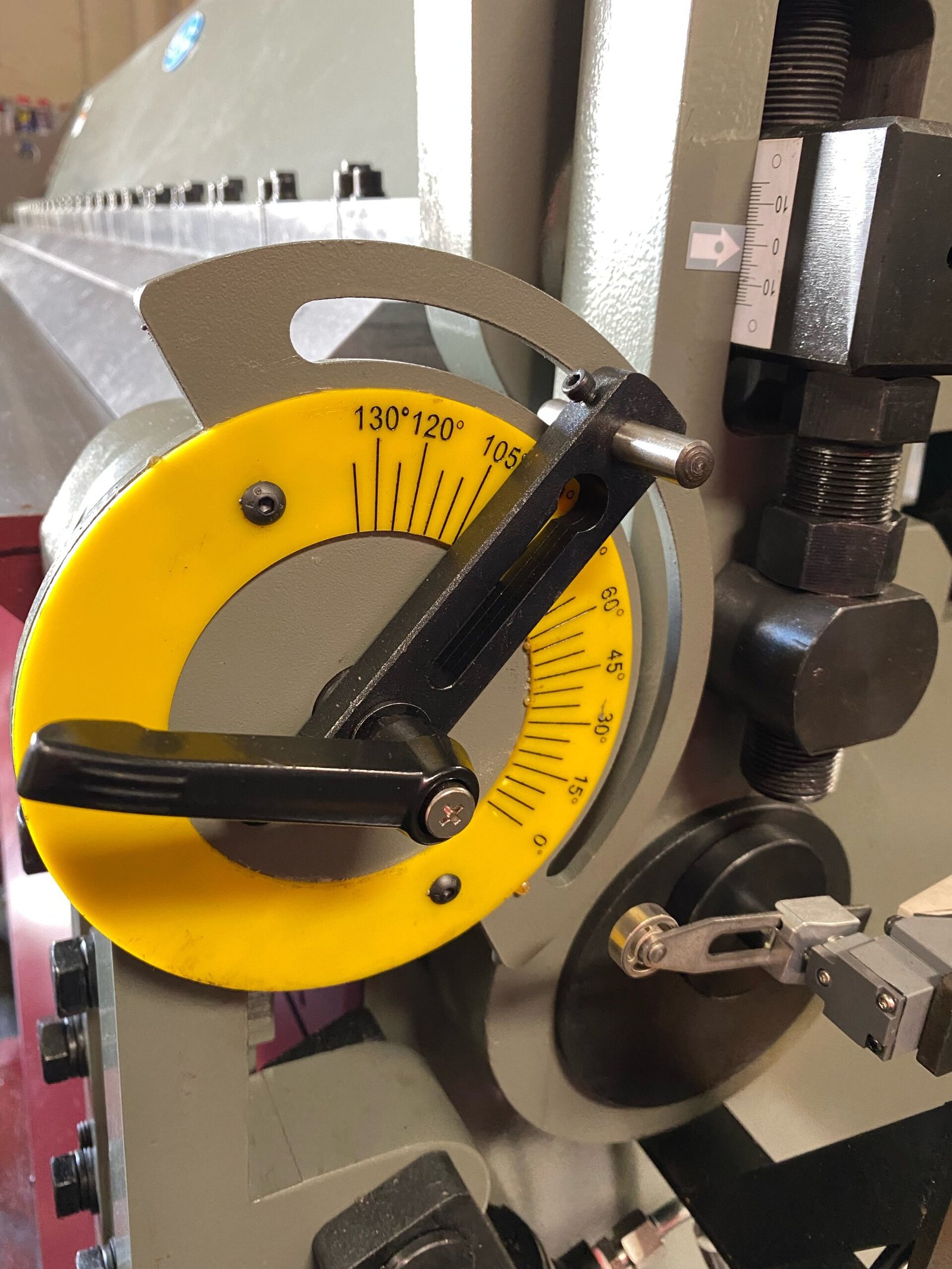

• Bend Angle Degree, programmable: 135 degrees
• Large Beam Opening/Clamping Opening: 3"
• Beam front/back adjustment: 1"
• Min. Reverse Bend: 1"
• Max. Table Back Gauge Distance: 48-3/8"
• Min. Table Back Gauge Distance: 1/4"
• Back Gauge Repeatability: 0.0039
• Back Gauge Table Height: 35-3/4"
• Assorted fingers: 3"/ 4"/ 5"/ 6"
• Main Motor: 10 HP 220V 3-Phase
• Servo Motor for back gauge: 1 HP
• Hydraulic Oil Tank Capacity: 32 Gal. Shell #68
• Machine Weight: 11,550 lbs.
• Machine Dimensions: 175" x 93" x 76"
• Options

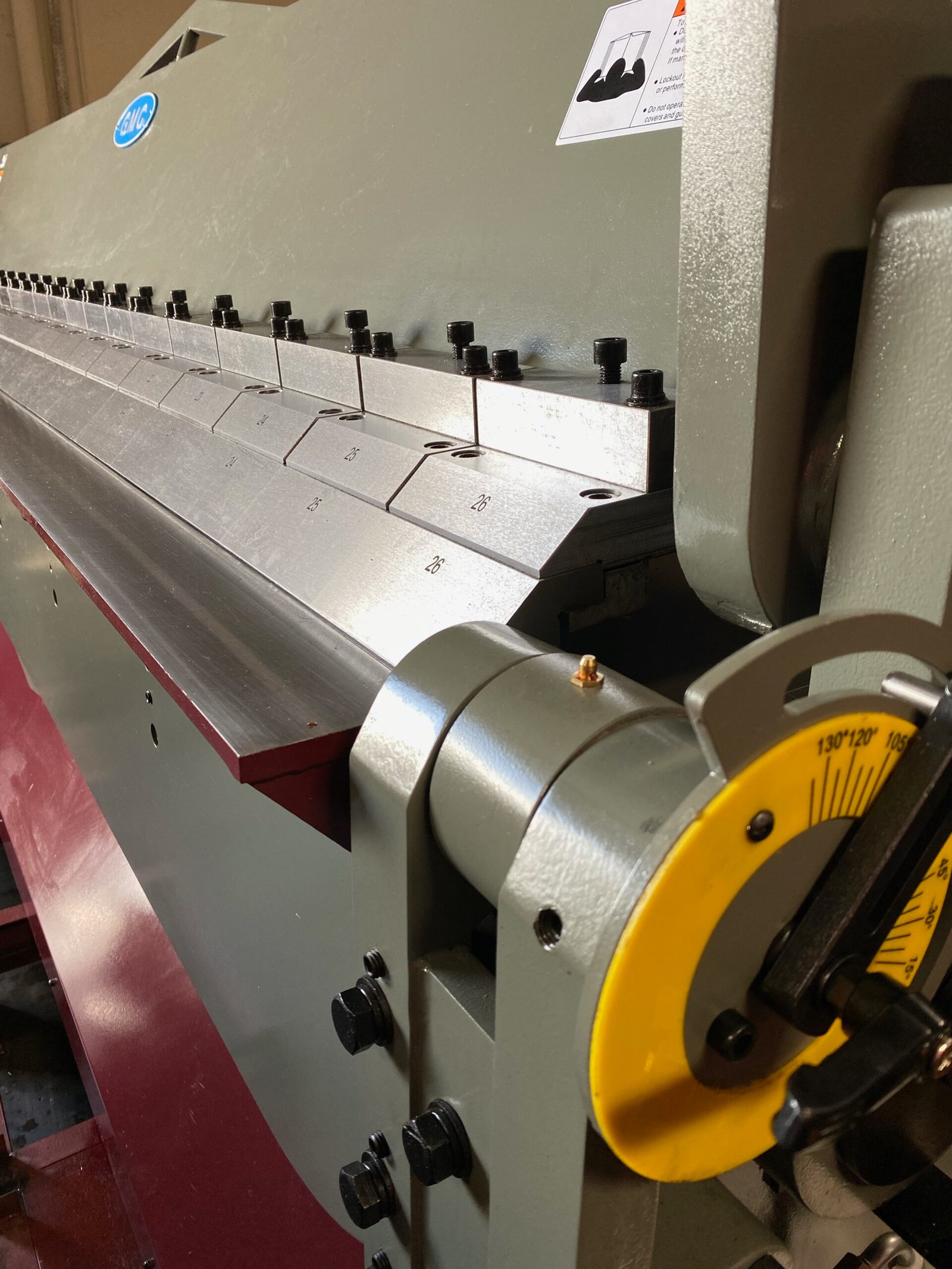

• One piece 10’ straight finger
• *This model does not work with a phase converter*

Specifications

• Manufacturer: GMC Machinery
• SKU: HBB-1010NC
• Shipping Method: LTL Freight
• Weight: 11,850 lb
• Dimensions: 163 × 85 × 78 in
• Warranty: 1 Year (Parts)
