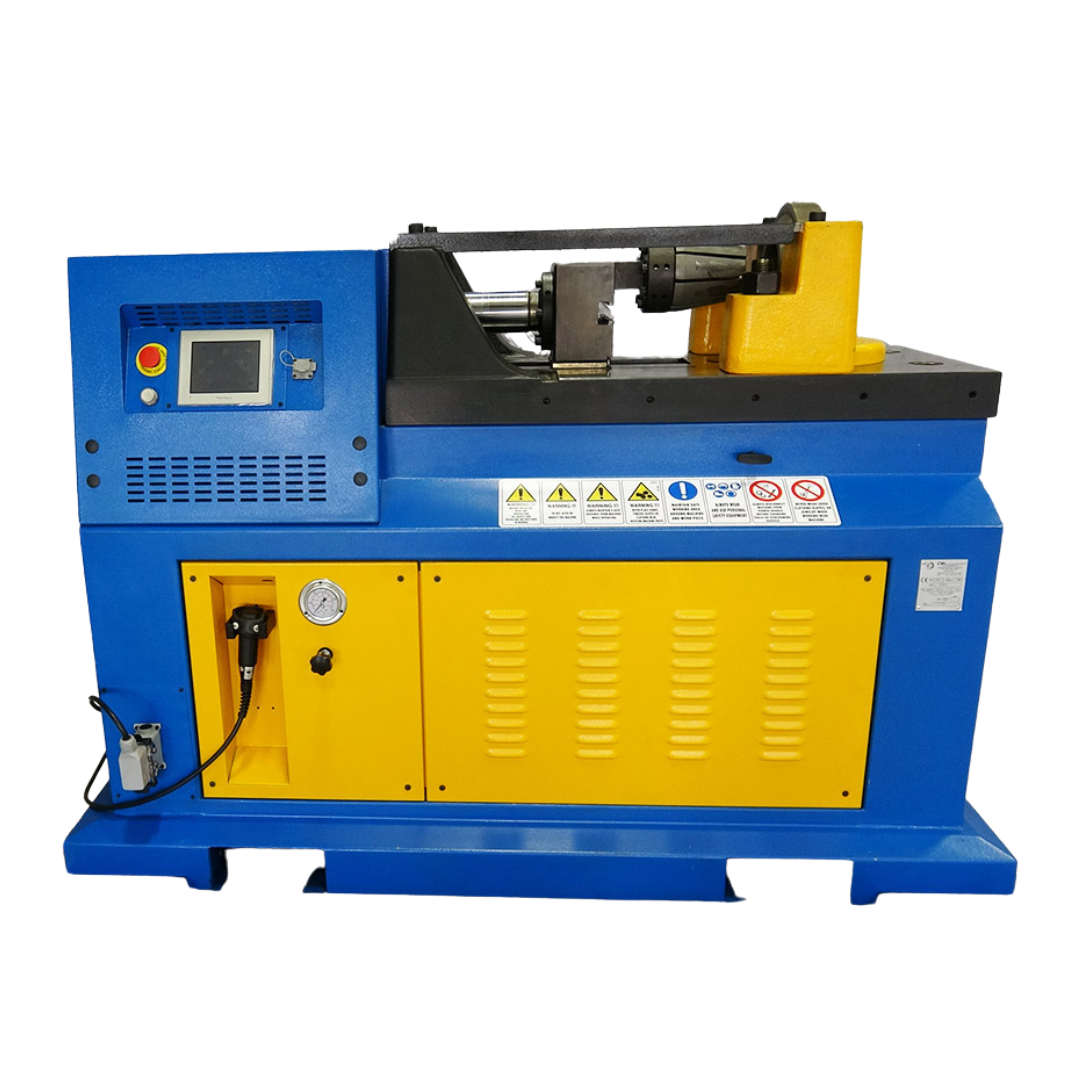

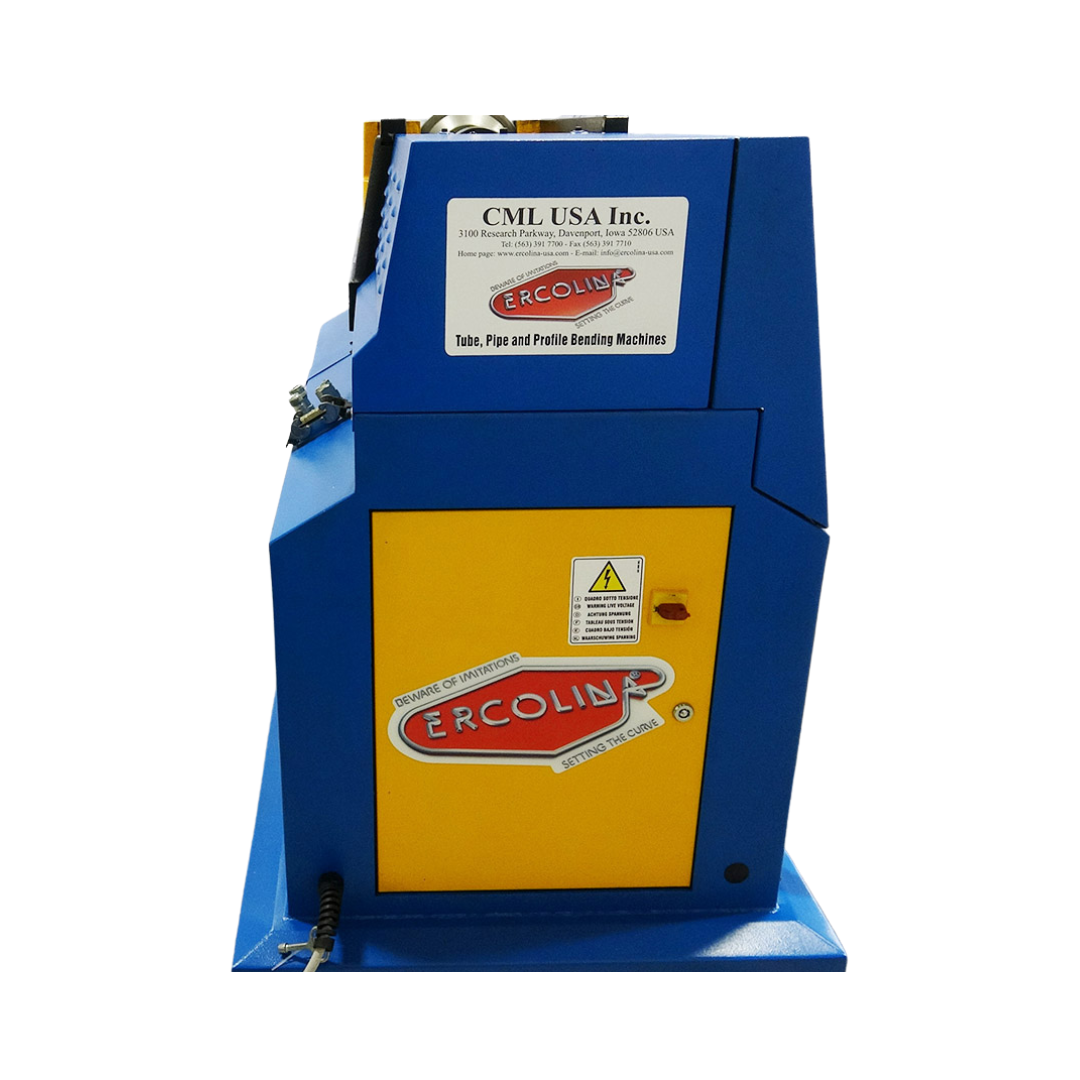

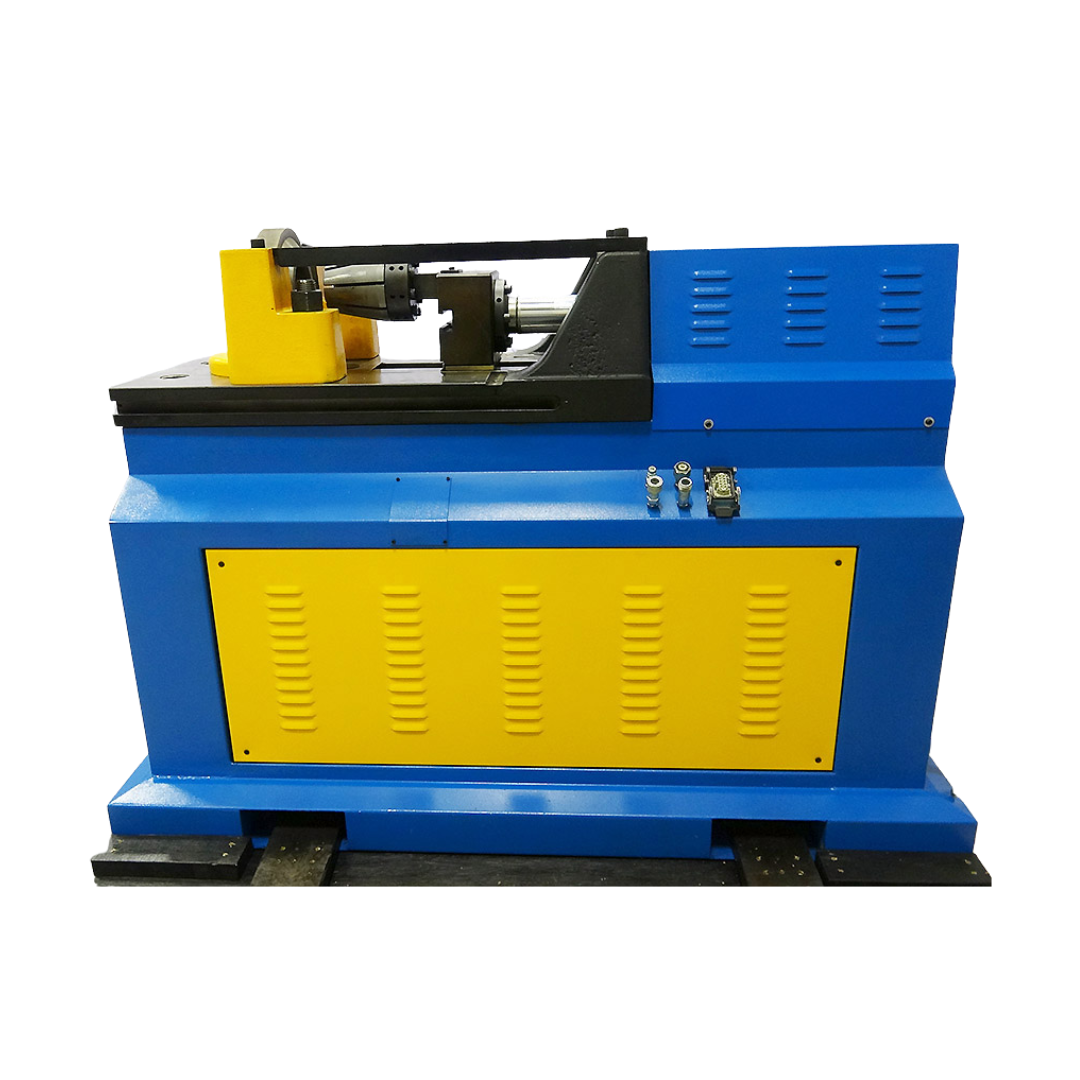

Ercolina 8HP 480V Three Phase 60 Ton Era Horizontal Hydraulic Press EP50H1

Ercolina 8HP 480V Three Phase 60 Ton Era Horizontal Hydraulic Press EP50H1 is a Ercolina product in the Press Brakes collection.

Product Details

• Hydraulic Force: 60 tons
• Tube Diameter Max. Expansion / Reduction: 3-1/2” – 4-1/2” x 0.120
• Folding Capacity – Steel Flat Bar: 7-7/8” x 3/4”
• Working Speed: Variable programmable
• Description
• Ercolina’s EP60 (60 ton hydraulic force) Era Press metalworking machine is a programmable tube and pipe swaging machine and metalworking press.
• Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.
• Features
• Expands and reduces tube and pipe ends
• Performs metalworking press operations
• Tooling available for tube flaring & flanging
• Square and rectangular tooling available
• Programmable touchpad control with backlit LCD display
• Heavy duty structure and rigid components
• Adjustable working speed and hydraulic force
• Quick change modular tooling
• Remote pendent with low voltage controls
• Programmable cylinder positioning
• Hydraulic material clamping system
• Hand-held remote control certified class three safety
• Unlimited program storage with USB
• Punch or finger-style swage tooling
• Energy saving motor shuts off when not in use
• Swage square and rectangular tube
• LCD touch screen control
• Utilizes punch or finger-style swage tooling
• Standard Equipment
• Tube Expansion Tie Bar
• Prism Holder
• Specifications
• Square Tube: 2-1/2”
• Programming: LCD touch screen
• Horizontal Press: Yes
• Maximum Stroke of Cylinder: 11-1/2”
• Maximum Swage Depth*: 8”
• Voltage Requirement: 480V 3ph
• Motor: 8 HP 50-60Hz
• Motor Speed: 3650 RPM
• Dimensions (L x W x H): 48” x 26” x 44”
• Shipping Weight: 2,300 lbs.
• Options
• Side shift feature reduces tooling changeover
• *Swage depth dependent on finger-style tools or standard reduction style – must be specified at time of order.

Specifications

• Manufacturer: Ercolina
• SKU: EP50H1
• Shipping Method: LTL Freight
• Weight: 2,400 lb
• Dimensions: 53 × 31 × 49 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
