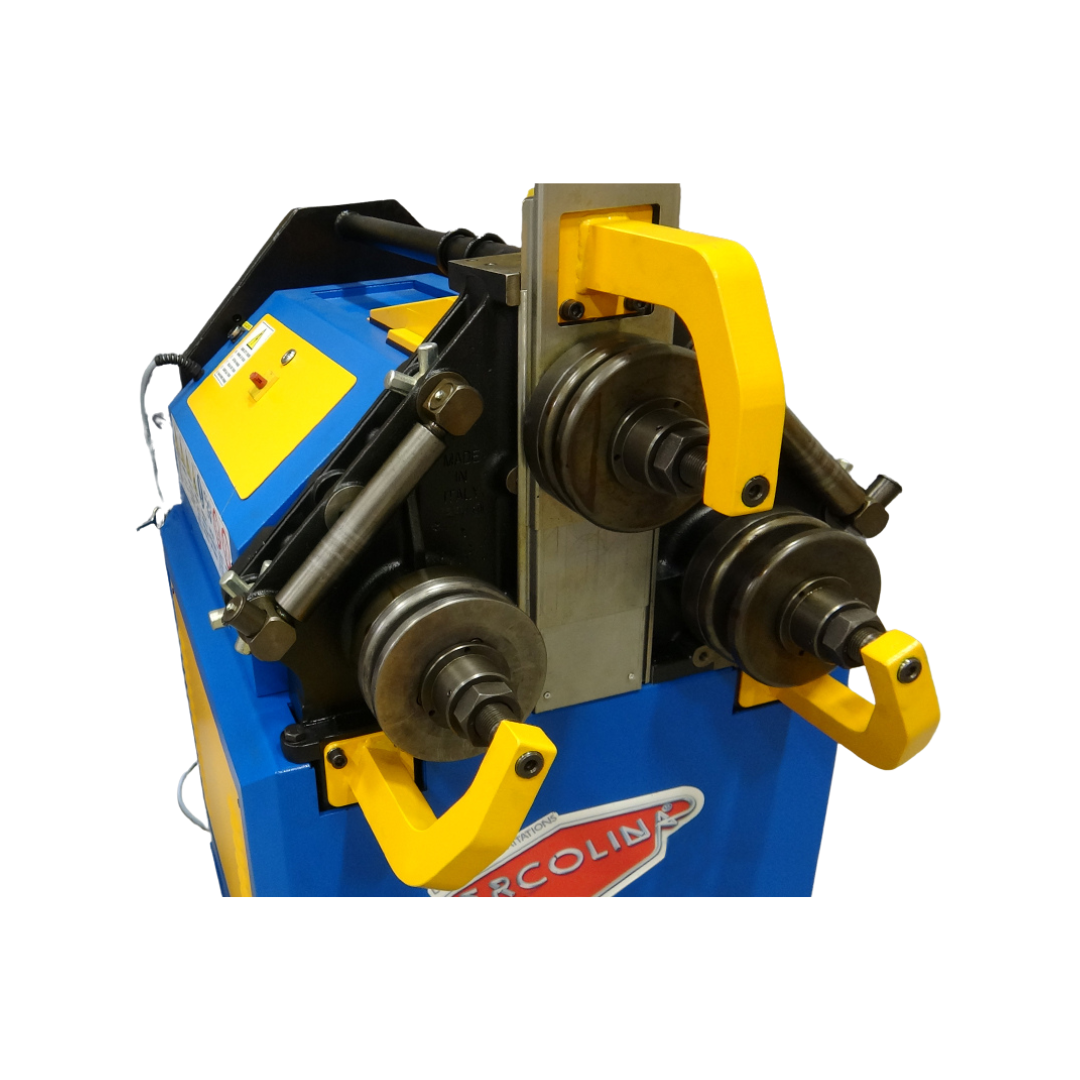

Ercolina 480V Three Phase Hydraulic Positioning Angle Roll Section Bender with 3″ Pipe Capacity and Universal Tooling CE60H3

Ercolina 480V Three Phase Hydraulic Positioning Angle Roll Section Bender with 3″ Pipe Capacity and Universal Tooling CE60H3 is a Ercolina product in the Roll Benders collection.

Product Details

• Pipe Capacity (Max.): 3″ Sch. 10
• Angle Capacity (Max.): 2-1/2″ x 2-1/2″ x 3/8”
• Tube Capacity (Max.): 3-1/2” – 0.120 wall
• Shaft Speed: 9 RPM
• Description
• Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning.
• Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.
• Features
• 50mm roll shaft diameter
• Maximum pipe capacity 3″ Sch. 10
• Maximum angle capacity 2-1/2″ x 2-1/2″ x 3/8″
• Bending speeds 20% faster than competitive machines
• Universal tooling set included with each machine – 7″ OD
• Uses same tooling as CE50
• Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
• Heavy duty structure and rigid components for high section modulus ratings
• Reinforced engineered mainframe design proven to outperform competitive models
• Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
• Touchpad controls with digital center roll positioning
• Tie bar supports for each shaft
• Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
• Remote pendent with low voltage controls and foot pedal switch
• Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
• In-line direct drive roll shaft system 3-roll driven
• All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
• Specifications
• Capacities Pipe (Max.): 3″ Sch. 10 Angle (Max.): 2-1/2″ x 2-1/2″ x 3/8” Tube (Max.): 3-1/2” – 0.120 wall
• Pipe (Max.): 3″ Sch. 10
• Angle (Max.): 2-1/2″ x 2-1/2″ x 3/8”
• Tube (Max.): 3-1/2” – 0.120 wall
• Roll Shaft Diameter: 50 mm
• Center Roll Positioning: Hydraulic – 16.5 Tons
• Universal Tooling (Included): 7” O.D.
• Programming: NC – Touchpad
• Number of Programs: 8
• Distance between Shafts: 15”
• Operating Voltage: 480V 3ph
• Weight: 1,480 lbs.
• Dimensions (L x W x H): 48” x 29” x 52”
• Options
• Anti-twist correction system for angle iron “Leg In” applications
• Spray Bending Lubricant
• Pipe & Tube Tooling
• Large Spiral Bending Accessory
• Radius & Degree Measuring Kit
• Fabricator’s Measuring Set
• Scroll Curling Device

Specifications

• Manufacturer: Ercolina
• SKU: CE60H3 (480V)
• Shipping Method: LTL Freight
• Weight: 1,580 lb
• Dimensions: 53 × 34 × 57 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
