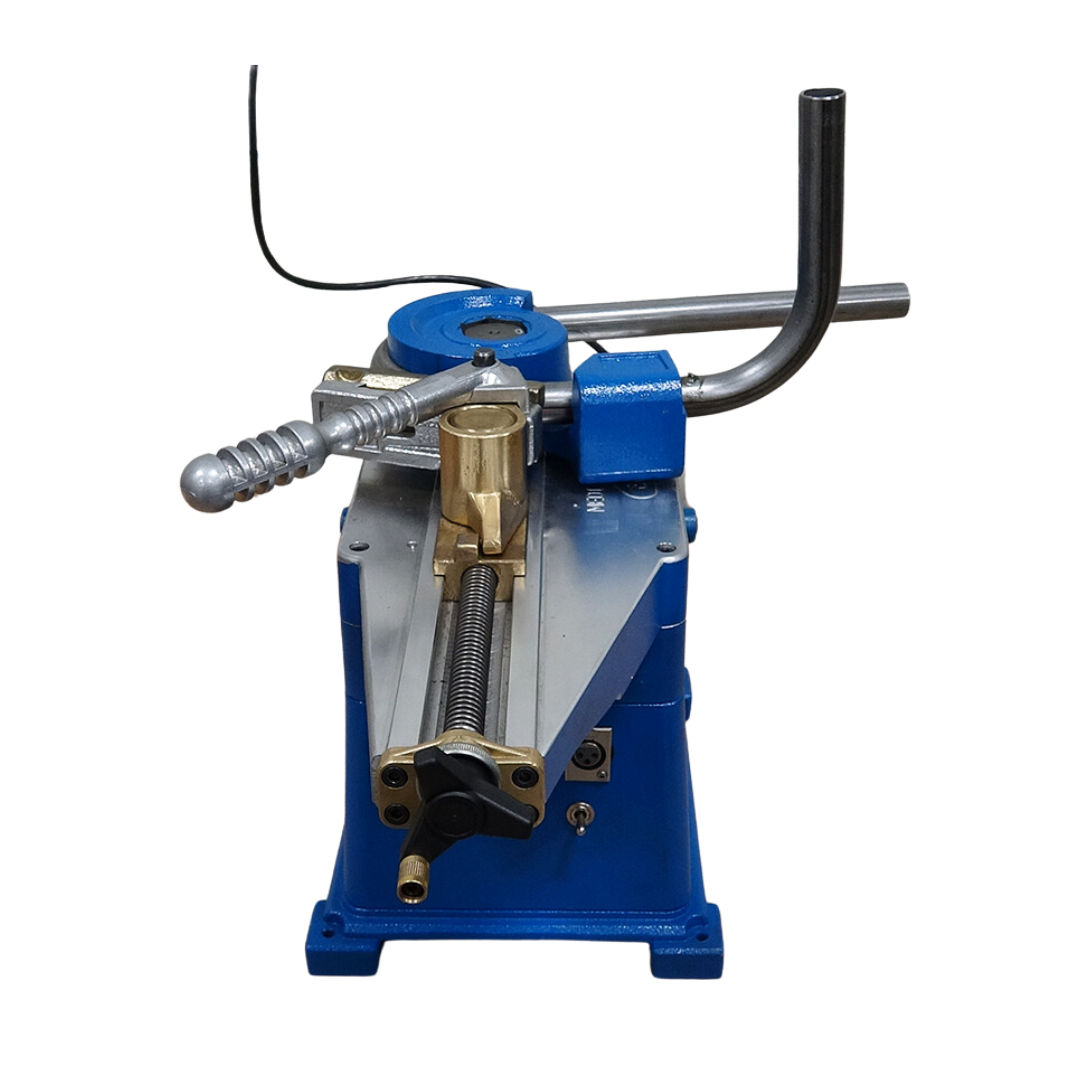

Ercolina 120V Single Phase Medi Rotary Draw Bender with 1¼” Tube Bending Capacity 070

Ercolina 120V Single Phase Medi Rotary Draw Bender with 1¼” Tube Bending Capacity 070 is a Ercolina product in the Tube & Pipe Benders collection.

Product Details

• Tube Capacity (max): 1¼”
• Pipe Capacity (max): 1” Sch. 10
• Bending Speed: 2.2 RPM
• Voltage: 120V Single Phase
• Description
• Ercolina’s portable model 070 Medi Bender is ideal for fabricators and contractors with job site bending applications.
• Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
• Features
• Portable machine ideal for fabricators and contractors with job site bending applications
• Rotary dial setting for bend angle and springback
• Quick-change tooling system with multiple radii available

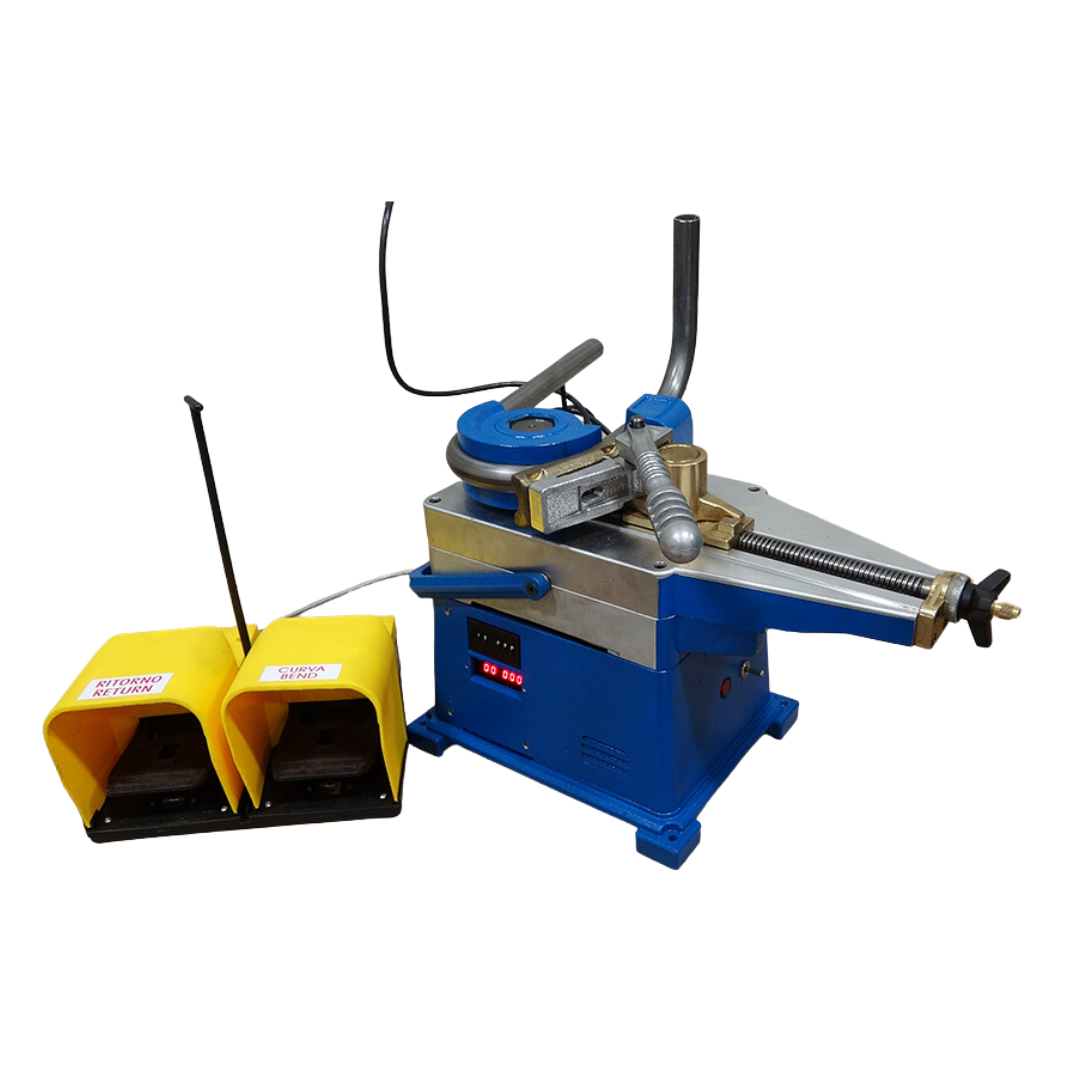

• Foot pedal control for hands-free operation
• Swing away counterbending die vise for easy material handling
• No hydraulic components
• Bend to CLR as small as 2D
• Ships with carrying case and tool kit
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications
• Specifications
• Tube Capacity (min): ¼”
• Tube Capacity (max): 1¼” (.065 wall)
• Centerline Radius (min): 2 x Ø
• Centerline Radius (max): 6⅞”
• Degree of Bend: 0-210°
• Programming: Rotary Dial with LED
• Dimensions (LxWxH): 10” x 13” x 18”
• Weight: 60 lbs
• Bending Capacities
• Pipe Max Diameter: 1.000 pipe Max Wall Thickness: Sch. 10
• Max Diameter: 1.000 pipe
• Max Wall Thickness: Sch. 10
• Mild Steel Tube Max Diameter: 1.250 Max Wall Thickness: 0.065
• Max Diameter: 1.250
• Max Wall Thickness: 0.065
• Soft Brass Max Diameter: 1.250 Max Wall Thickness: 0.120
• Max Wall Thickness: 0.120
• Stainless Steel Max Diameter: 1.125 Max Wall Thickness: 0.065
• Max Diameter: 1.125
• Hydraulic Tube Max Diameter: 1.25 Max Wall Thickness: 0.083
• Max Diameter: 1.25
• Max Wall Thickness: 0.083
• Round Solids Max Diameter: 0.7500
• Max Diameter: 0.7500
• Rectangular Solids Max Diameter: 0.375 x 1.000
• Max Diameter: 0.375 x 1.000
• Rectangular Tube Max Diameter: 0.625 x 1.000 Max Wall Thickness: 0.120
• Max Diameter: 0.625 x 1.000
• Square Tube Max Diameter: 0.750 x 0.750 Max Wall Thickness: 0.120
• Max Diameter: 0.750 x 0.750
• Options
• 220V Single Phase available
• Tri-pod Stand available as add-on

Specifications

• Manufacturer: Ercolina
• SKU: E070
• Shipping Method: Ground
• Weight: 60 lb
• Dimensions: 15 × 20 × 25 in
• Country of Origin: Italy
