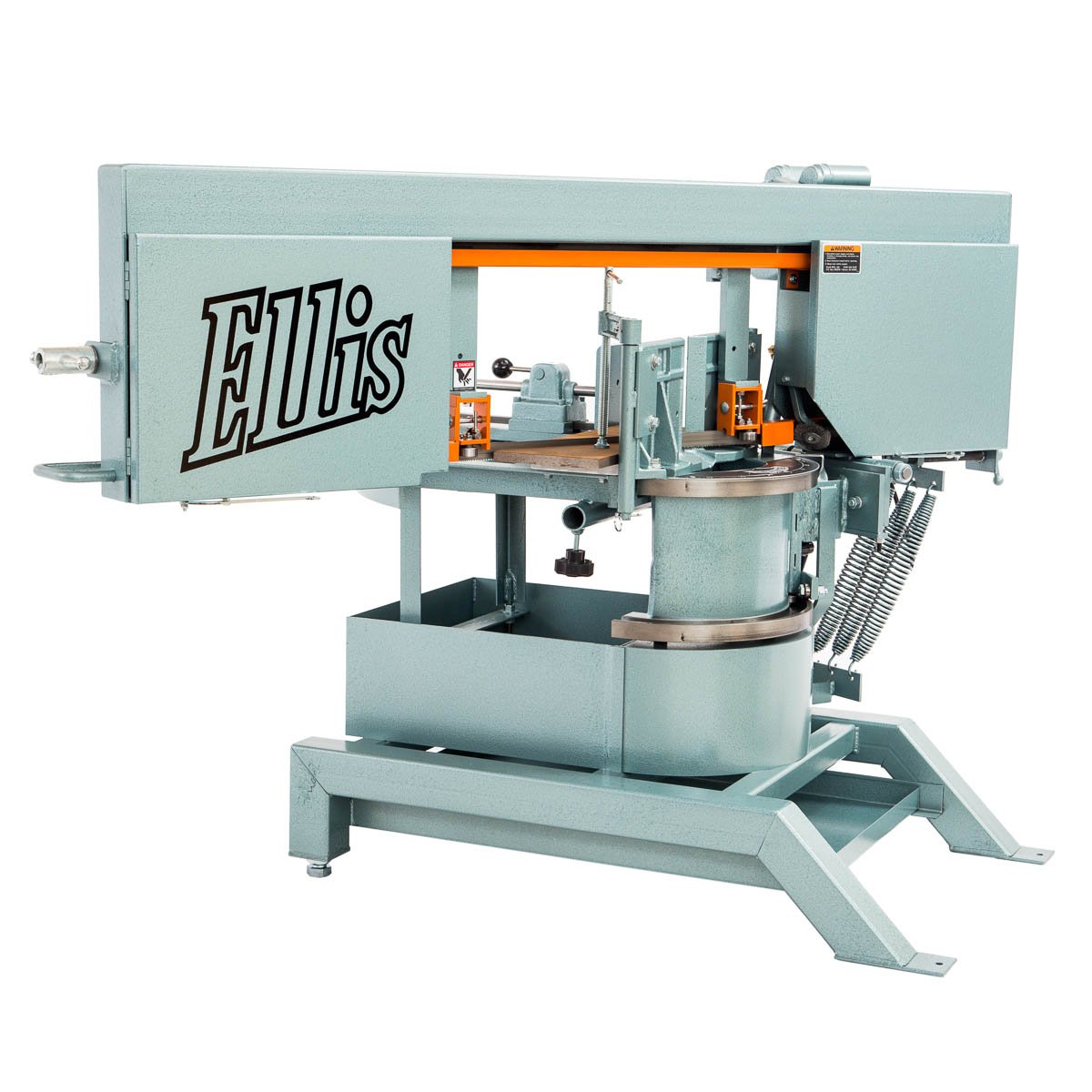

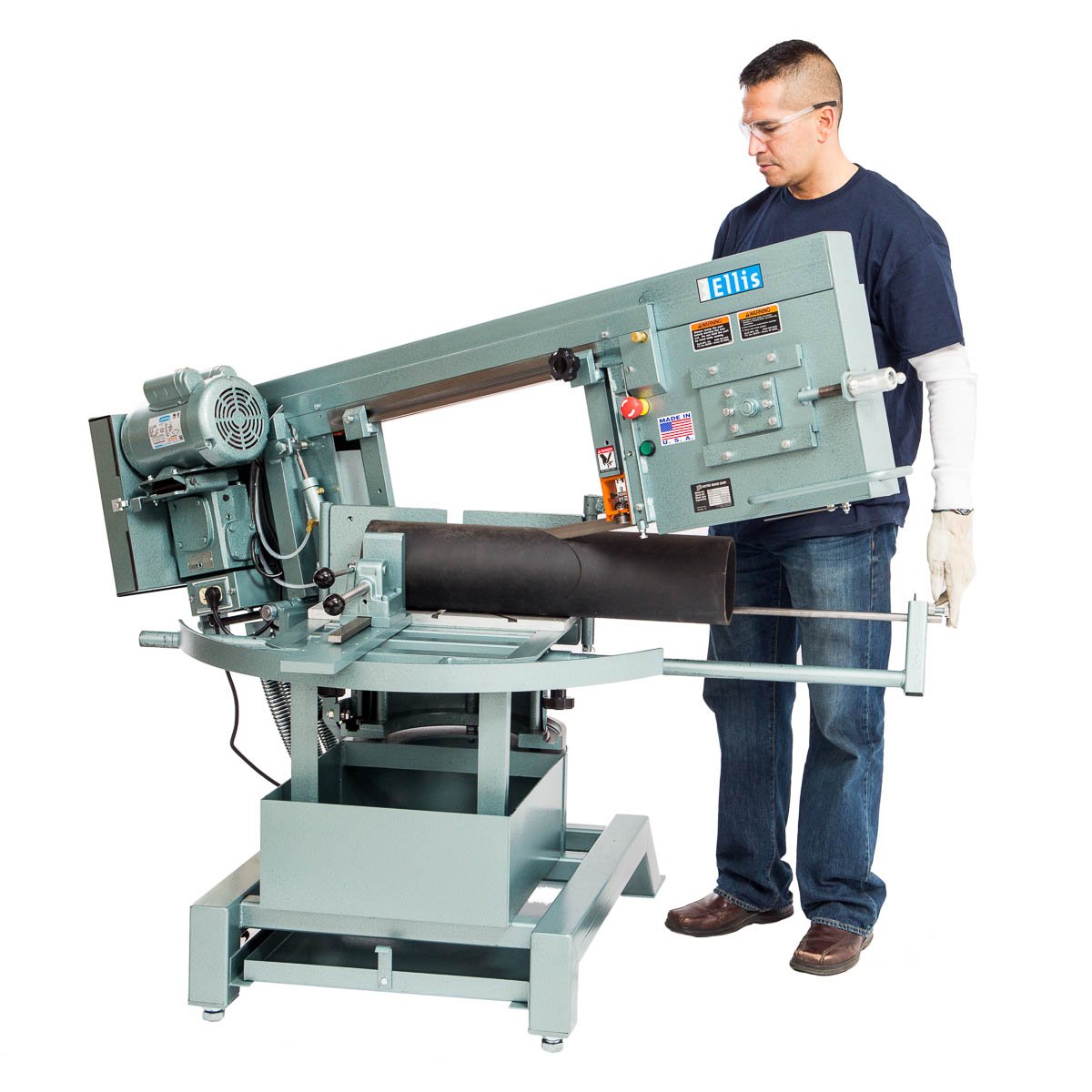

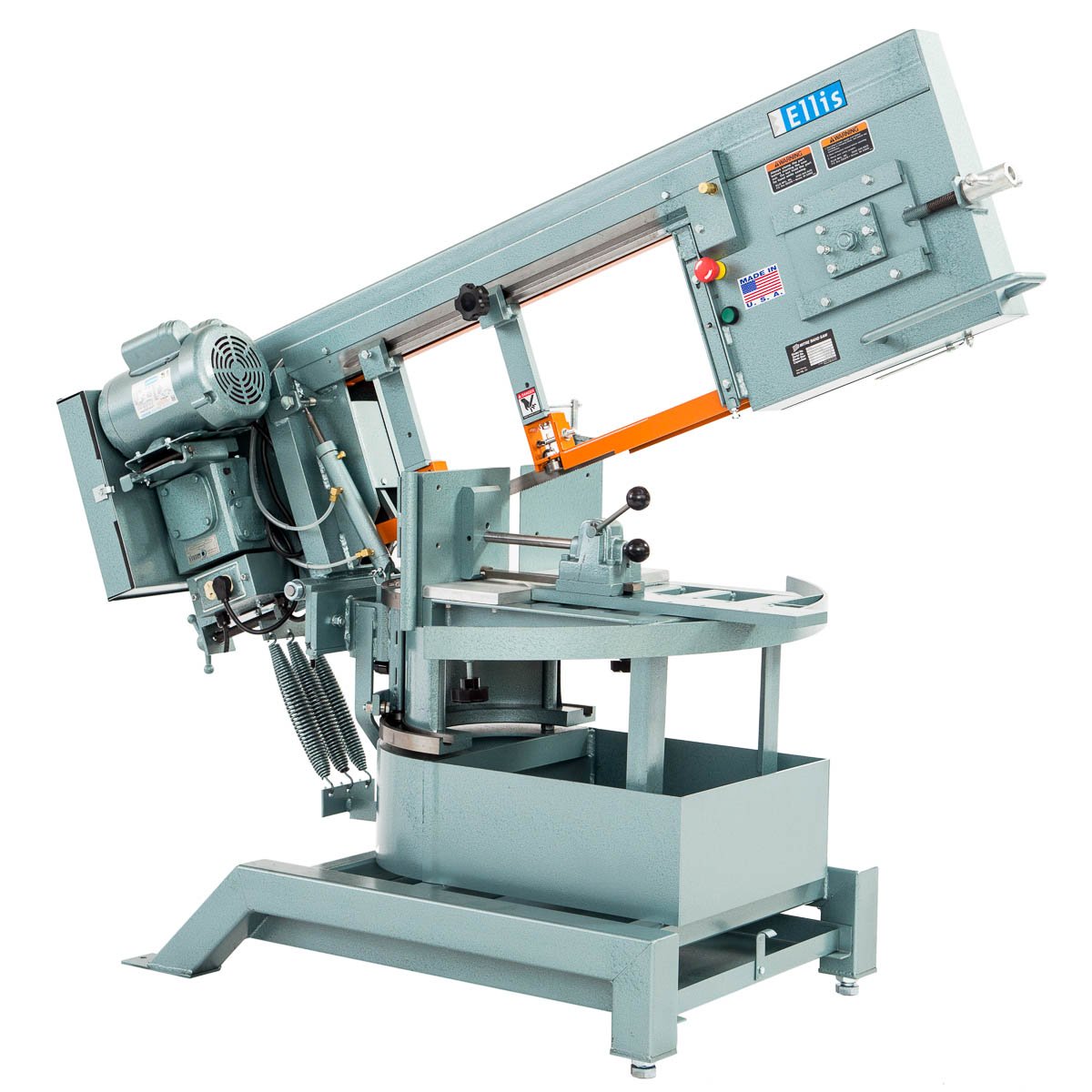

Ellis Manufacturing 220V Single Phase Mitre Band Saw 2000

Ellis Manufacturing 220V Single Phase Mitre Band Saw 2000 is a Ellis Manufacturing product in the Band Saws collection.

Product Details

• Round Capacity at 90°: 11”
• Flat Capacity at 90°: 17”
• Square Capacity at 60°: 6”
• Motor: 1-1/2 H.P. 220 Volt Single Phase
• Features
• Head of band saw moves left or right for angle cutting
• Built-in Protractor for fast and accurate selection of angles
• Stock remains in one position for all cuts
• Mitres 60° both ways
• Specifications
• Capacity: (90° & 45°) 11” Round at 90° 10” Pipe at 90° 17” Flat at 90° 11” H x 13” W at 90° 11” Round at 45° 10” Pipe at 45° 11” Flat at 45° 9” H x 11” W at 45°
• 11” Round at 90°
• 10” Pipe at 90°
• 17” Flat at 90°
• 11” H x 13” W at 90°
• 11” Round at 45°
• 10” Pipe at 45°
• 11” Flat at 45°
• 9” H x 11” W at 45°
• Capacity: (60°) “6” W x 9” H at 60° 6” Square at 60° 7” wide x 2” thick – Flat Stock at 60° 6” pipe (6-7/8” O.D.) at 60°
• “6” W x 9” H at 60°
• 6” Square at 60°
• 7” wide x 2” thick – Flat Stock at 60°
• 6” pipe (6-7/8” O.D.) at 60°
• Blade Speeds (3): 60-115-230 FPM
• Blade Size: 12’0” x 1”
• Feed Control: Hydraulic Adjusting
• Vise: Quick Adjusting Camlock
• Shut Off: Automatic
• Motor – Standard: 1-1/2 H.P. 220 Volt Single Phase
• Shipping Weight: 800 lbs.
• Size: Table Height 28-1/8” Length 72” Width 38-1/4” Height 47”
• Table Height 28-1/8”
• Length 72”
• Width 38-1/4”
• Height 47”
• Sealed Oil Bath Worm Gear: Standard
• Removable Chip Tray: Standard
• Construction: Heavy Steel; Welded & Machined for Accuracy & Durability
• *Specifications are subject to change without notice
• Available Accessories
• Air System
• Stock Gauge with Micro-Adjuster
• Single Stock Stand – 1 Roller
• Stock Stand – 5’ Long, 4-Rollers
• Pipe Clamp Attachment for Camlock Vise
• Screw Type Vise
• Pipe Clamp Attachment for Screw Vise

Specifications

• Manufacturer: Ellis Manufacturing
• SKU: Ellis2000
• Shipping Method: LTL Freight
• Weight: 830 lb
• Dimensions: 80 × 32 × 54 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
