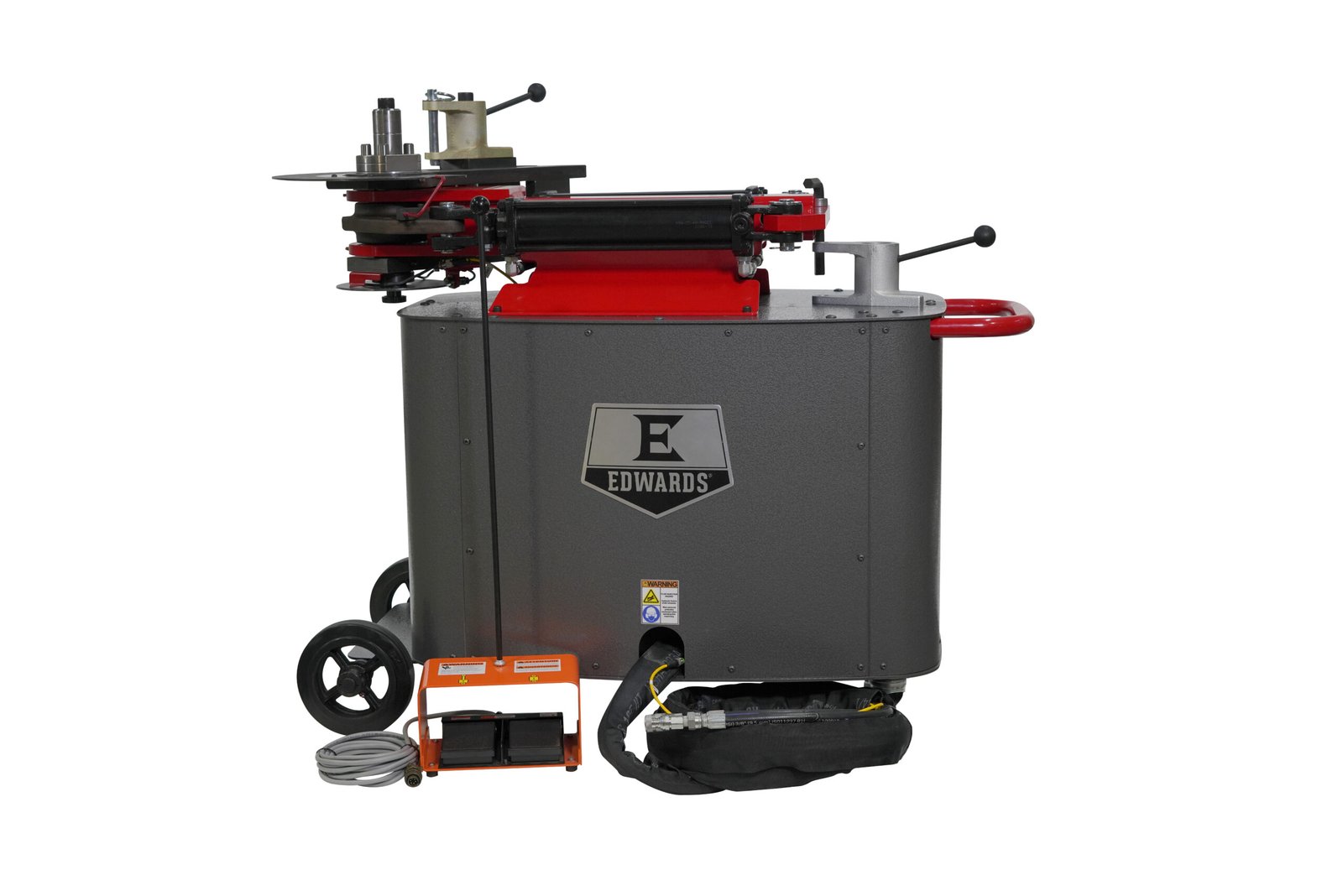

Edwards Manufacturing Rotary Draw Bender HAT2375 ED1-61

Edwards Manufacturing Rotary Draw Bender HAT2375 ED1-61 is a Edwards Manufacturing product in the Tube & Pipe Benders collection.

Product Details

• Minimum CLR: 1/2"
• Minimum OD: 1/4"
• Mild Steel Solid Rod: 1"
• Mild Steel Pipe Schedule 40: 2"
• Description
• Edwards is proud to introduce their NEWEST Powerlink Hydraulic Tool, a Rotary Draw Bender. The HAT2375, is an innovative dual cylinder, rotary draw style bender, producing up to a 180° bend in one stroke. The open style drop on tooling makes changing dies simple and bending even easier eliminating the need to reset and re-pin the die mid-bend. An adjustable auto stop controls when your bend is complete improving precision, saving time, and maximizing your production capabilities. The heavy-duty mobile cart allows for easy movement around your shop. The HAT2375 is the perfect addition to your Ironworker with PowerLink System expanding your tube and pipe fabrication.
• Features
• Dual Cylinder Rotary Draw Bender Produces Consistent 180° Bends in One Stroke.
• Must be run off an Edwards tool with PowerLink™ System or Portable Power Unit.
• Open Style Drop on Tooling for Quick and Easy Die Changes.
• Heavy Duty Mobile Cart for Mobility Around Your Shop and Ease of Storage.
• Auto Stop Feature can be set to Desired Bend for accuracy and Repeatability.
• Large Easy to Read Degree Wheel.
• Easy-to-use hand/jog controls with integrated E-Stop.
• 20' quick-connect hoses for simple "plug & play" operation.
• Specifications
• Max CLR: 7” – 8”
• Min CLR: ½”
• Min OD: ¼”
• Degree of Bend: 180°
• Sound Level: <70db
• Machine Dims: 55” x 25.5” x 45”
• Approx Weight: 596 lbs
• Bending Capacities
• Mild Steel Pipe, Sch 40: 2”
• Aluminum Pipe, Sch 40: 2”
• Stainless Steel Pipe, Sch 40: 1½”
• Mild Steel Round Tube (wall): 2½” (1/8”)
• Aluminum Round Tube (wall): 2½” (5/32”)
• Stainless Steel Round Tube (wall): 2-3/8” (1/8”)
• Chromolly Round Tube (wall): 2” (1/8”)
• Mild Steel Square Tube (wall): 2” (1/8”)
• **These units are compatible ONLY with Baileigh Bender Dies**

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED1-61
• UPC: 019907947257
• Shipping Method: LTL Freight
• Weight: 586 lb
• Dimensions: 60 × 44 × 70 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
