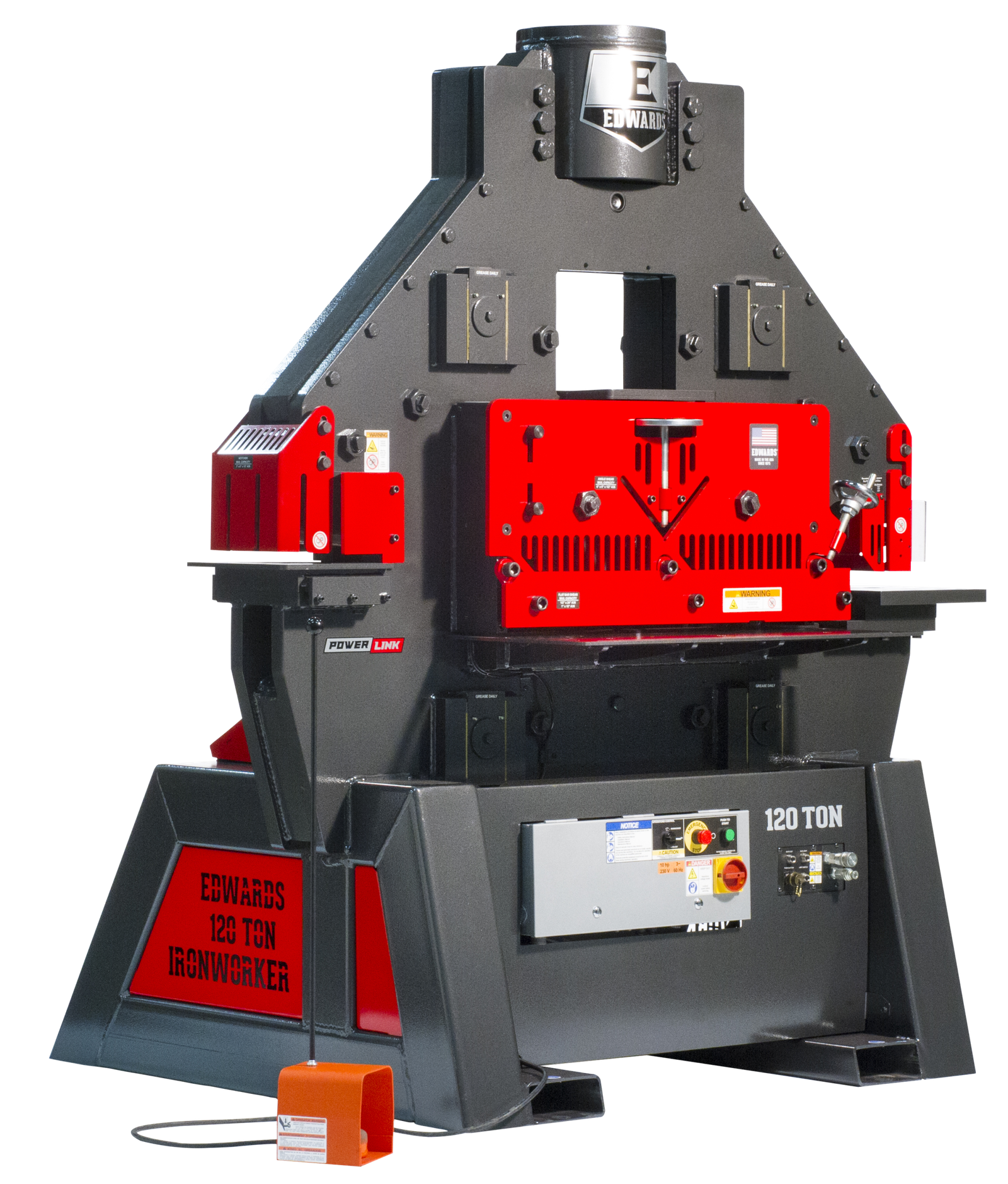

Edwards 120 Ton Ironworker 575V, 3Ph, with PowerLink IW120-3P575-AC900

Edwards 120 Ton Ironworker 575V, 3Ph, with PowerLink IW120-3P575-AC900 is a Edwards Manufacturing product in the Ironworkers collection.

Product Details

• Adjustable electric stoke control
• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Our most powerful Ironworker, the 120 Ton, offers the largest capacity and most flexibility – created with heavy-duty Made in USA steel construction. This compact machine allows for fast and easy transitions between fabrication operations. The 5 Workstations include a punch, flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 Attachments. Further customize the Ironworker to your projects with 12 additional Attachments and 15 Accessories. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. In addition, the PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.
• Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
• Specification: Value
• Motor Speed (RPM): 1770
• Punch Max Capacity (In.): 1-1/2 diam. in 1 mild steel
• Punch Stroke (In.): 2
• Punch Work Height (In.): 36-5/8
• Flat Bar Shear Max Capacity 1": 12
• Flat Bar Shear Max Capacity 1/2": 24
• Flat Bar Shear Max Capacity (In.): 1/2 x 24, 1 x 12
• Flat Bar Shear Work Height (In.): 33-1/4
• Flat Bar Shear Max Round Capacity (In.): 1-1/4
• Angle Shear Max Capacity (In.): 6 x 6 x 1/2
• Angle Shear Work Height (In.): 52-1/2
• Weight (Lbs.): 5500
• Coper Notcher Max Capacity (In.): 3 x 6 x 1/2
• Flat Bar Shear Max Square (In): 1-1/4
• Coper Notcher Work Height (In.): 40
• Flat Bar Shear Max Round (In): 1-1/4
• Hydraulic Pump (GPM): 24
• Punch Shut Height (In): 7-1/8
• Punch Open Height (In): 9-1/8
• Amps: 10
• Hydraulics (GPM): 24
• Rating (Tons): 120
• Reservoir (Gal.): 17
• Hydraulics (PSI): 3800
• Hydraulic Reservoir (Gal.): 17
• Valve Pressure (PSI): 3800
• Product Dimensions (In.): 60 x 60 x 84
• Motor (HP): 10 HP 3 ~ 575V
• Overall Dimensions (L x W x H) (In.): 60 x 60 x 84
• Motor Amps: 10
• Shipping Dimensions (L x W x H) (In.): 60 x 67 x 87
• Gross Weight (Lbs): 5975
• Height: 87.0000
• Length: 60.0000
• Weight: 5975.0000
• Width: 67.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-IW120-3P575-A
• UPC: 731325556001
• Shipping Method: Flatbed
• Weight: 5,975 lb
• Dimensions: 60 × 67 × 87 in
• Country of Origin: United States of America
