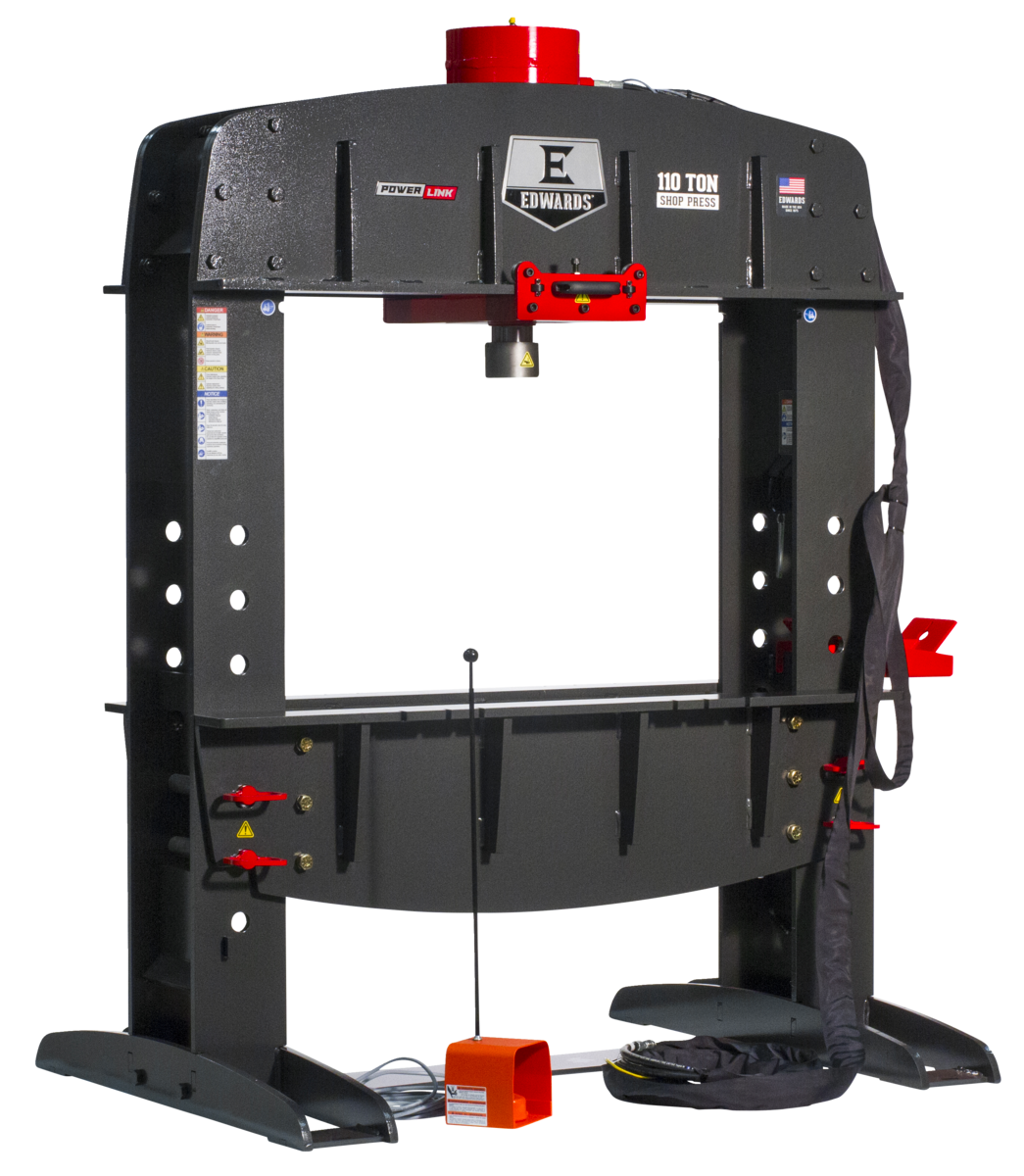

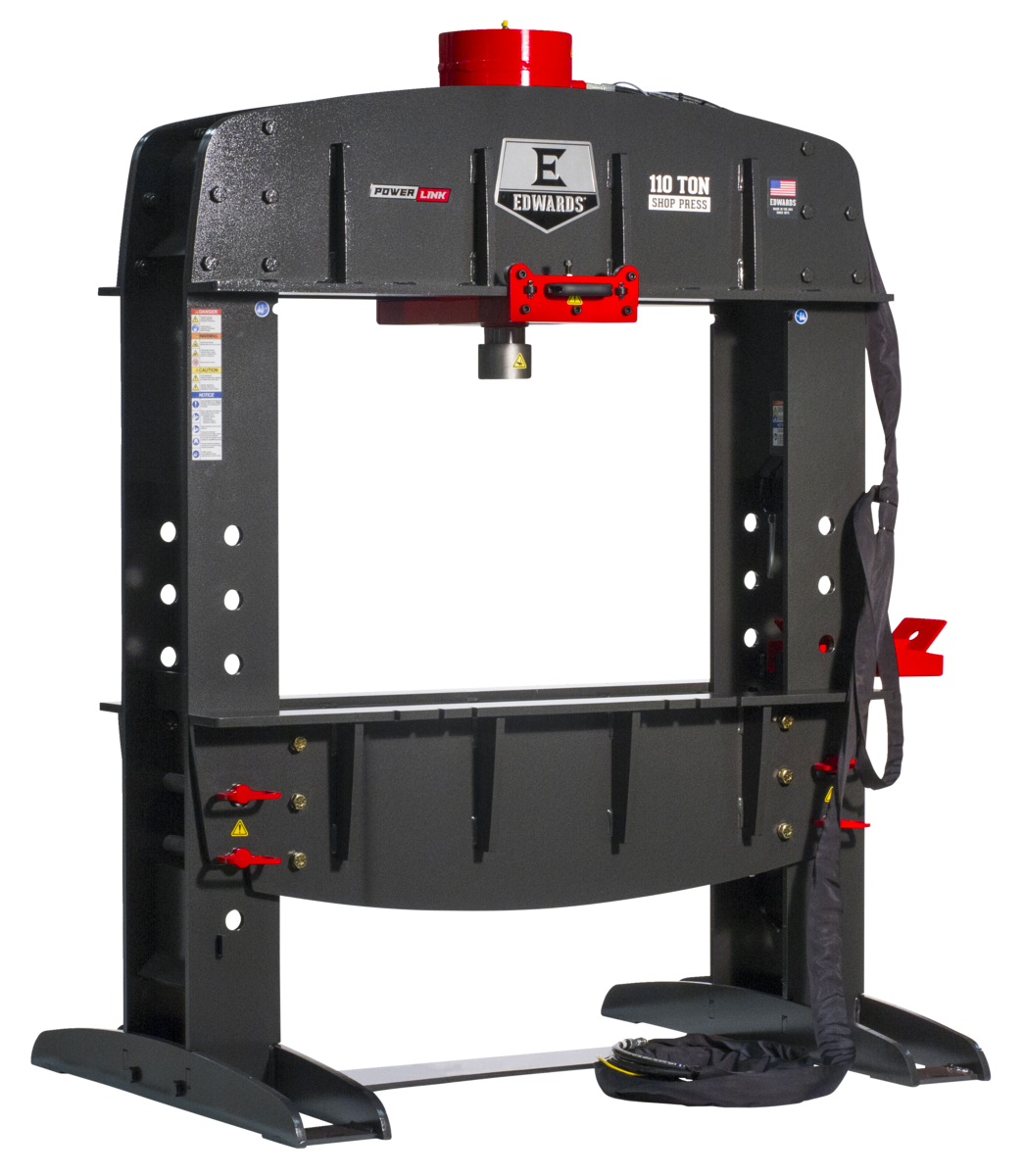

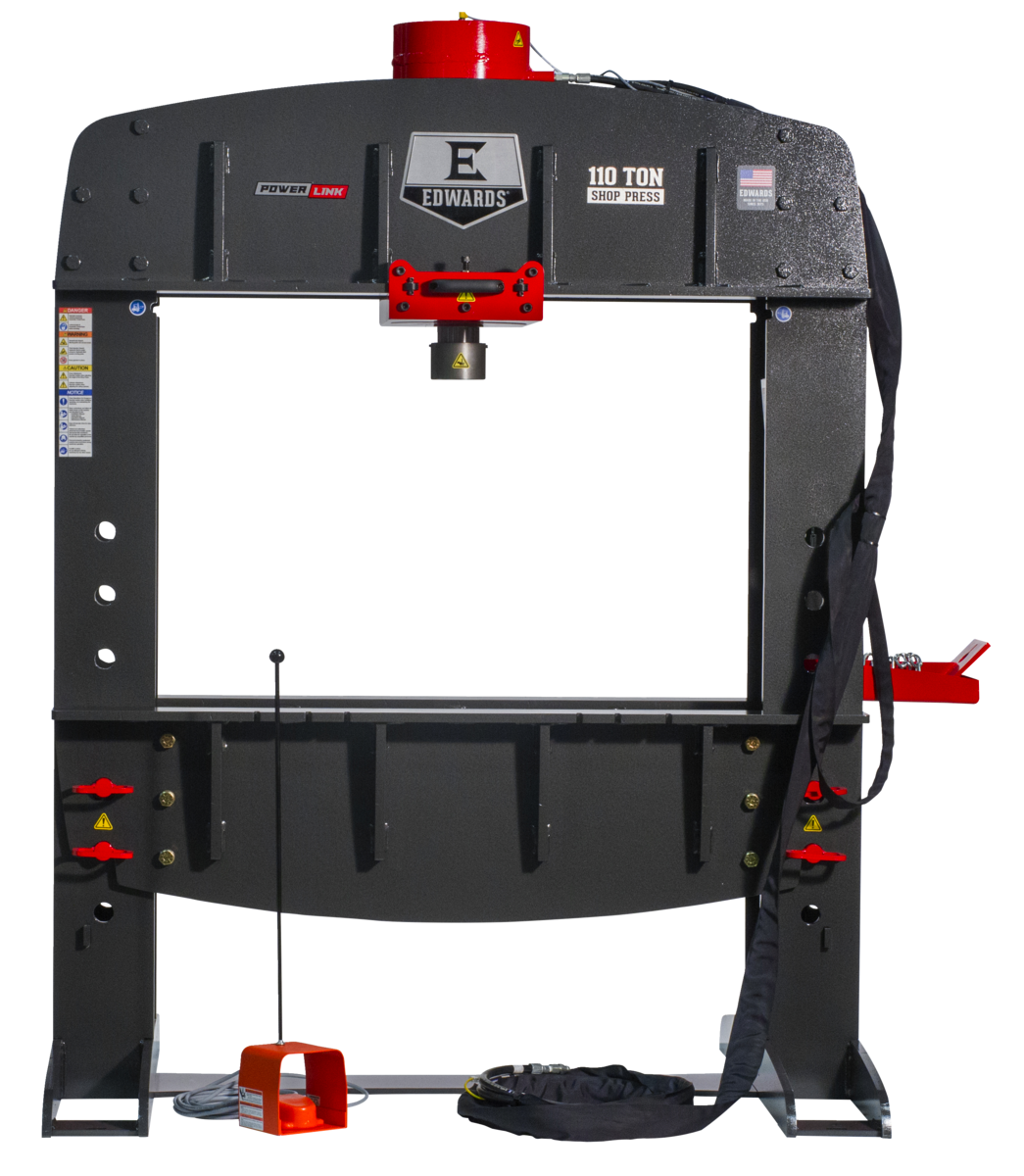

Edwards 110 Ton Shop Press HAT9000

Edwards 110 Ton Shop Press HAT9000 is a Edwards Manufacturing product in the Hydraulic Presses collection.

Product Details

• 20' quick-connect hoses for simple "plug & play" operation
• Accepts a variety of standard and custom tooling
• Electric foot pedal with integrated jog control
• Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
• Open-sided design allows longer material to pass through the frame
• Our most powerful Shop Press, the 110 Ton offers the greatest capacity for the widest variety of projects. Able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit. Also available with Programmable Logic Control (PLC).
• Pressure gauge provides accurate measurements allowing for easy repeatable parts production
• Rolling cylinder provides maximum adaptability
• Specification: Value
• Minimum Ram Speed (In./Sec): 0.186
• Minimum Return Speed (In./Sec): 0.22
• Stroke (In.): 12-1/4
• Steel Frame Thickness (In.): 3/4
• Work Table (In.): 37-7/16 x 48
• Weight (Lbs.): 2690
• Rating (Tons): 110
• Product Dimensions (In.): 48 x 64 x 88
• Net Weight (Lbs.): 2200
• Gross Weight (Lbs): 2200
• Height: 84.0000
• Length: 48.0000
• Weight: 2200.0000
• Width: 64.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-HAT9000
• UPC: 731325714289
• Shipping Method: LTL Freight
• Weight: 2,200 lb
• Dimensions: 48 × 64 × 84 in
• Country of Origin: United States of America
