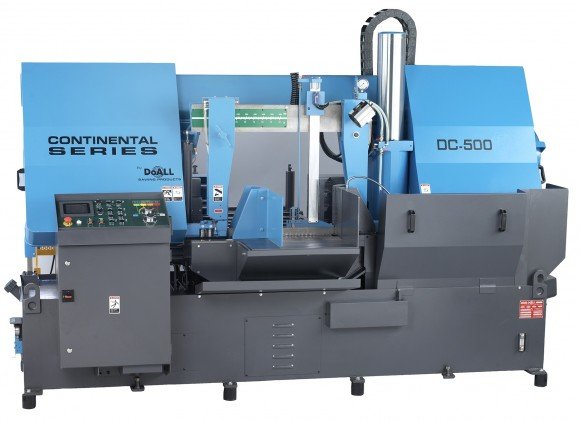

DoALL Semi-Automatic Band Saw DC-500SA

DoALL Semi-Automatic Band Saw DC-500SA is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Machine Capacity: 22" x 19.7"
• Production Level: High
• Bundle Capacity Minimum: 9.4 x 3"
• Cutting Capacity Rectangle: 22 x 19.7"
• Description
• The DC-500SA Semi-Automatic Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.
• Standard Equipment
• Programmable Logic Controller (PLC) control for all electric and hydraulic functions
• Multi-step full stroke vises with split front vise and variable vise pressure control
• Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
• Power driven, coolant flushed, blade cleaning wire brush
• Flushing hose and auxiliary coolant nozzles
• Hydraulic blade tension
• Automatic chip conveyor
• Blade breakage/stall motion detector shut off switch
• Band door interlocks
• Work light
• One set of 6-foot (2-meter) roller stands
• Set up tools and tool box
• Complimentary DoALL Cutting Fluids package
• One DoALL bi-metal saw blade
• Specifications
• Cutting Capacity Round: 19.7"
• Bundle Capacity Maximum: 18.9 x 9.4"
• Band Saw Blade Length x Width x Thickness: 214.6 x 1.6 x 0.051"
• Band Speed: 66-262 FPM
• Band Drive: 7.5 hp
• Hydraulic Pump: 2 hp
• Hydraulic Tank Capacity: 22.5 gal
• Coolant Motor: 1/4 hp
• Coolant Tank Capacity: 29 gal
• Material Pass Line Height: 29.5"
• Machine Weight: 5732 lbs
• Dimensions W x L x H: 113.8 x 61 x 70.9"

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DC-500SA
• Shipping Method: Flatbed
• Weight: 1,700 lb
• Dimensions: 126 × 55 × 75 in
• Country of Origin: United States of America
