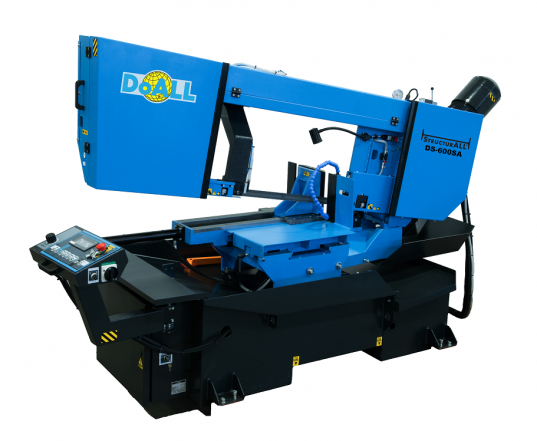

DoAll Dual-Miter Semi-Automatic Band Saw DS-600SA

DoAll Dual-Miter Semi-Automatic Band Saw DS-600SA is a DoALL Sawing Products product in the Band Saws collection.

Product Details

• Cutting Capacity Round Tube: 18" (460mm)
• Cutting Capacity Rectangle: 23.5" x 18" (600x460mm)
• Cutting Capacity Round Solid: 15.75" (400mm)
• Miter Cutting: 60° left and 60° right
• Description
• The DoALL DS-600SA StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for straight and angled cuts. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the DoALL DS-600SA is ideal for fabrication shops, repair facilities and industrial manufacturing plants that cut tubing and structural shapes and occasional large solids. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
• Mitsubishi saw control
• Variable frequency drive
• Pulley-driven band brush
• Overfeed protection
• Digital read out of cutting angle
• Hydraulic band tension
• Work light
• Mist-style band lubrication
• Variable vise pressure control
• Flood coolant
• Tool kit
• Complimentary DoALL cutting fluids package
• One (1) complimentary DoALL bi-metal saw blade
• Operations and parts manuals on CD or USB data stick
• Specifications
• Nesting Capacity (Min to Max): 0.20" (5mm) to 23.6 x 9.8" (600x250mm)
• Capacity at 45°: Round: 18" (460mm), Rectangle: 18.5" x 9.5" (470x240mm)
• Capacity at 60°: Round: 12.6" (320mm), Rectangle: 13" x 7" (330x180mm)
• Band Saw Blade: Width: 1.5" (41mm), Length: 212" (5380mm)
• Band Speed: 65-328 fpm (20-100mpm)
• Band Drive Motor: 5 hp (4kW)
• Hydraulic Pump: 1 hp (0.75kW)
• Coolant Pump: 0.07 hp (0.05kW)
• Material Pass Line Height: 31-1/2" (800mm)
• Machine Weight: 2646 lbs (1200kg)
• Dimensions W x L x H: 136 x 45 x 65" (3457x1140x1650mm)

Specifications

• Manufacturer: DoALL Sawing Products
• SKU: DS-600SA
• Shipping Method: Flatbed
• Weight: 2,646 lb
• Dimensions: 150 × 80 × 80 in
