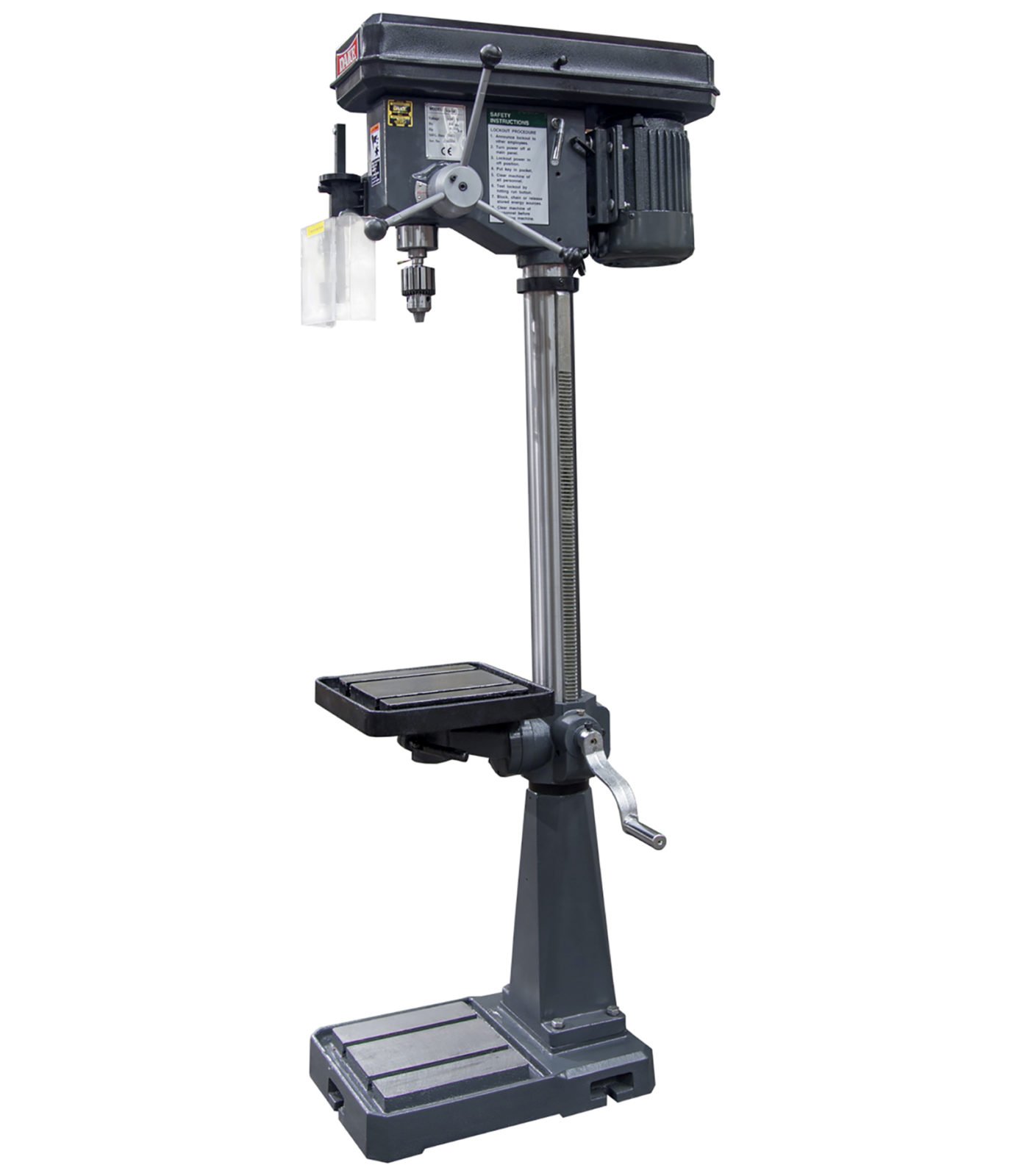

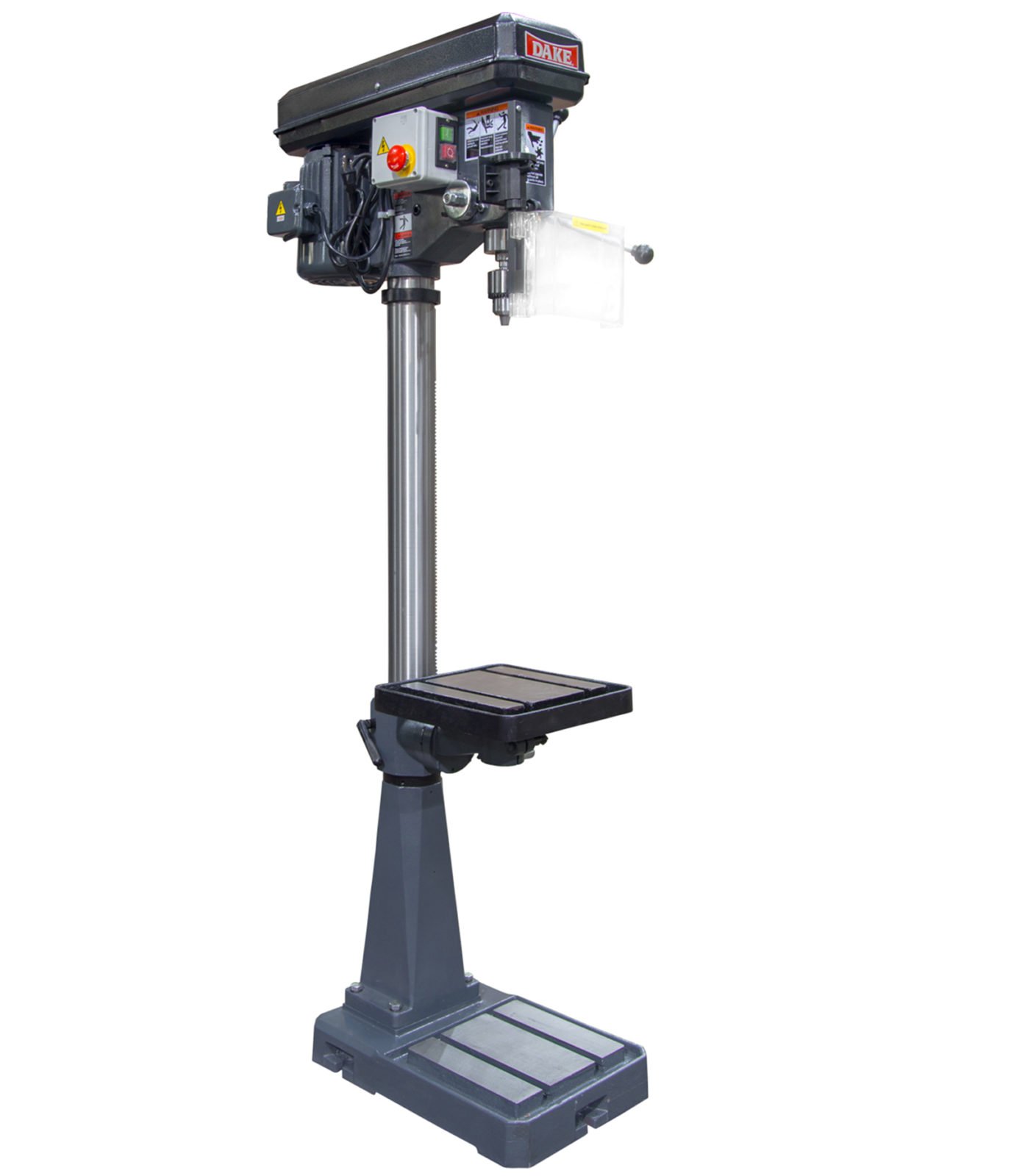

Dake Model SB-25 110V Single Phase 1” Drill Capacity Floor Model Drill Press 977600

Dake Model SB-25 110V Single Phase 1” Drill Capacity Floor Model Drill Press 977600 is a Dake Corporation product in the Drill Presses collection.

Product Details

• Working Diameter: 18”
• Spindle Speed Range: 270 – 2,000 rpm
• Spindle Travel: 5”
• Column Diameter: 3-5/8”
• Description
• Floor model drill press with 1” drill capacity. Featuring a locking handle hub, CE safety electrical packages, a large diameter sturdy spindle, and massive cast head. Capable of quick bit changes and quick belt tension release for easy speed changes.
• Dake’s line of industrial strength drill presses are designed with the operator in mind. Access the ability to set up multiple applications quickly with the variable speed option. Choose a bench top or floor model to fit any of your applications needs. Backed by the Dake quality you can trust, your drill press will last for years to come and are guaranteed to get the job done.
• Features
• A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
• Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
• Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing
• Quick release belt tensioning for fast, easy speed changes
• CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover
• Massive cast head, machined column, and sturdy cast base reduces vibration
• Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck
• Handle has 3 spokes with spring return for precise operator control and ergonomic operation
• Standard Equipment
• 5/8” Keyed chuck
• Drift for bit removal
• Plexiglas chip and chuck guard
• Specifications
• Drill Capacity: 1”
• Horsepower: 2 HP
• Spindle Taper: MT3
• Number of Speeds: 9
• Table Size: 13¾” x 13¾”
• Spindle to Table: 28-3/8”
• Spindle to Base: 50”
• Electrical Requirements: 110V Single Phase
• Machine Dims: 15” x 23-5/8” x 71”
• Approx Weight: 397 lbs
• Optional Add-On
• Drill Press Vice
• Quick Release Drill Press Vice

Specifications

• Manufacturer: Dake Corporation
• SKU: 977600
• Shipping Method: LTL Freight
• Weight: 450 lb
• Dimensions: 25 × 30 × 75 in
