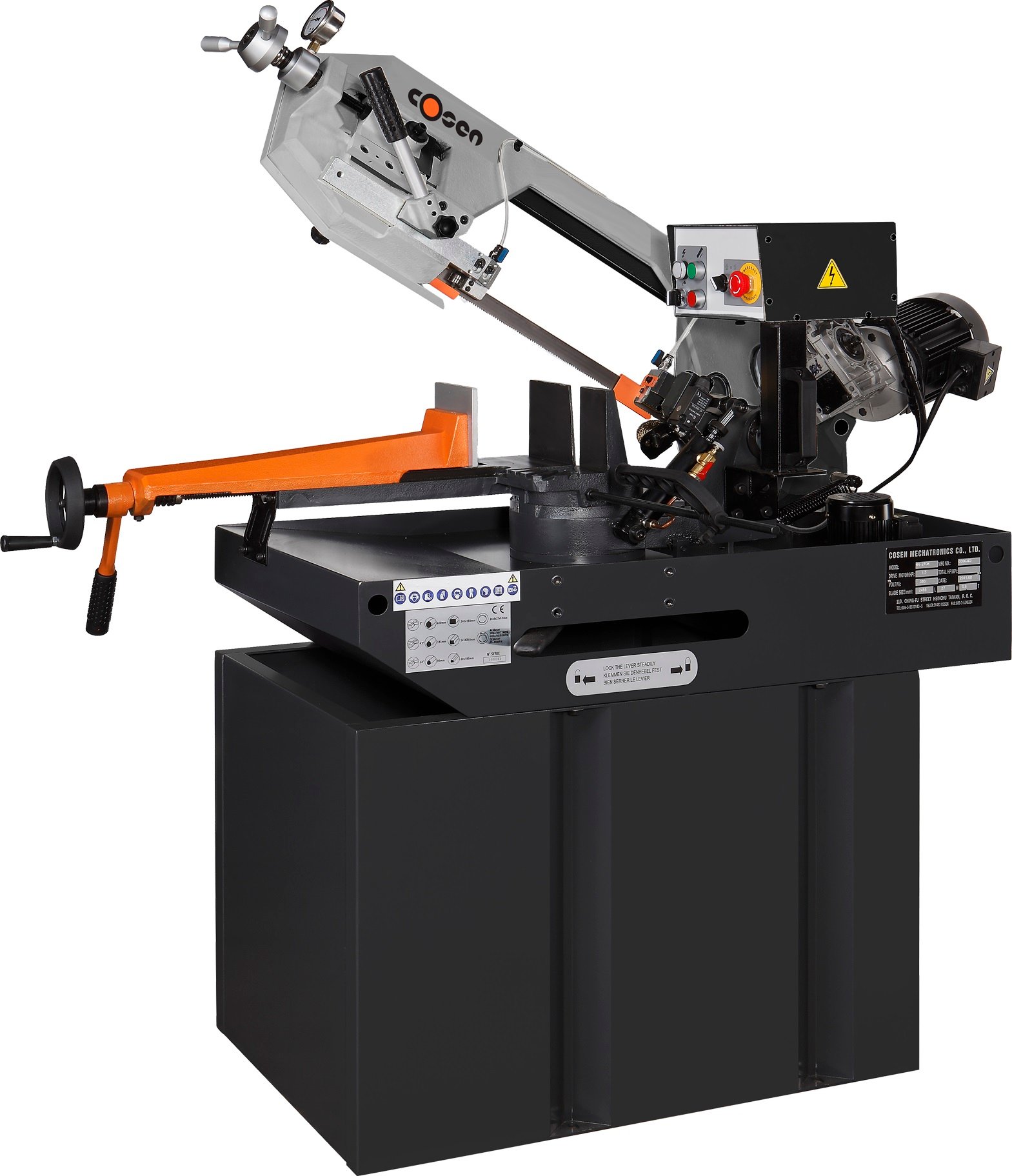

Cosen 8.9” Manual Horizontal Scissor Style Mitering Band Saw MH-270M

Cosen 8.9” Manual Horizontal Scissor Style Mitering Band Saw MH-270M is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity at 0°: 8.9”
• Rectangular Capacity at 0°: 9.45” x 6”
• Blade Speed: 60Hz: 132-264 FPM
• Blade Motor: 1.5 HP
• Description
• The MH-270M comes equipped with a manual vise and adjustable hydraulic down feed. It is an ideal band saw for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and for limited run production work. It is a great machine for cutting square, round, and rectangular solids, as well as tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
• Features
• Adjustable flood coolant system
• Blade cleaning chip brush
• Stepless variable blade speed
• Swivel saw head allows miter cutting up to 60 degrees
• Hardened worm gear for durability
• Carbide blade guides and bearing provides additional blade support
• Hydraulic feed control with on/off valve
• Heavy duty quick clamp/release vise
• AutoCut mode with adjustable feed rate
• Quick Approach mode
• Specifications
• Capacity: 0° Angle: Round: 8.9” Rectangular: 9.45” x 6” +45° Angle: Round: 5.7” Rectangular: 5.7” x 8.2” +60° Angle: Round: 3.5” Rectangular: 3.5” x 7”
• 0° Angle: Round: 8.9” Rectangular: 9.45” x 6”
• Round: 8.9”
• Rectangular: 9.45” x 6”
• +45° Angle: Round: 5.7” Rectangular: 5.7” x 8.2”
• Round: 5.7”
• Rectangular: 5.7” x 8.2”
• +60° Angle: Round: 3.5” Rectangular: 3.5” x 7”
• Round: 3.5”
• Rectangular: 3.5” x 7”
• Blade Speed: 60Hz: 132-264 FPM 50Hz: 115 – 231 FPM
• 60Hz: 132-264 FPM
• 50Hz: 115 – 231 FPM
• Blade Size (L x W x T): 97-5/8” x 1” x 0.035”
• Coolant Motor: 1/8 HP
• Gross Weight: 550 lbs
• Floor Space: 28” x 53” x 52.2”

Specifications

• Manufacturer: Cosen
• SKU: MH-270M
• Shipping Method: LTL Freight
• Weight: 825 lb
• Dimensions: 72 × 38 × 45 in
• Warranty: 1 Year (Parts)
