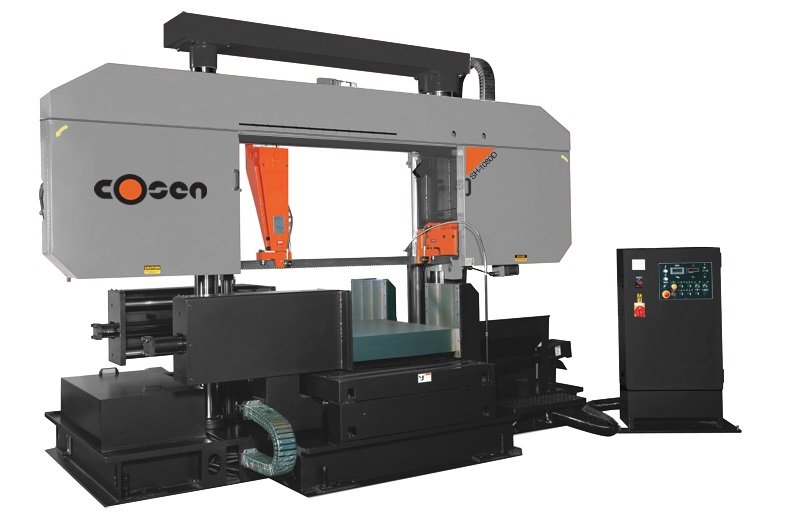

Cosen 31.5” x 40” Semi-Automatic Horizontal Dual Column Band Saw SH-1080D

Cosen 31.5” x 40” Semi-Automatic Horizontal Dual Column Band Saw SH-1080D is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity: 31.5"
• Rectangular Capacity (HxW): 31.5" x 40"
• Blade Motor: 15 HP
• Workbed Height: 25.2"
• Description
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-1080D fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• Hydraulic dual column design
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearings provides additional blade support
• Hydraulically actuated cast-iron guide arms
• Cast-iron hydraulic front and rear vises
• Split vise jaw for reduced burr
• Automatic hydraulic blade tensioning device
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Specifications
• Blade Speed: 49 – 293 FPM
• Blade Size (LxWxT): 28' 10.5" x 2.625" x .063"
• Coolant Motor: 1/4 HP
• Weight: 22,000 lbs
• Floorspace (LxWxH): 82.6" x 161.7" x 110.2"

Specifications

• Manufacturer: Cosen
• SKU: SH-1080D
• Shipping Method: Flatbed
• Weight: 22,000 lb
• Dimensions: 85 × 165 × 115 in
• Warranty: 1 Year (Parts)
