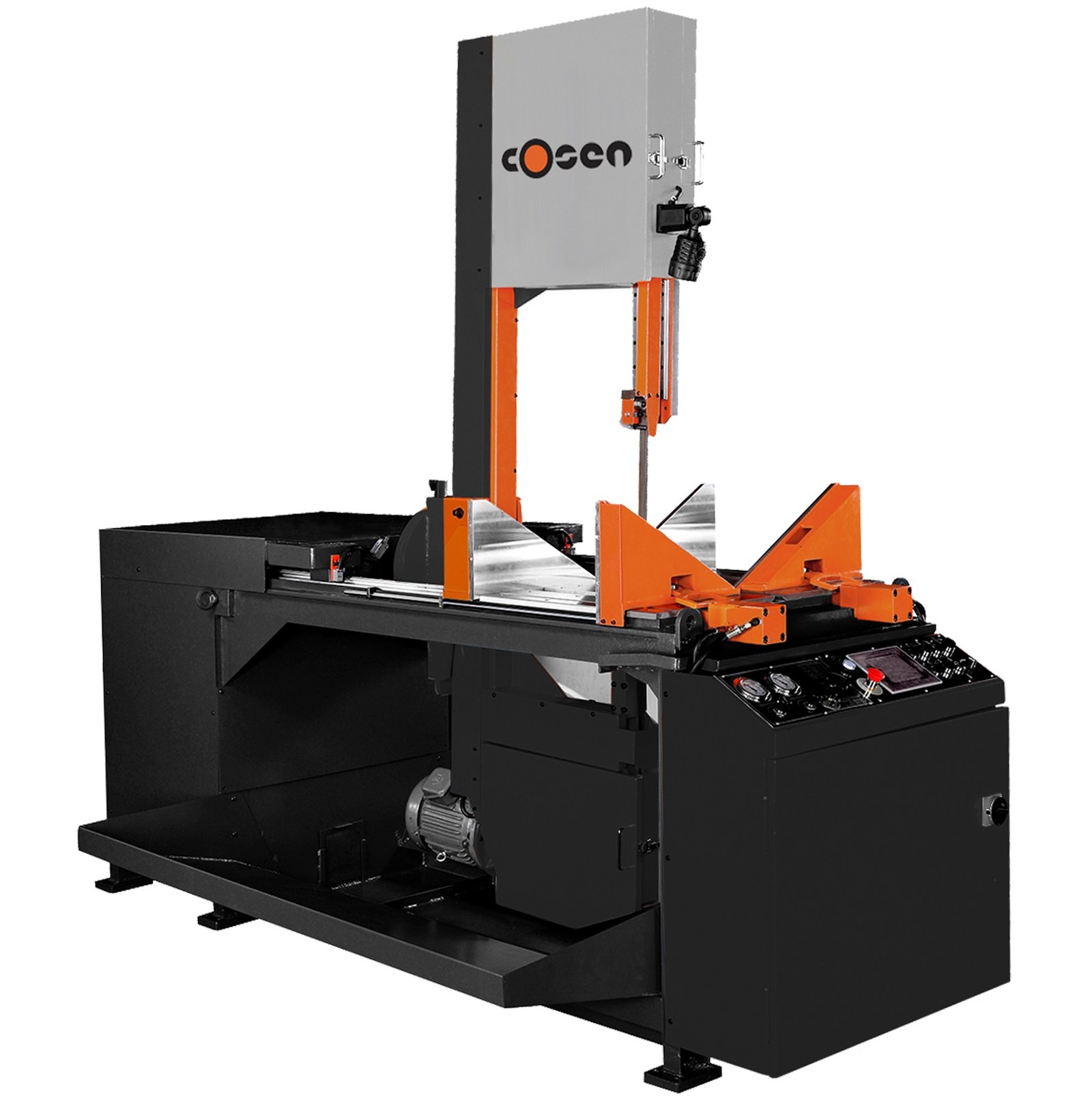

Cosen 22” x 30” Semi-Automatic Vertical Tilt-Frame Band Saw V-2230NC

Cosen 22” x 30” Semi-Automatic Vertical Tilt-Frame Band Saw V-2230NC is a Cosen product in the Band Saws collection.

Product Details

• Capacity at 0° Angle, 0° Blade Cant: 22” x 30”
• Capacity at 0° Angle, 5° Blade Cant: 20” x 27.5”
• Blade Motor: 7.5 HP
• Workbed Height: 41”
• Description
• Cosen offers a full line of vertical tilt-frame band saws in both semi-automatic and fully automatic styles, and offer machines in a variety of cutting capacities. All of Cosen's tilt-frame saws are built on a heavy duty saw frame and are designed to help reduce vibration during the cut and improve cutting performance. Each saw comes with the capability of cutting angles between 90° (straight cut) and 60° in both directions. All saws in the Tilt-Frame series also come standard with an automatic angle adjust built into the HMI to help make the cutting process simpler. Cosen's Vertical Til-Frame saws are excellent options for any fabrication production shop looking to make a transition into the vertical saw market.
• Features
• Hydraulic tilt-frame head allows miter cutting from 0 degrees to plus/minus 60 degrees
• Adjustable head cant from 0 to 5 degrees
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• 5.7” HMI touchscreen
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearings provide additional blade support
• Rigid cast-iron guide arm
• Hydraulic blade tensioning device
• Precision feed pressure and feed rate dual valve system for optimal cutting performance
• Specifications
• Capacity: 0° Angle 0° Blade Cant: 22” x 30” 5° Blade Cant: 20” x 27.5” 45° Left Angle 0° Blade Cant: 20” x 21” 5° Blade Cant: 20” x 19” 60° Left Angle 0° Blade Cant: 20” x 14” 5° Blade Cant: 20” x 13” 45° Right Angle 0° Blade Cant: 20” x 19.5” 5° Blade Cant: 20” x 18” 60° Right Angle 0° Blade Cant: 20” x 12” 5° Blade Cant: 20” x 10.5”
• 0° Angle 0° Blade Cant: 22” x 30” 5° Blade Cant: 20” x 27.5”
• 0° Blade Cant: 22” x 30”
• 5° Blade Cant: 20” x 27.5”
• 45° Left Angle 0° Blade Cant: 20” x 21” 5° Blade Cant: 20” x 19”
• 0° Blade Cant: 20” x 21”
• 5° Blade Cant: 20” x 19”
• 60° Left Angle 0° Blade Cant: 20” x 14” 5° Blade Cant: 20” x 13”
• 0° Blade Cant: 20” x 14”
• 5° Blade Cant: 20” x 13”
• 45° Right Angle 0° Blade Cant: 20” x 19.5” 5° Blade Cant: 20” x 18”
• 0° Blade Cant: 20” x 19.5”
• 5° Blade Cant: 20” x 18”
• 60° Right Angle 0° Blade Cant: 20” x 12” 5° Blade Cant: 20” x 10.5”
• 0° Blade Cant: 20” x 12”
• 5° Blade Cant: 20” x 10.5”
• Blade Speed: 50 – 330 FPM
• Blade Size (LxWxT): 17' 4.6" x 1.25" x .042
• Coolant Motor: 1/4 HP
• Weight: 4,520 lbs
• Floorspace (LxWxH): 122.8" x 109.5" 101.2"

Specifications

• Manufacturer: Cosen
• SKU: V-2230NC
• Shipping Method: Flatbed
• Weight: 5,100 lb
• Dimensions: 126 × 90 × 96 in
• Warranty: 1 Year (Parts)
