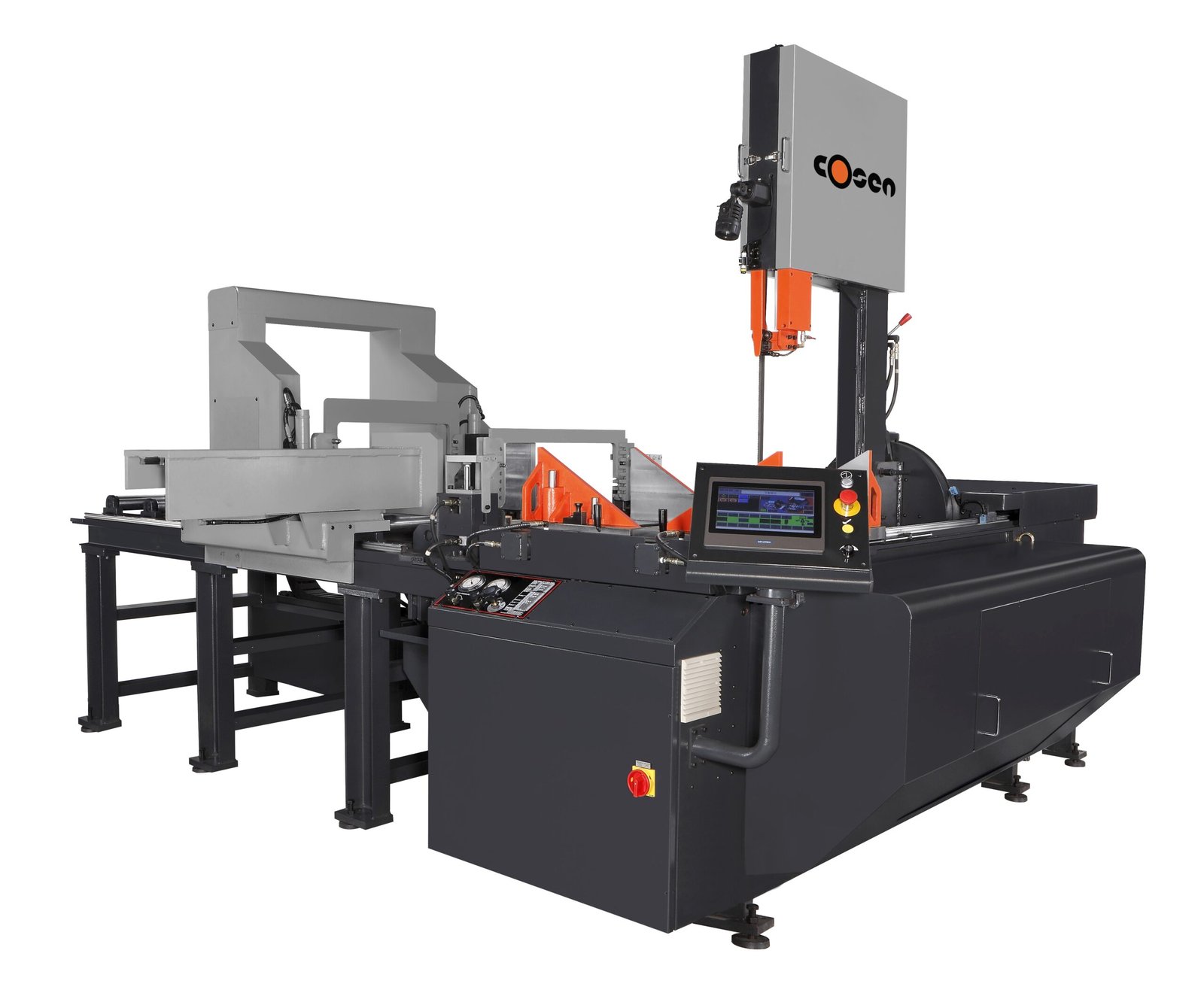

Cosen 20″ x 26″ NC Programmable Automatic Dual Mitering Vertical Tilt Frame Band Saw AV-2026NC

Cosen 20″ x 26″ NC Programmable Automatic Dual Mitering Vertical Tilt Frame Band Saw AV-2026NC is a Cosen product in the Band Saws collection.

Product Details

• Blade Speed: 50 – 330 FPM
• Capacity at 0°: 20” x 26.4”
• Blade Motor: 7.5 HP
• Workbed Height: 39.4"
• Description
• Cosen offers a full line of vertical tilt-frame band saws in both semi-automatic and fully automatic styles, and offer machines in a variety of cutting capacities. All of Cosen's tilt-frame saws are built on a heavy duty saw frame and are designed to help reduce vibration during the cut and improve cutting performance. Each saw comes with the capability of cutting angles between 90° (straight cut) and 60° in both directions. All saws in the Tilt-Frame series also come standard with an automatic angle adjust built into the HMI to help make the cutting process simpler. Cosen's Vertical Tilt-Frame saws are excellent options for any fabrication production shop looking to make a transition into the vertical saw market.
• Features
• Hydraulic tilt-frame head allows miter cutting from 0 degrees to plus/minus 60 degrees
• Adjustable head cant from 0 to 5 Degrees
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• 5.7” HMI touchscreen
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arm
• Hydraulic blade tensioning device
• Cast-iron hydraulic vise
• Save-A-Blade feature
• Computer controlled multiple indexing up to 999” max length
• 57" single stroke indexing (Ball Screw)
• Specifications
• Capacity Angle: 0° Blade Cant 0° – 20" x 26.4" 45° Left – 20" x 18.3" 60° Left – 20" x 12.8" 45° Right – 20" x 17.1" 60° Right – 20" x 10.4" 5° Blade Cant 0° – 20" x 24" 45° Left – 20" x 16.7" 60° Left – 20" x 11.8" 45° Right – 20" x 15.7" 60° Right – 20" x 10"
• 0° Blade Cant 0° – 20" x 26.4" 45° Left – 20" x 18.3" 60° Left – 20" x 12.8" 45° Right – 20" x 17.1" 60° Right – 20" x 10.4"
• 0° – 20" x 26.4"
• 45° Left – 20" x 18.3"
• 60° Left – 20" x 12.8"
• 45° Right – 20" x 17.1"
• 60° Right – 20" x 10.4"
• 5° Blade Cant 0° – 20" x 24" 45° Left – 20" x 16.7" 60° Left – 20" x 11.8" 45° Right – 20" x 15.7" 60° Right – 20" x 10"
• 0° – 20" x 24"
• 45° Left – 20" x 16.7"
• 60° Left – 20" x 11.8"
• 45° Right – 20" x 15.7"
• 60° Right – 20" x 10"
• Blade Size (LxWxT): 17' 1.9" x 1.25" x .042
• Coolant Motor: 1/4 HP
• Weight: 8,507 lbs
• Floorspace (LxWxH): 179.3" x 134.3" 101.2"

Specifications

• Manufacturer: Cosen
• SKU: AV-2026NC
• Shipping Method: Flatbed
• Weight: 5,093 lb
• Dimensions: 118 × 90 × 96 in
• Warranty: 1 Year (Parts)
