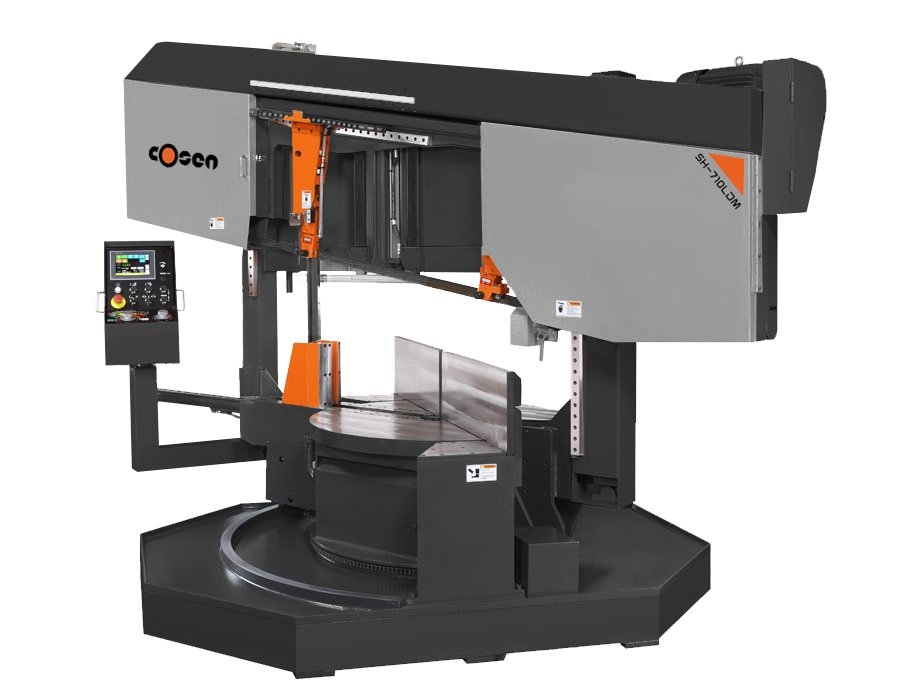

Cosen 18.5” Semi-Automatic Horizontal Dual Post Mitering Band Saw SH-710LDM

Cosen 18.5” Semi-Automatic Horizontal Dual Post Mitering Band Saw SH-710LDM is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity at 0°: 18.5”
• Rectangular Capacity at 0°: 16.5” x 28”
• Blade Motor: 7.5 HP
• Workbed Height: 26.4"
• Description
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-710LDM fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• High precision linear guide way design
• Heavy-duty cast iron swivel center features straight cutting and miter cuts (60 degrees)
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Cast-iron guide arms
• Cast-iron hydraulic vise which synchronizes movement with guide arm
• Automatic hydraulic blade tensioning device
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Specifications
• Capacity: 0° Angle: Round: 18.5” Rectangular: 16.5” x 28” +45° Angle: Round: 16.5” Rectangular: 16.5” x 18” +60° Angle: Round: 11.8” Rectangular: 16.5” x 11.8”
• 0° Angle: Round: 18.5” Rectangular: 16.5” x 28”
• Round: 18.5”
• Rectangular: 16.5” x 28”
• +45° Angle: Round: 16.5” Rectangular: 16.5” x 18”
• Round: 16.5”
• Rectangular: 16.5” x 18”
• +60° Angle: Round: 11.8” Rectangular: 16.5” x 11.8”
• Round: 11.8”
• Rectangular: 16.5” x 11.8”
• Blade Speed: 83 – 330 FPM
• Blade Size (LxWxT): 21' 5.5" x 1.5" x .050
• Coolant Motor: 1/8 HP
• Weight: 6,380 lbs
• Floorspace (LxWxH): 126" x 128" 76"

Specifications

• Manufacturer: Cosen
• SKU: SH-710LDM
• Shipping Method: Flatbed
• Weight: 6,500 lb
• Dimensions: 131 × 133 × 81 in
• Warranty: 1 Year (Parts)
