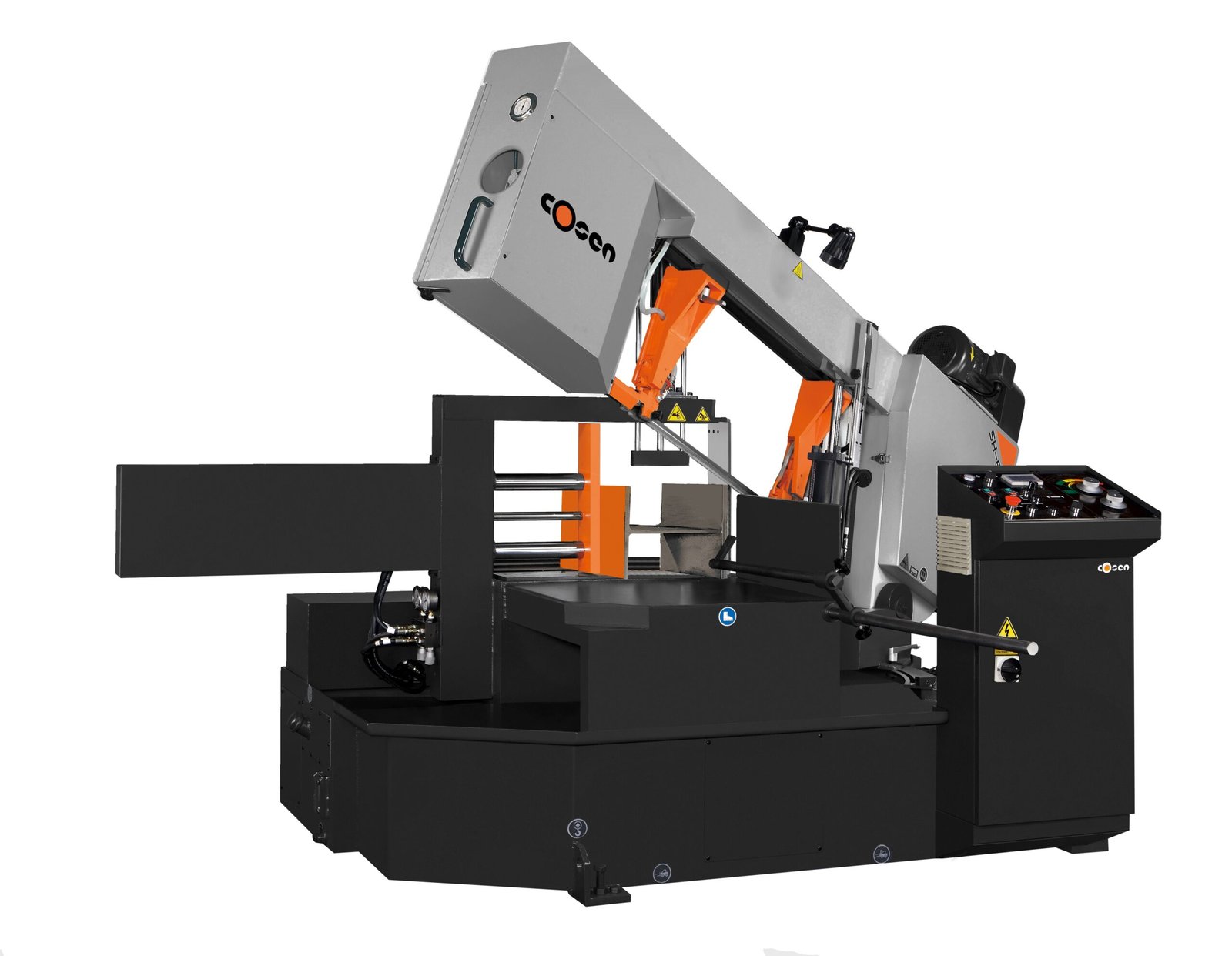

Cosen 16” Semi-Automatic Horizontal Scissor Style Mitering Band Saw SH-650M

Cosen 16” Semi-Automatic Horizontal Scissor Style Mitering Band Saw SH-650M is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity at 0°: 16”
• Rectangular Capacity at 0°: 16” x 25”
• Blade Motor: 7.5 HP
• Workbed Height: 29.5"
• Description
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-650M fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• Swivel saw head allows miter cutting from 0 degrees to 60 degrees
• Hydraulic cylinder plus precision ground hinge support
• Hardened worm gear for durability
• Variable speed blade drive
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arms
• Cast-iron hydraulic vise
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Automatic hydraulic blade tensioning device
• Specifications
• Capacity: 0° Angle: Round: 16” Rectangular: 16” x 25” +45° Angle: Round: 16” Rectangular: 16” x 16” +60° Angle: Round: 10” Rectangular: 16” x 10”
• 0° Angle: Round: 16” Rectangular: 16” x 25”
• Round: 16”
• Rectangular: 16” x 25”
• +45° Angle: Round: 16” Rectangular: 16” x 16”
• Rectangular: 16” x 16”
• +60° Angle: Round: 10” Rectangular: 16” x 10”
• Round: 10”
• Rectangular: 16” x 10”
• Blade Speed: 49 – 328 FPM
• Blade Size (LxWxT): 17' 4.6" x 1.25" x .042
• Coolant Motor: 1/8 HP
• Weight: 3,960 lbs
• Floorspace (LxWxH): 90.6" x 114" 98.4"

Specifications

• Manufacturer: Cosen
• SKU: SH-650M
• Shipping Method: Flatbed
• Weight: 3,969 lb
• Dimensions: 115 × 79 × 83 in
• Warranty: 1 Year (Parts)
