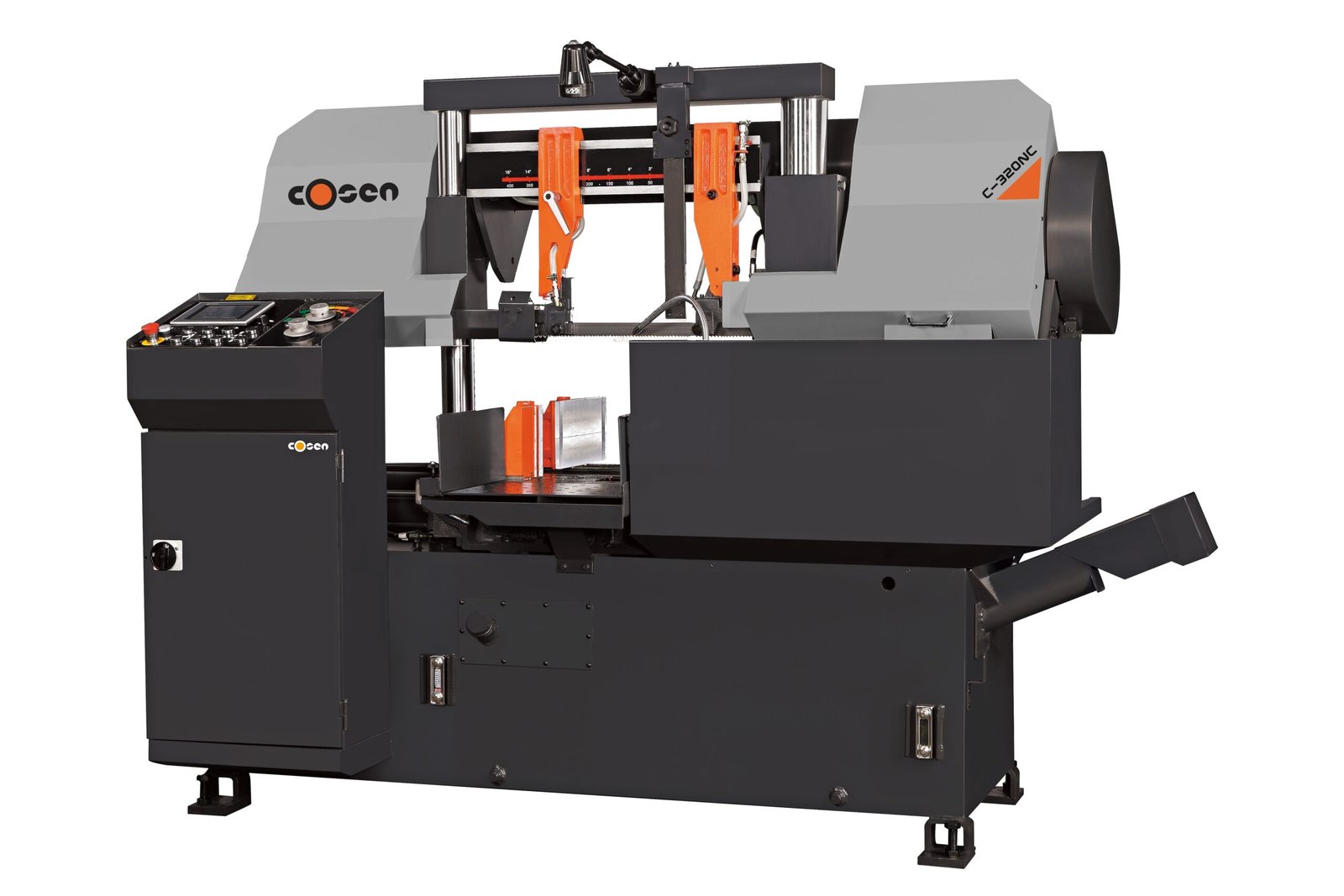

Cosen 12.6” Smart NC-100 Fully Automatic Horizontal Dual Column Band Saw C-320NC

Cosen 12.6” Smart NC-100 Fully Automatic Horizontal Dual Column Band Saw C-320NC is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity: 12.6"
• Rectangular Capacity (HxW): 12.6" x 15"
• Blade Motor: 5 HP
• Workbed Height: 31.1"
• Description
• Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen's C-320NC production machine, making it the perfect saw for mass production settings.
• Features
• Hydraulic dual column design
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• 5.7” HMI touchscreen
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Rigid cast-iron guide arms
• Automatic hydraulic blade tensioning device
• Cast-iron hydraulic vise
• Split vise jaw for reduced burr
• Save-A-Blade feature
• Precision feed pressure and feed rate dual valve system for optimal cutting performance
• Computer controlled multiple indexing up to 999” max length
• Specifications
• Blade Speed: 66 – 328 FPM
• Blade Size (LxWxT): 13' 11" x 1.25" x .042"
• Coolant Motor: 1/8 HP
• Weight: 4,079 lbs
• Floorspace (LxWxH): 79" x 79" x 65"

Specifications

• Manufacturer: Cosen
• SKU: C-320NC
• Shipping Method: Flatbed
• Weight: 4,090 lb
• Dimensions: 90 × 90 × 78 in
• Warranty: 1 Year (Parts)
