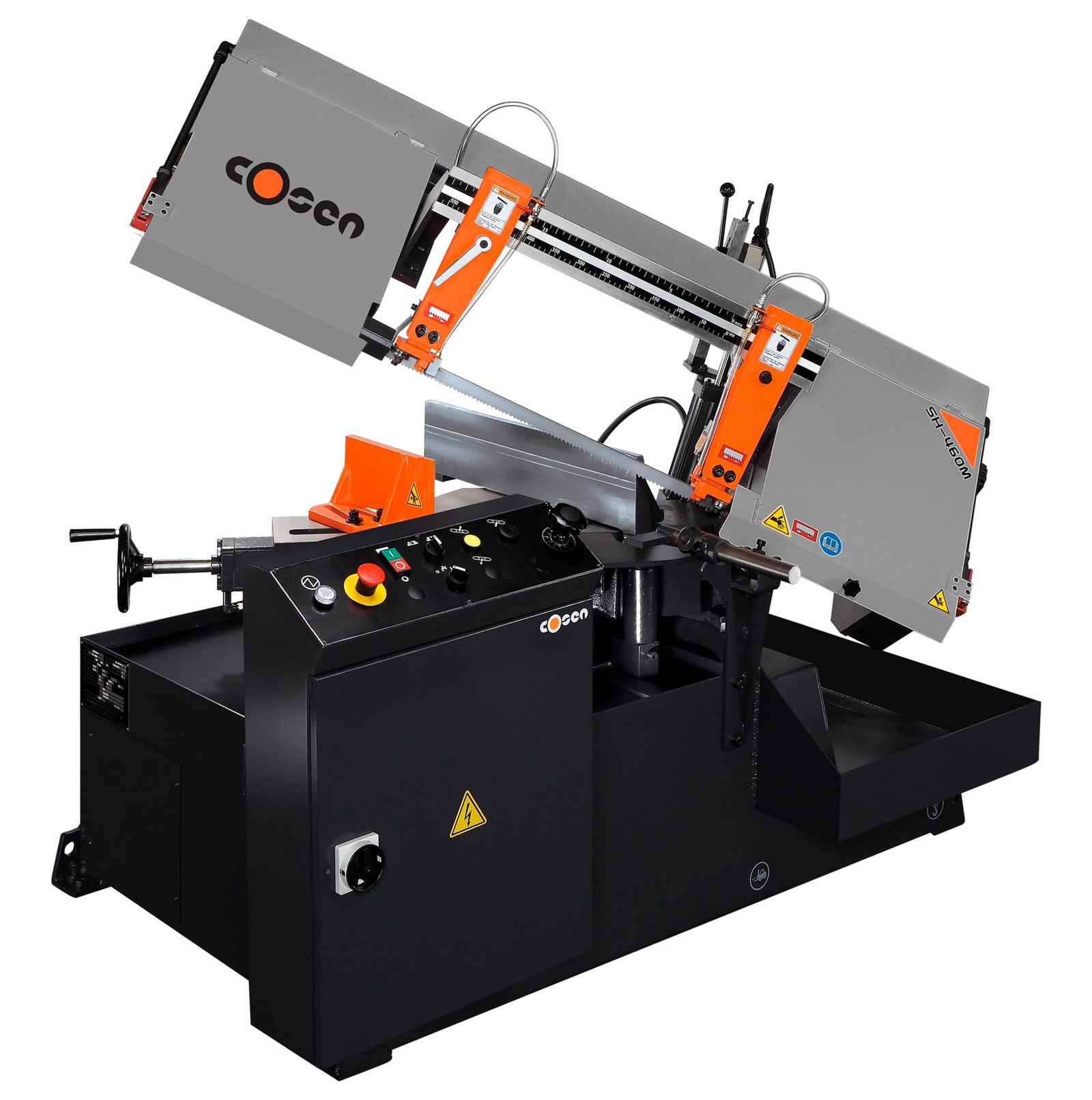

Cosen 10” Semi-Automatic Horizontal Scissor Style Mitering Band Saw SH-460M

Cosen 10” Semi-Automatic Horizontal Scissor Style Mitering Band Saw SH-460M is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity at 0°: 10”
• Rectangular Capacity at 0°: 9” x 18.1”
• Blade Motor: 2 HP
• Workbed Height: 25.4"
• Description
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-460M fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• Hydraulic cylinder plus precision ground hinge support
• Heavy-duty cast iron swivel center features straight cutting and miter cuts from 0 degrees to 30
• Adjustable flood coolant system
• Carbide blade guides and bearings provides additional blade support
• Rigid cast-iron guide arms
• Cast-iron vise
• Blade cleaning chip brush
• Adjustable down feed and pressure control
• Saw head automatically raises after each cut
• Specifications
• Capacity: 0° Angle: Round: 10” Rectangular: 9” x 18.1” -45° Angle: Round: 9” Rectangular: 9” x 9” -60° Angle: Round: 4.3” Rectangular: 9” x 4.3”
• 0° Angle: Round: 10” Rectangular: 9” x 18.1”
• Round: 10”
• Rectangular: 9” x 18.1”
• -45° Angle: Round: 9” Rectangular: 9” x 9”
• Round: 9”
• Rectangular: 9” x 9”
• -60° Angle: Round: 4.3” Rectangular: 9” x 4.3”
• Round: 4.3”
• Rectangular: 9” x 4.3”
• Blade Speed: 95, 150, 213, 321 FPM
• Blade Size (LxWxT): 11' 6" x 1" x .035"
• Coolant Motor: 1/8 HP
• Weight: 1,450 lbs
• Floorspace (LxWxH): 55" x 74.8" x 66.9"

Specifications

• Manufacturer: Cosen
• SKU: SH-460M
• Shipping Method: LTL Freight
• Weight: 1,325 lb
• Dimensions: 48 × 74 × 45 in
• Warranty: 1 Year (Parts)
