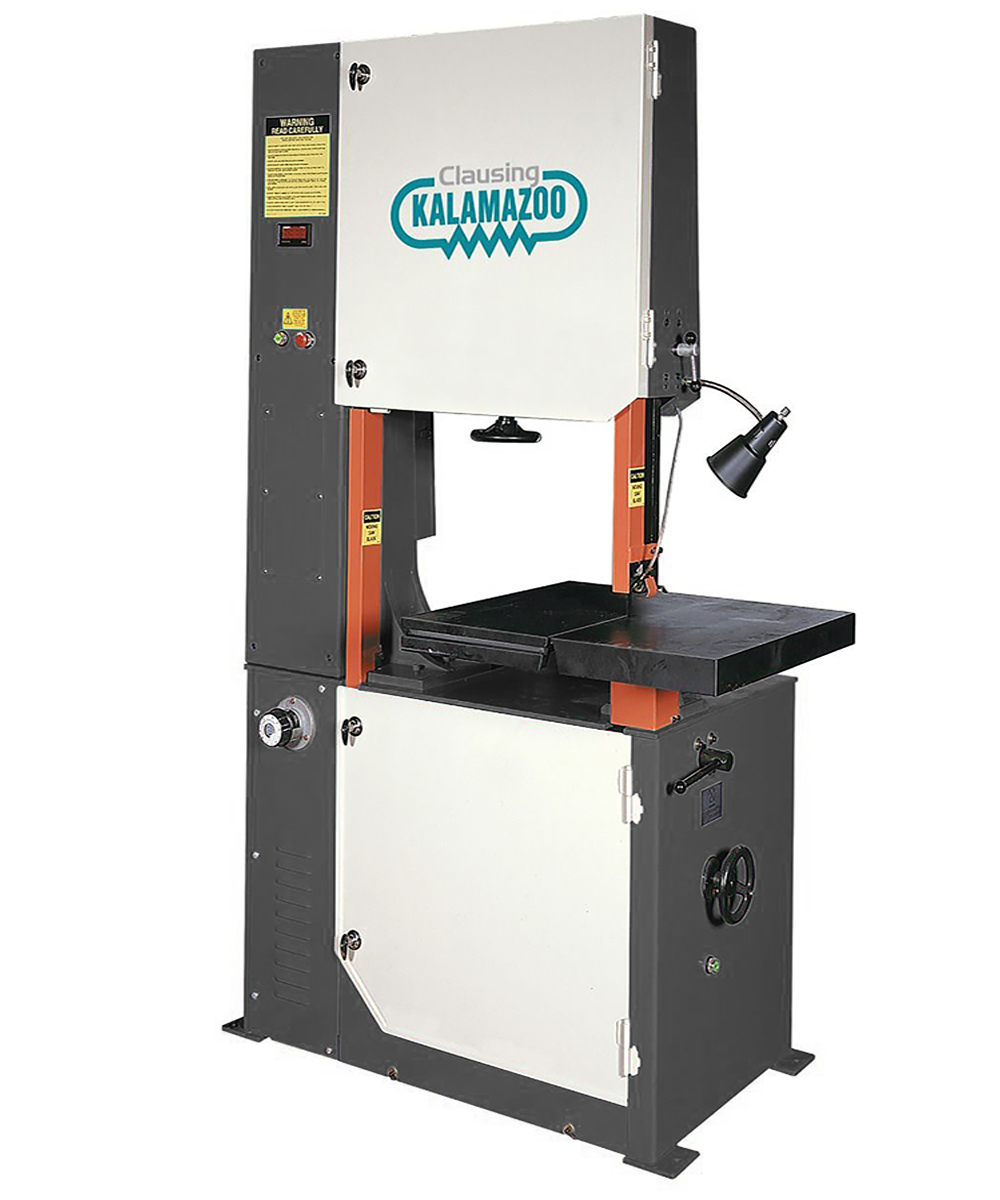

Clausing Kalamazoo 230V Three Phase 28” Vertical Bandsaw with Fixed Tilting Table V2812F

Clausing Kalamazoo 230V Three Phase 28” Vertical Bandsaw with Fixed Tilting Table V2812F is a Clausing Industrial product in the Band Saws collection.

Product Details

• Throat: 28”
• Work height: 12¾”
• Blade speed: 50-5200 FPM
• Table tilt: 15°L / 45°R
• Description
• The vertical saw comes with a heavy duty cast iron table with two way tilt (15°L / 45°R), solid table surface. The dual range transmission driven by 3HP motor, provides high torque and speed control. CE approved design.
• Features
• Magnetic starter with 110V control circuit and overload protection
• 3HP TEFC motor
• Dual range transmission
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8”, ½”, 5/8”, ¾”, and 1” back-up rollers in blade guide brackets
• 36¾” x 29” heavy duty cast iron table with two way tilt (15°L/45°R) solid table surface
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip fence
• ¾” carbon hardback blade
• Locking band wheel doors
• Operation & parts manual
• Specifications
• Blade length: 197.5” – 200”
• Blade width (inserts): 1/8” – 1”
• Floor to work table top: 42”
• Band wheel diameter: 28.38” (2 wheel)
• Drive motor: 3HP
• Electrical Requirements: 230V Three Phase 60Hz
• Machine Dims: 61” x 44” x 91”
• Approx Weight: 1,650 lbs
• Optional Add-Ons
• 460V Three Phase unit available (please contact a sales rep for more info)
• CE electrics (KM-CE)
• E-stop on fixed table (KM90)
• Extra rip fence (KM388)
• Miter gauge table (KM198)
• Miter gauge hydraulic table (KM198H)
• Circle cutting attachment (KM260)
• Clausing installed welder, shear, grinder
• Extra Chevron guide inserts, various sizes
• Roller tables, various sizes

Specifications

• Manufacturer: Clausing Industrial
• SKU: V2812F
• Shipping Method: LTL Freight
• Weight: 1,800 lb
• Dimensions: 65 × 48 × 95 in
