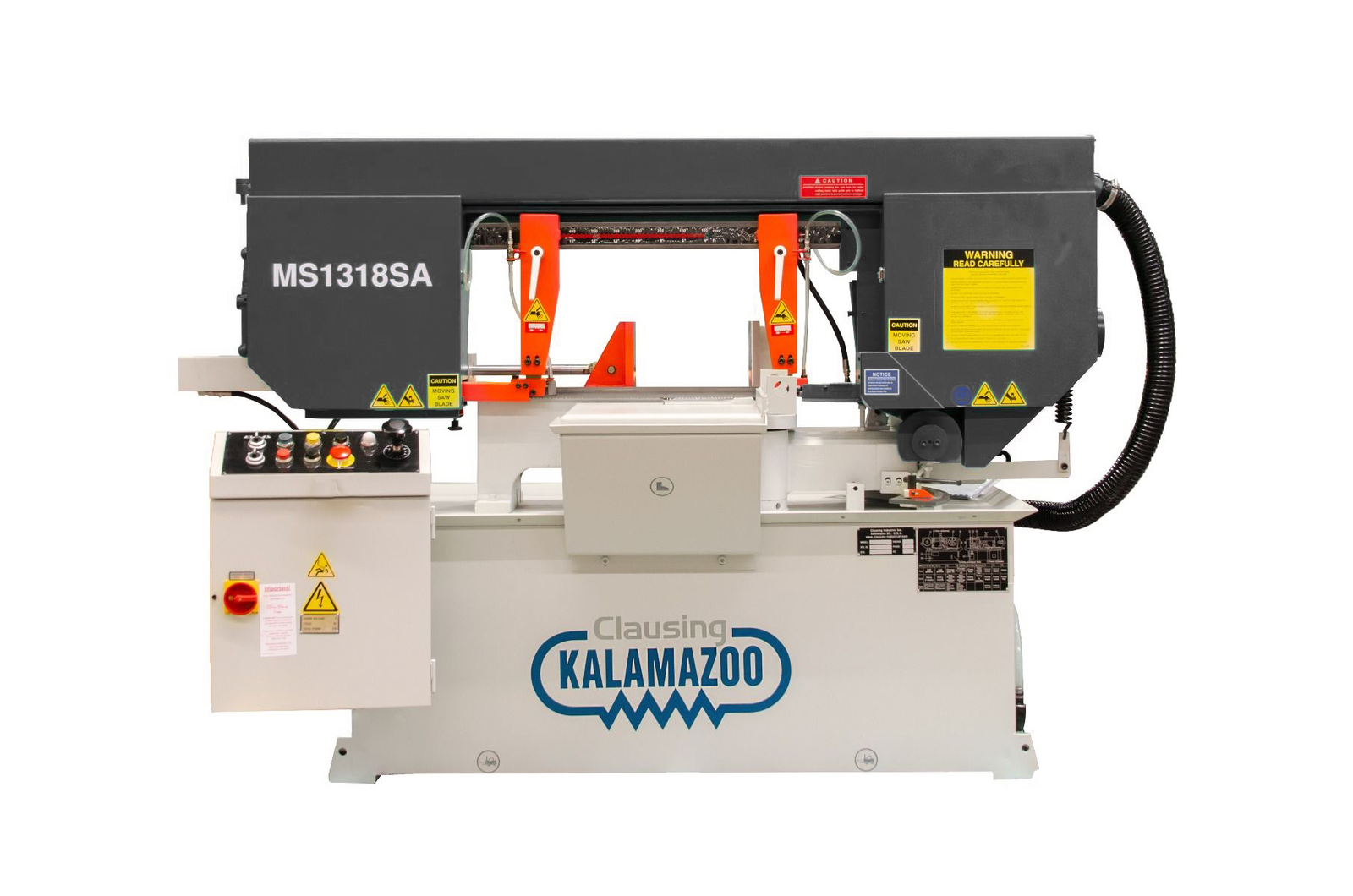

Clausing Kalamazoo 230V Three Phase 13”x18” Variable-Speed Semi-Automatic Horizontal Miter Bandsaw MS1318SA

Clausing Kalamazoo 230V Three Phase 13”x18” Variable-Speed Semi-Automatic Horizontal Miter Bandsaw MS1318SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade size: 1” x 0.035” x 163”
• Blade speeds (variable): 98-328 FPM
• Swivel angle range: 0° to 60°
• Bed height: 32.3”
• Description
• Semi-Automatic Saws can allow for power vise clamping, head rise and lowering. The saw head will lower to make the cut and the blade will shut off after the cut is made. Inverter drive speed will adjust the speed of the pulleys with a button or knob. As you adjust the frequency in the inverter this changes the drive motor RPM.
• Features
• Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at end of cut
• Full stroke machine vise for tight clamping of any material from operator’s panel
• Swivel saw head allows the operator to accurately pivot head for angle cuts from 0°, for a 90° cut, to 60° cuts
• Carbide blade guides provide excellent stability for the saw blade
• Variable blade speed
• Power chip brush removes chip from the blade extending blade life
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity and stability for an accurate cut
• Flushing hose
• Adjustable work stop
• Toolbox with tools
• Manual and parts list
• Cutting Capacities
• 90° Round: 13” Square: 11” Rectangular: 11” x 17.3”
• Round: 13”
• Square: 11”
• Rectangular: 11” x 17.3”
• 45° Round: 11.8” Square: 9.4” Rectangular: 11” x 9.4”
• Round: 11.8”
• Square: 9.4”
• Rectangular: 11” x 9.4”
• 60° Round: 8.6” Square: 8.6” Rectangular: 11” x 8.6”
• Round: 8.6”
• Square: 8.6”
• Rectangular: 11” x 8.6”
• Specifications
• Hydraulic motor: ½HP
• Hydraulic oil capacity: 2.1 gal
• Coolant motor: 1/8HP
• Coolant capacity: 7.8 gal
• Electrical Requirements: 230V Three Phase 3HP
• Machine Dims: 88” x 44” x 58”
• Approx Weight: 1,408 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P11)
• Bandsaw blade tension gauge (BT01)
• Variable vise pressure regulator (VP13SA)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: MS1318SA
• Shipping Method: Flatbed
• Weight: 1,850 lb
• Dimensions: 90 × 50 × 60 in
• Country of Origin: Taiwan
