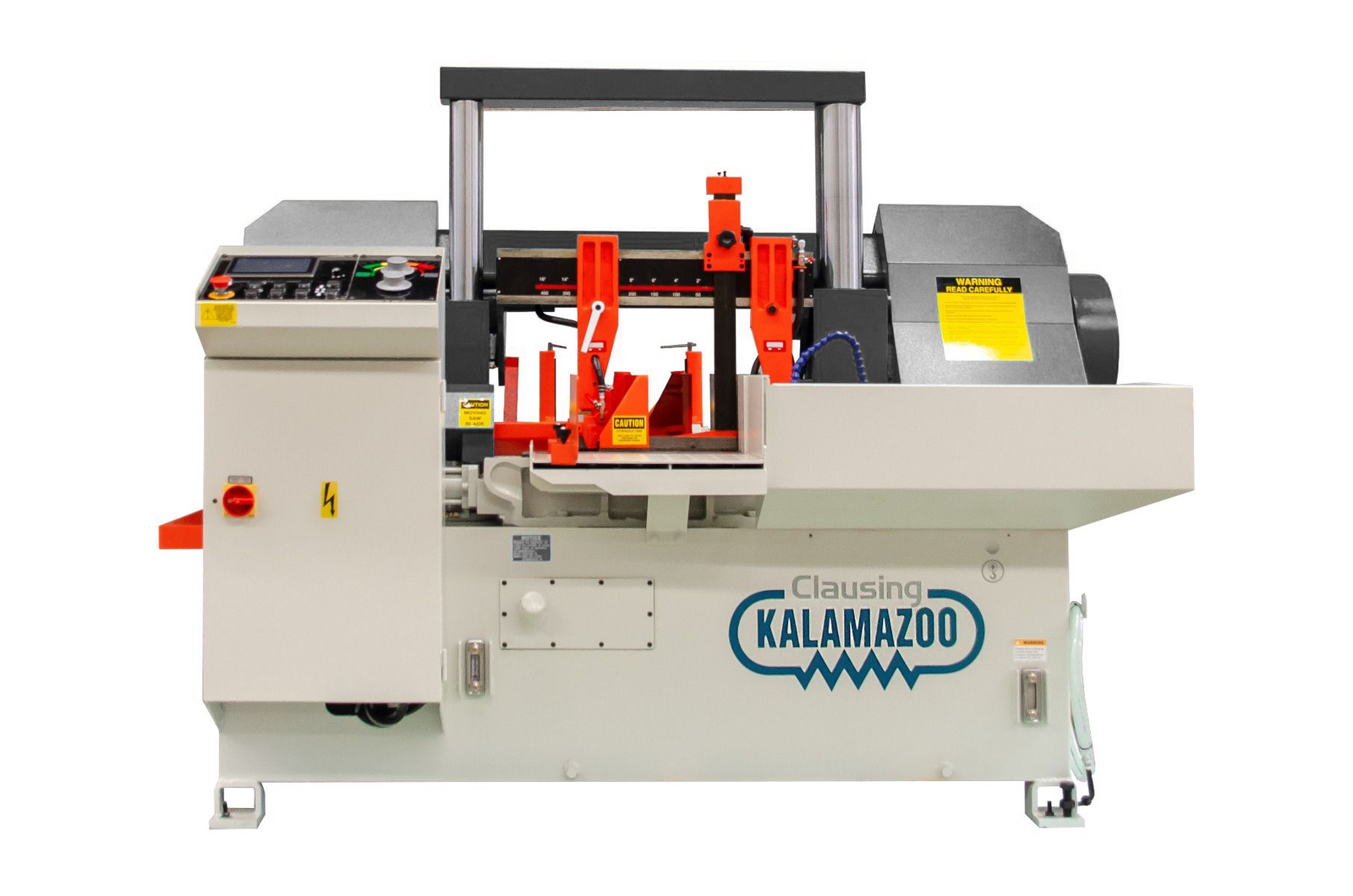

Clausing Kalamazoo 230V Three Phase 12.6” Double-Column Variable-Speed Automatic Horizontal Bandsaw H1315NC

Clausing Kalamazoo 230V Three Phase 12.6” Double-Column Variable-Speed Automatic Horizontal Bandsaw H1315NC is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Speeds (variable): 49 – 262 fpm
• Blade Size: 1.25” x 0.042” x 166.9”
• Max Feed: 255.9”
• Bed Height: 31.1”
• Description
• This Double Column Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in fully automatic operation.
• A powerful drive motor provides the power, and the Smart NC-100 technology is programmable up to 100 different jobs.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Oversized hydraulic cylinder
• Twin column design ensures rigid support during cutting cycle
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise positioning, and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads, and an additional wire brush
• Operation and parts manual
• Specifications
• Machine Style: Automatic
• Drive Type: Inverter Controlled Variable Speed
• Hydraulic Pump Motor: 1HP
• Hydraulic Oil Capacity: 6.6 gallons
• Blade Tension: hydraulic
• Coolant: recirculating
• Coolant capacity: 11.9 gallons
• Feed Length/Index: 15.86”
• Electrical Requirements: 230V Three Phase 5HP
• Machine Dims: 80” x 79” x 70”
• Approx Weight: 3,509 lbs
• Cutting Capacities @ 90°
• Round: 12.6”
• Square: 12.6”
• Rectangular: 15” x 12.6”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• HD Roll Tables, Various Sizes
• Stock Stand Assembly (P11)
• Vise Press Regulator (VP13NC)
• Blade Deviation Detector reduces Capacity 50mm (H13-BDD)
• Chip Conveyor (CM1301N)
• Hydraulic Bundle Clamps (CM1302N)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H1315NC
• Shipping Method: Flatbed
• Weight: 3,766 lb
• Dimensions: 85 × 84 × 75 in
