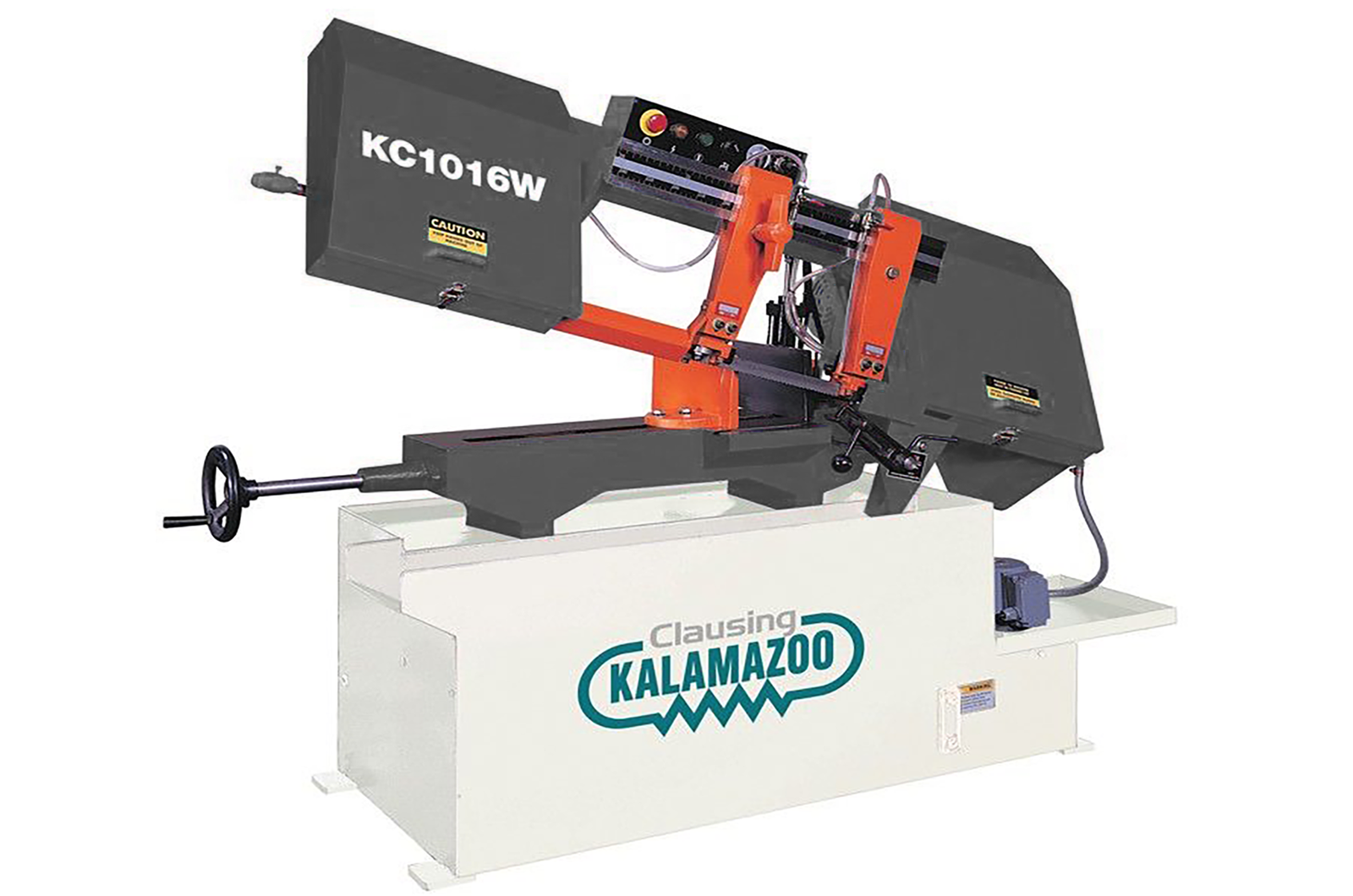

Clausing Kalamazoo 230V Three Phase 10” Manual 4-Speed Horizontal Bandsaw with Quick Acting Vise KC1016W

Clausing Kalamazoo 230V Three Phase 10” Manual 4-Speed Horizontal Bandsaw with Quick Acting Vise KC1016W is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade size: 1” x 0.035” x 132”
• Band wheel diameter: 15” flanged cast iron
• Bed height: 25”
• Blade speeds (4-speed): 75, 121, 190, 305 FPM
• Description
• This Clausing Kalamazoo Manual Horizontal Bandsaw comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level. The valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.
• Features
• 2HP drive motors with magnetic starter and overload protection
• Magnetic starter with overload protection
• 4-speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
• Totally enclosed transmission
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Pan shaped base with built-in coolant and hydraulic system
• Cast iron bed
• Cast iron quick acting 0°-45° vise with manual leadscrew clamping system
• Two additional bearing to support blade from the top
• Recirculating coolant system with application through both guides
• Blade brush
• Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
• Adjustable stock stop
• Simplified control switches mounted on saw head
• Anti-slip hand wheel
• Easy blade change with front access at waist level
• 1” wide blade
• Tools
• Operation and parts manual
• Cutting Capacities
• 90° Round: 10” Rectangular: 9” x 14.5”
• Round: 10”
• Rectangular: 9” x 14.5”
• 45° Round: 9” Rectangular: 9” x 9”
• Round: 9”
• Rectangular: 9” x 9”
• Specifications
• Electrical Requirements: 230V Three Phase 2HP
• Machine Dims: 66” x 28” x 69”
• Approx Weight: 720 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Band saw blade tension gauge (BT01)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KC1016W
• Shipping Method: LTL Freight
• Weight: 885 lb
• Dimensions: 68 × 30 × 45 in
