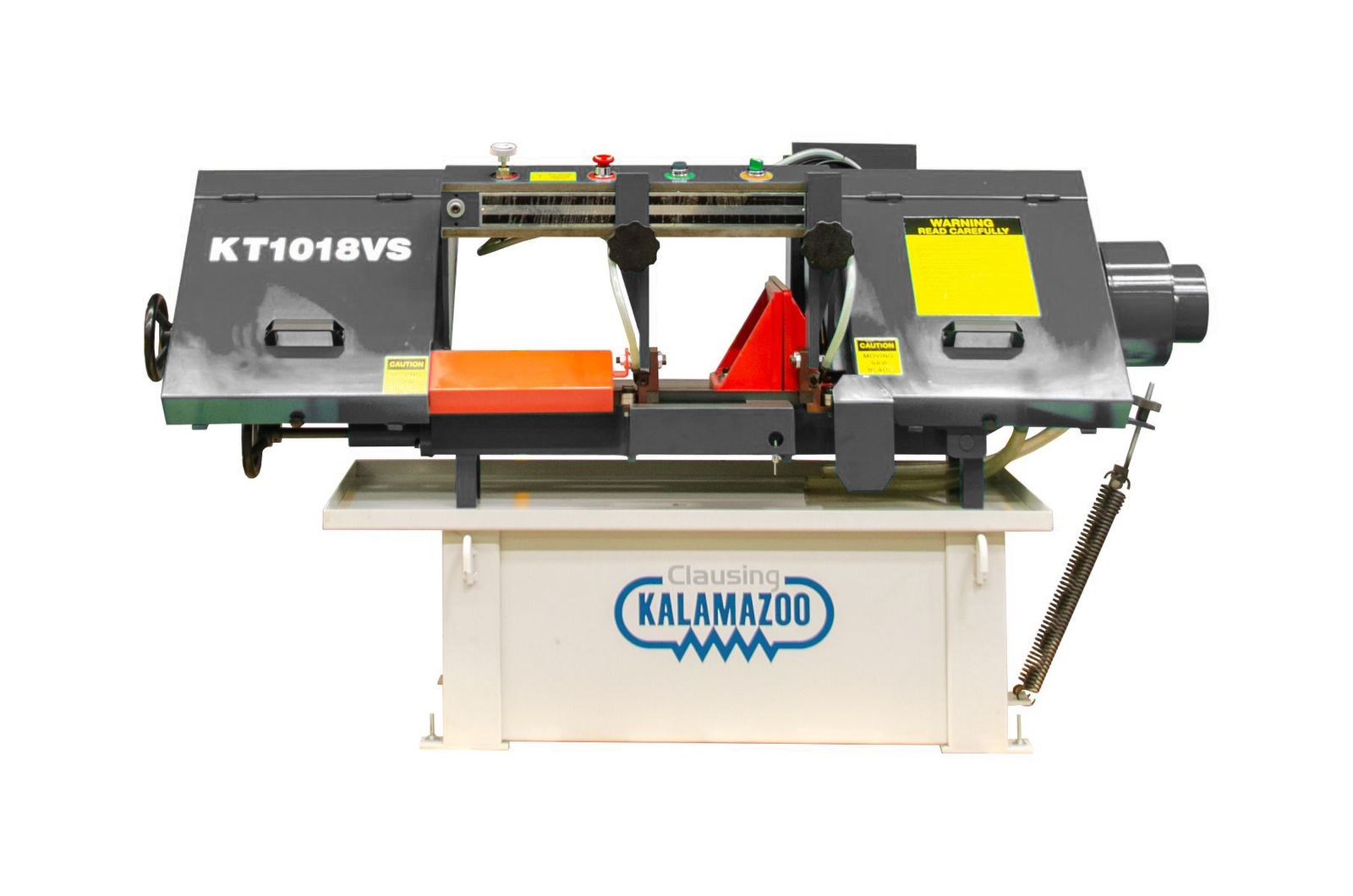

Clausing Kalamazoo 220V Single Phase 10”x18” Manual Variable-Speed Horizontal Bandsaw KT1018VS1

Clausing Kalamazoo 220V Single Phase 10”x18” Manual Variable-Speed Horizontal Bandsaw KT1018VS1 is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade size: 1” x 0.035” x 136.5”
• Blade wheel diameter: 15.4” flanged, cast iron
• Bed height: 21.8”
• Blade speeds (variable): 69-321 FPM
• Description
• This Clausing Kalamazoo Manual Horizontal Bandsaw comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level. The valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.
• Features
• 2HP drive motor with magnetic starter and overload protection
• Quick positioning 45° vise
• Cast iron bed
• Totally enclosed transmission
• Quick and simple speed change
• 1” wide blade
• Blade cleaning brush
• Solid carbide blade guides with rollers
• Recirculating coolant system with application through both guides
• Stock shop
• Easily adjusted head feed
• Head control is hydraulic cylinder operated by needle valve
• Cutting Capacities
• 90° Round: 10” Rectangular: 18”x6” or 10”x16”
• Round: 10”
• Rectangular: 18”x6” or 10”x16”
• 45° Round: 8” Rectangular: 8”x6” or 4”x9” or 3”x10”
• Round: 8”
• Rectangular: 8”x6” or 4”x9” or 3”x10”
• Specifications
• Electrical Requirements: 220V Single Phase 2HP
• Machine Dims: 75” x 40” x 61”
• Approx. Weight: 780 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Bandsaw blade tension gauge (BT01)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KT1018VS1
• Shipping Method: LTL Freight
• Weight: 911 lb
• Dimensions: 81 × 36 × 46 in
