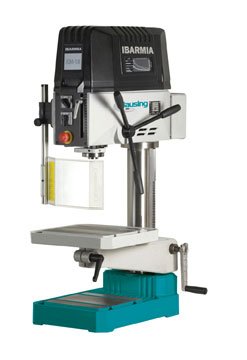

Clausing Erlo Belt-Drive 230V Three Phase 19.7” 10-Speed Step-Pulley Round-Column Bench Drill Press KS18

Clausing Erlo Belt-Drive 230V Three Phase 19.7” 10-Speed Step-Pulley Round-Column Bench Drill Press KS18 is a Clausing Industrial product in the Drill Presses collection.

Product Details

• Spindle taper: 3MT
• Quill diameter: 2.44”
• Spindle travel (drilling depth): 4.72”
• Spindle Speeds (10, step pulley): 294/426/588/852/1002/1488/2004/2400/2976/4800 rpm
• Features
• Depth scale and adjustable depth stop
• Thermomagnetic switch
• Spindle reversing switch
• Automatic tool ejector
• Emergency STOP
• High/low speed range selector
• Drill guard with micro switch
• Capacities
• Drilling Steel: 0.71” Cast iron: 1”
• Steel: 0.71”
• Cast iron: 1”
• Tapping Steel: 0.55” Cast iron: 0.71”
• Steel: 0.55”
• Cast iron: 0.71”
• Specifications
• Base to spindle: 20.9”
• Spindle center to column: 9.84”
• Spindle to table (min/max): 1.18” / 12.6”
• Worktable dims: 10.6” x 11.8”
• Column diameter: 3.93”
• Electrical Requirements: 230V Three Phase 0.6HP
• Machine Dims: 22” x 15” x 43”
• Approx Weight: 506 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Rotating intermediate table (MIG-K)
• Fixed intermediate table (MIF-K)
• Front wheel for fine quill feed (VWH-K)
• Depth scale read-out system (LBC-K)
• Auto spindle reversing for tapping multi head (RS-K)
• Hydro-pneumatic power feed unit (HB-K)
• Coolant system in base (ERB-K)
• Cross table (MB-1)
• Oversized table (MB-44)
• Solid fixed base table (MB-55)
• Floor cabinet w/shelves (PKA-K)
• Floor cabinet w/drawer (PKB-K)
• 3/16” to ¾” drill chuck with key (1897)
• 3JT to 3MT arbor (1898)
• Emergency stop foot pedal (PPE)
• Cycle start foot pedal (PST)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KS18
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 28 × 23 × 50 in
