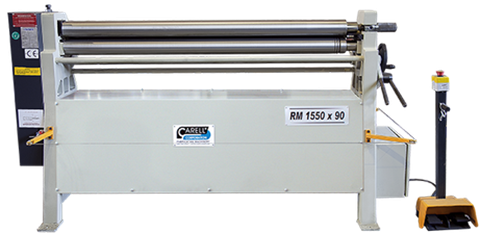

Carell Industrial HRM Series 5’ x 14Ga 230V Three Phase 3-Roll Hydraulic Initial-Pinch Plate Roll 1550×90

Carell Industrial HRM Series 5’ x 14Ga 230V Three Phase 3-Roll Hydraulic Initial-Pinch Plate Roll 1550×90 is a Carell Industrial Solutions product in the Plate Roll collection.

Product Details

• Useful length maximum: 60”
• Max rolling thickness: 14Ga
• Roll diameters: 3.54” (90mm)
• Rotation/Production velocity: 16 fpm
• Description
• Carell’s HRM Series I.P. Sheet Rolls are 3-roll, single initial pinch plate bending machines with Hydraulic Adjustment of the lateral bending roll, powered rotation of upper and lower pinch rolls, LED readout, cone device and hardened rolls.
• Features
• Both upper and central pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock gears
• Base in electro-welded and/or reinforced spheroidal cast steel, stress relieved
• Lateral roll, idle and moving on roller bearings
• Central pinch roll pinch pressure adjustable by ergonomic easy adjust cam
• Front lateral release top roll with spring loaded lock
• Hydraulic lateral roll movement via push button controlled dual hydraulic pistons
• Lateral bending roll tilting for cone working via push buttons on control console
• Integral hydraulic power pack with pressure gauge and pressure adjustment
• Low voltage console with foot pedals rotation, push buttons & E-stop
• Multi point safety system including circumferential trip wire
• 3 rod grooves on lower rolls for up to ¼”, 3/8”, and ½” rod
• Instruction Manaul, LED readout, Cone Device, and Hardened & Polished Rolls
• Specifications
• Max bending: 60” x 16Ga
• Installed Power: 2.0 HP
• Electrical Requirements: 230V Three Phase 60Hz
• Machine Dims: 95” x 28” x 47”
• Approx Weight: 1,280 lbs
• Optional Add-Ons
• Power rotation on bending roll

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: HRM 1550×90
• Shipping Method: Flatbed
• Weight: 1,330 lb
• Dimensions: 70 × 42 × 40 in
