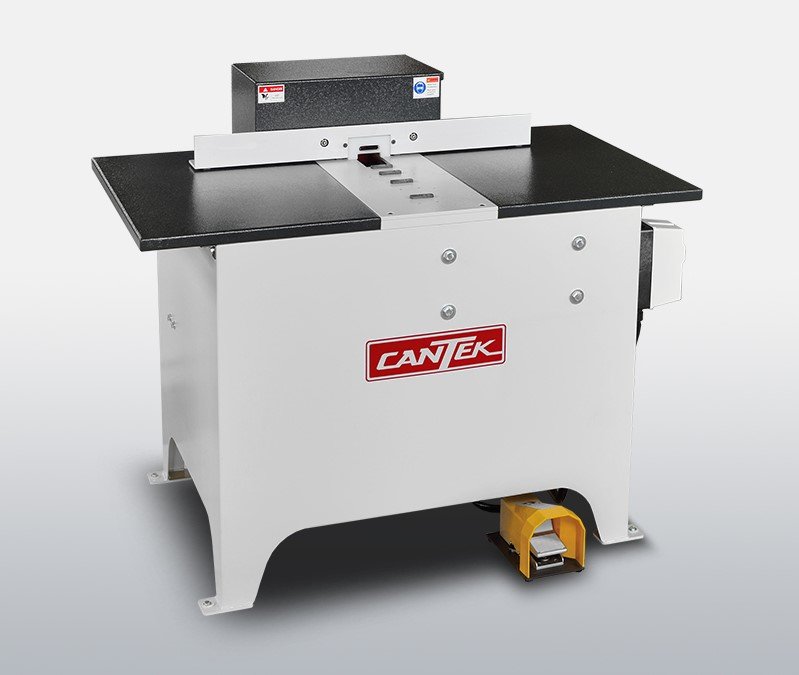

Cantek 3HP 460V 2.25” Drawer Notcher JEN60

Cantek 3HP 460V 2.25” Drawer Notcher JEN60 is a Cantek product in the Notchers collection.

Product Details

• Notch Dimensions: 2.25” x 0.5” high
• Cutter Diameter: 10”
• Drill Diameter: 0.25”
• Table Size: 49” x 22”
• Adding undermount hardware to your cabinet drawers just got easier.
• The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides. The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching. With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.
• Why Cantek JEN60 Drawer Notcher?
• High production capacity of up to 220 drawers machined per hour.
• 57mm (2 ¼”) wide cutter head allows you to machine notches for a wide range of undermount drawer slides without needing to change heads or machine the component twice.
• Self-indexing drill unit for left or right drawer notching.
• Convenient foot pedal operation lets operator efficiently load and unload drawers for higher output.
• Key Advantages
• Pneumatic cutter & drill stroke by foot pedal operation.
• Cutter stroke and drill speed are adjustable for optimum finish results
• Drill will automatically position for both left and right drawer notches by activating a switch in the fence
• Machine will not cycle unless a drawer is up against the switch for safe operation
• Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
• 2 ¼” (57mm) wide cutter allows for a wide range of undermount slides
• Comes with insert cutterhead with inserts and ¼” (6.3mm) solid carbide drill bit.
• Capable of notching up to 220 drawer boxes (both left and right) per hour.
• Features
• Drawer sample with left and right drawer notches

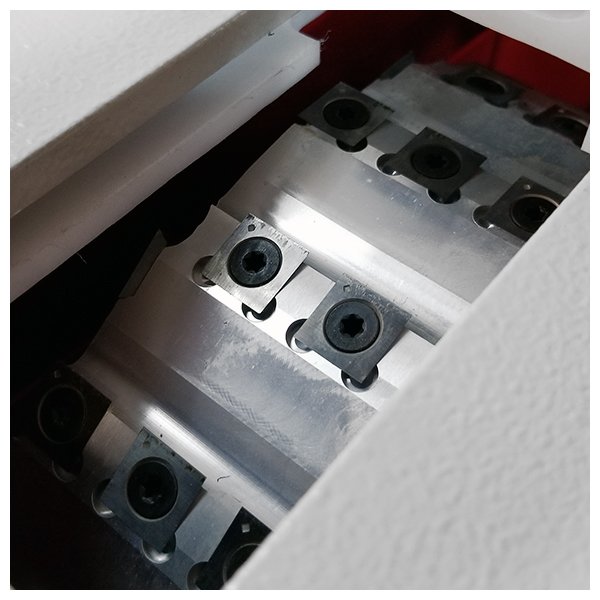

• Insert cutterhead remains below the table under a guard until in operation
• Simple drawer location stops and left and right limit switches for drill location
• 2.25” wide aluminum body insert knife cutterhead with replaceable carbide insert knives
• Convenient foot pedal operation

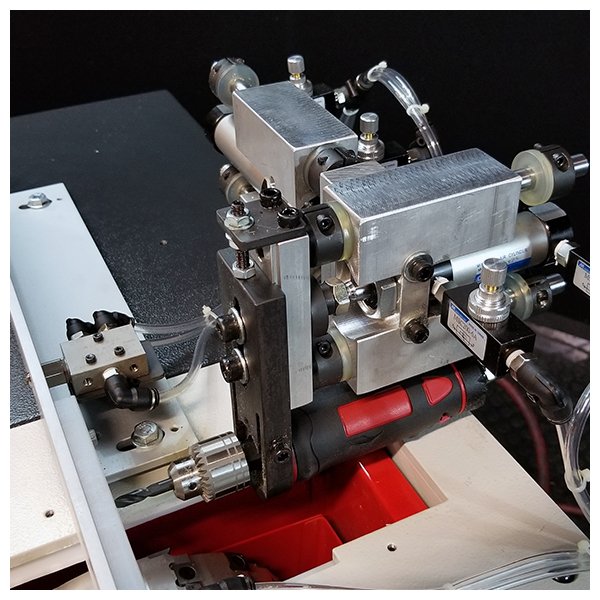

• Self-indexing drill unit
• Specifications
• Main Cutter Motor: 3 HP
• Voltage: 460V
• Hz: 60
• Notch Dimensions: 2.25” (57mm) x 0.5” high
• Table Height from Floor: 32”
• Dust Port: 2 x 4” (1,340 CFM Requirement)
• Compressed Air Required: 90-100 PSI
• Machine Dimensions: 49” x 37.75” x 39.75”
• Machine Weight: 506 lbs.

Specifications

• Manufacturer: Cantek
• SKU: JEN60 (460V)
• Shipping Method: LTL Freight
• Weight: 510 lb
• Dimensions: 53 × 43 × 45 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
