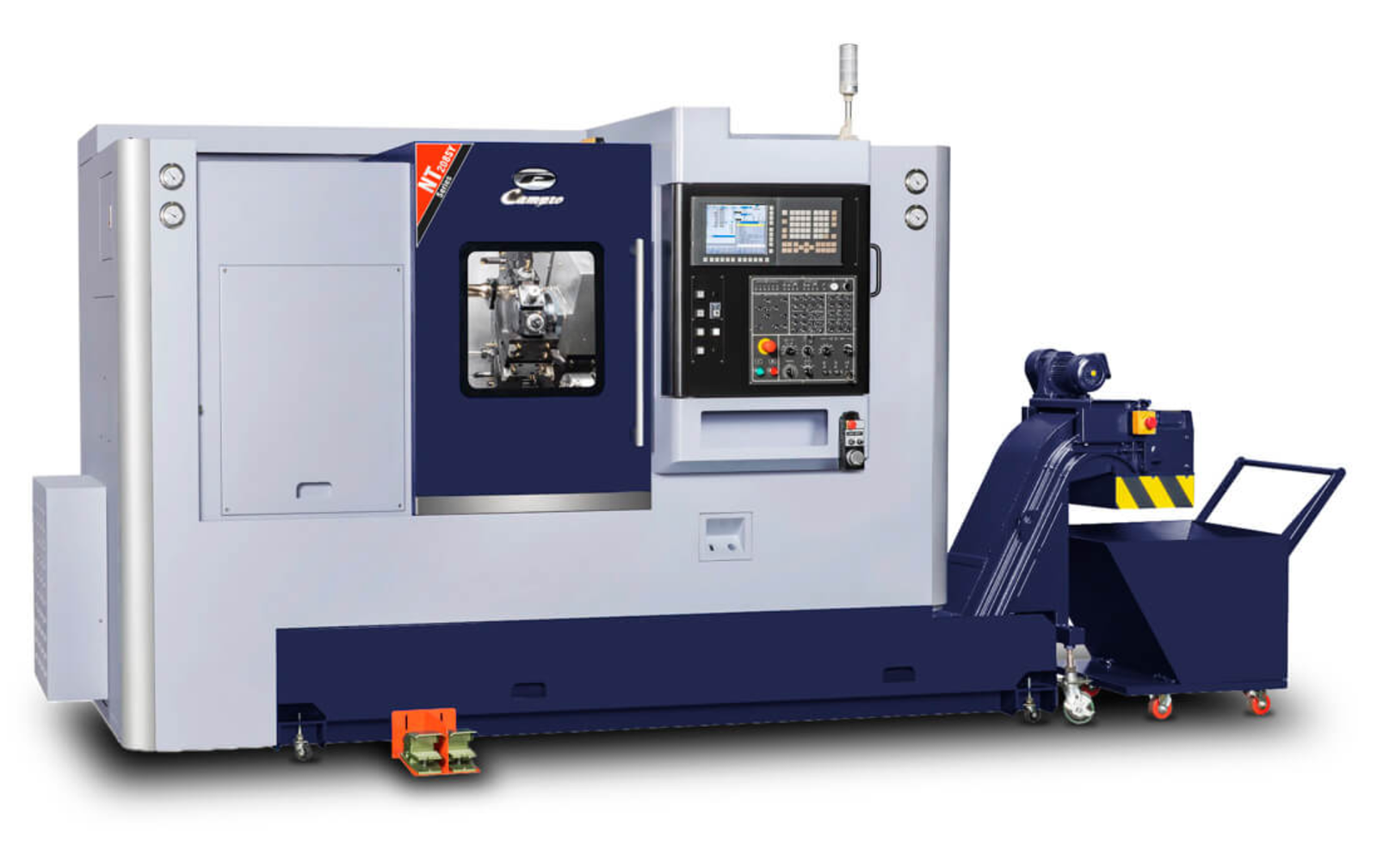

Campro USA Three Phase Y Axis CNC Lathe Turning Center with 8” Chuck and 6” Sub-Spindle NT-208SY

Campro USA Three Phase Y Axis CNC Lathe Turning Center with 8” Chuck and 6” Sub-Spindle NT-208SY is a Campro USA product in the Lathes collection.

Product Details

• Swing over bed: 26.7”
• Swing over cross slides: 18.1”
• Maximum turning diameter: 15.7”
• Maximum turning length: 20.4”
• Description
• The NT-208SY is Campro's highly flexible and profitable CNC Turning Center
• High-performance heavy-duty box guideways, 30 Degree cast iron inclined bed to ensure quick chip evacuation.
• Campro USA’s NT-208SY CNC Turning Center is based on a high-quality cast-iron bed for superior rigidity and anti-vibration characteristics.
• 30 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production Management System) represents the first step in smart manufacturing.
• Features
• 3-jaw, 8” hydraulic chuck
• Chain type chip conveyor with bucket
• Coolant system
• Oil skimmer
• Tool box
• Instruction manual, parts list, and electrical diagram
• Fanuc operator and maintenance manuals
• WARRANTY-Machine: One Year, Parts
• WARRANTY-Control: Two Years, Parts & Labor
• Specifications
• Working Area Swing over bed: 26.7” Swing over cross slides: 18.1” Maximum turning diameter: 15.7” Maximum turning length: 20.4”
• Travel X Axis Travel: 8.6” Y Axis Travel: 3.9” Z Axis Travel: 24.8” Rapid Traverse: 787 / 393 / 945 IPM
• X Axis Travel: 8.6”
• Y Axis Travel: 3.9”
• Z Axis Travel: 24.8”
• Rapid Traverse: 787 / 393 / 945 IPM
• Spindle Spindle Motor: 20 HP Maximum Speed: 4,200 RPM Hydraulic Chuck: 8” Spindle Nose: A2-6 Hole Through Draw Tube: 2.05”
• Spindle Motor: 20 HP
• Maximum Speed: 4,200 RPM
• Hydraulic Chuck: 8”
• Spindle Nose: A2-6
• Hole Through Draw Tube: 2.05”
• Turret Tooling Style: BMT-55 Turrent Type: 12 – Servo driven Tool Size OD / ID: 1” / 1.5” Maximum Live Tools Speed: 5,000 RPM One Axial and one Radial BMT live holder included
• Tooling Style: BMT-55
• Turrent Type: 12 – Servo driven
• Tool Size OD / ID: 1” / 1.5”
• Maximum Live Tools Speed: 5,000 RPM
• One Axial and one Radial BMT live holder included
• Sub Spindle Chuck Size: 6” Travel: 19.6” Maximum Speed: 5,000 RPM Spindle Nose: A2-5 Hole Through Draw Tube: 1.7” Spindle Motor: 10 HP
• Chuck Size: 6”
• Travel: 19.6”
• Maximum Speed: 5,000 RPM
• Spindle Nose: A2-5
• Hole Through Draw Tube: 1.7”
• Spindle Motor: 10 HP
• General Floor Space Required (W x D): 167” X 84” Height: 93.7” W / Work Light Machine Weight: 10,360 lbs. Standard Power Source: 205-235 Volts / 3 Phase / 60HZ Power Capacity Minimum: 30 KVA
• Floor Space Required (W x D): 167” X 84”
• Height: 93.7” W / Work Light
• Machine Weight: 10,360 lbs.
• Standard Power Source: 205-235 Volts / 3 Phase / 60HZ
• Power Capacity Minimum: 30 KVA
• Options
• Special Purposed Chip Conveyor
• Oil mist Collector
• Parts Catcher
• Automatic Bar Feeder Interface
• Automatic Door
• Automatic Power Off
• 66 mm Hole Through Draw Tube for A2-6 Spindle Nose
• Coolant Gun
• Air Gun
• CE Modification
• Transformer

Specifications

• Manufacturer: Campro USA
• SKU: NT-208SY
• Shipping Method: Flatbed
• Weight: 10,460 lb
• Dimensions: 172 × 89 × 99 in
