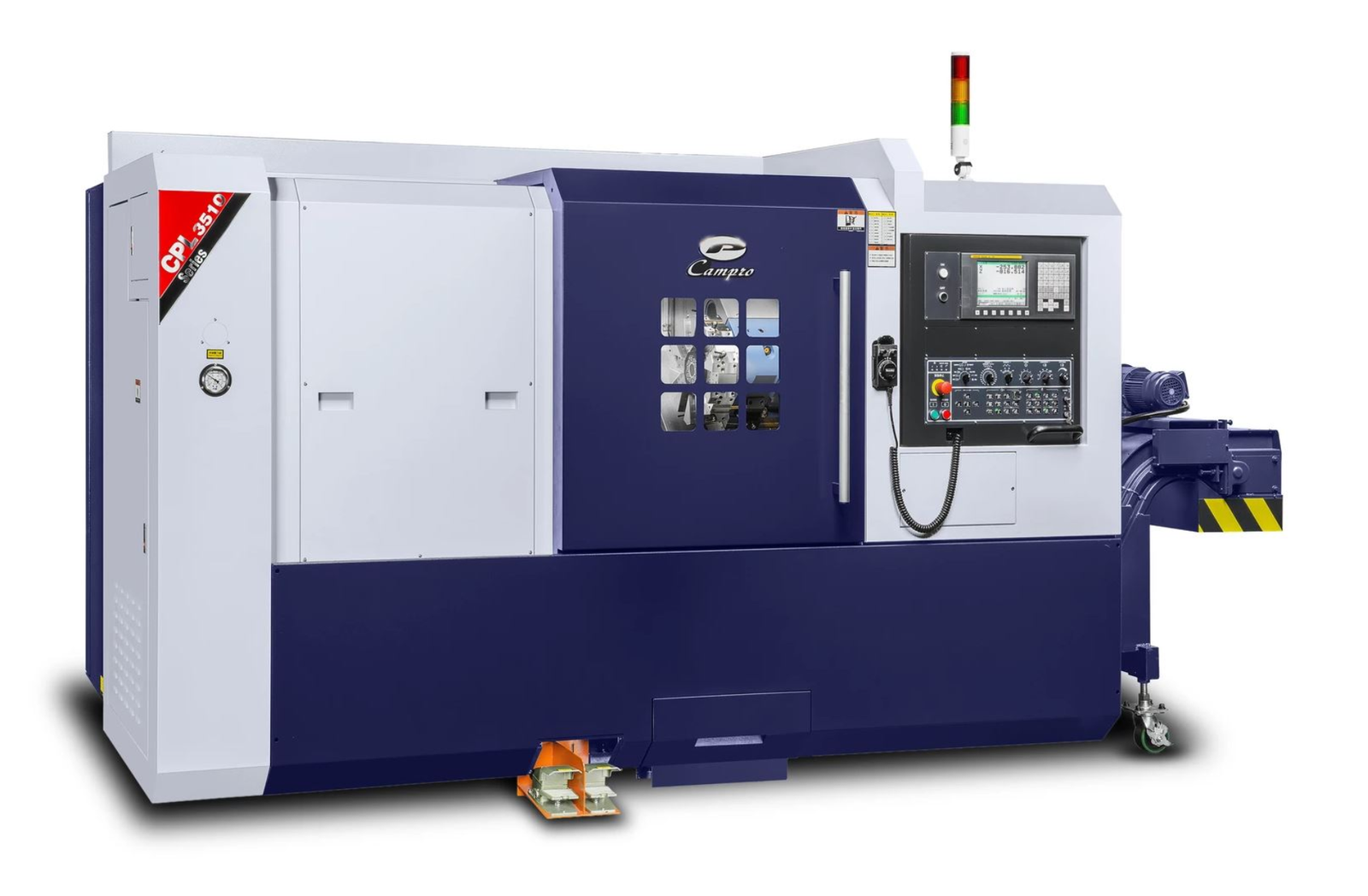

Campro USA Three Phase Two Axis CNC Lathe Turning Center with 10” Chuck CPL-3510

Campro USA Three Phase Two Axis CNC Lathe Turning Center with 10” Chuck CPL-3510 is a Campro USA product in the Lathes collection.

Product Details

• Swing Over Bed: 22.4”
• Swing Over Cross Slides: 14.4”
• Maximum Turning Diameter: 15.7”
• Maximum Turning Length: 27.5”
• Description
• The CPL series is Campro's highly flexible and profitable CNC Turning Center. High performance linear motion guideways, One Piece, 45 Degree cast iron inclined bed to ensure quick chip evacuation. Campro USA’s CPL series CNC Turning Center is based on a high quality one piece cast iron bed for superior rigidity and anti-vibration characteristics. 45 degree cast iron inclined bed ensures quick chip evacuation. The new CPMS (Campro Production Management System) represents the first step in smart manufacturing.
• Features
• 3-Jaw Power 10” Hydraulic Chuck
• Hard Jaw: 1 Set
• Soft Jaw: 3 Set
• Hydraulic Unit
• Manual Tailstock
• Chain Type Chip Conveyor
• Coolant System
• Coolant Pump
• Pretensioned Ballscrews on 2 Axes
• Hand Wheel (MPG)
• Heat Exchanger
• Oil Skimmer
• 3-Color Signal Light
• Working Lamp
• Tool box
• Fanuc operator and maintenance manuals
• WARRANTY-Machine: One Year, Parts
• WARRANTY-Control: Two Years, Parts & Labor
• Specifications
• Working Area Swing Over Bed: 22.4” Swing Over Cross Slides: 14.4” Standard Turning Diameter: 12.5” Maximum Turning Diameter: 15.7” Maximum Turning Length: 27.5”
• Standard Turning Diameter: 12.5”
• Travel X Axis Travel: 7.9” + 0.78” Z Axis Travel: 27.5” Rapid Traverse: 945 IPM
• X Axis Travel: 7.9” + 0.78”
• Z Axis Travel: 27.5”
• Rapid Traverse: 945 IPM
• Spindle Spindle Motor: 30 / 35 HP Maximum Speed: 3,000 RPM Hydraulic Chuck: 10” Spindle Nose: A2-8 Hole Through Draw Tube: 3.0”
• Spindle Motor: 30 / 35 HP
• Maximum Speed: 3,000 RPM
• Hydraulic Chuck: 10”
• Spindle Nose: A2-8
• Hole Through Draw Tube: 3.0”
• Turret O.D. / I.D.: 1.0” / 1.57” Turret Type: 10 – Hydraulic
• O.D. / I.D.: 1.0” / 1.57”
• Turret Type: 10 – Hydraulic
• Tailstock Quill Diameter: 3.93” Quill Travel: 4.72” Quill Taper: MT – #5
• Quill Diameter: 3.93”
• Quill Travel: 4.72”
• Quill Taper: MT – #5
• General Floor Space Required (W x D): 149” X 68” Machine Weight: 12,126 lbs. Standard Power Source: 205-235 Volts / 3 Phase / 60HZ Power Capacity Minimum: 74 Amps (30 KVA)
• Floor Space Required (W x D): 149” X 68”
• Machine Weight: 12,126 lbs.
• Standard Power Source: 205-235 Volts / 3 Phase / 60HZ
• Power Capacity Minimum: 74 Amps (30 KVA)
• Options
• Collet chuck
• Programmable Tailstock
• Special Purposed Chip Conveyor
• Back Side Chip Removing (3510)
• Oil Mist Collector
• Tool Setter
• Parts Catcher
• Automatic Bar Feeder
• Automatic Door
• Automatic Power Off
• Servo Turret
• VDI Turret
• Air Condition
• CE Modification
• Transformer

Specifications

• Manufacturer: Campro USA
• SKU: CPL-3510
• Shipping Method: Flatbed
• Weight: 12,226 lb
• Dimensions: 154 × 73 × 92 in
