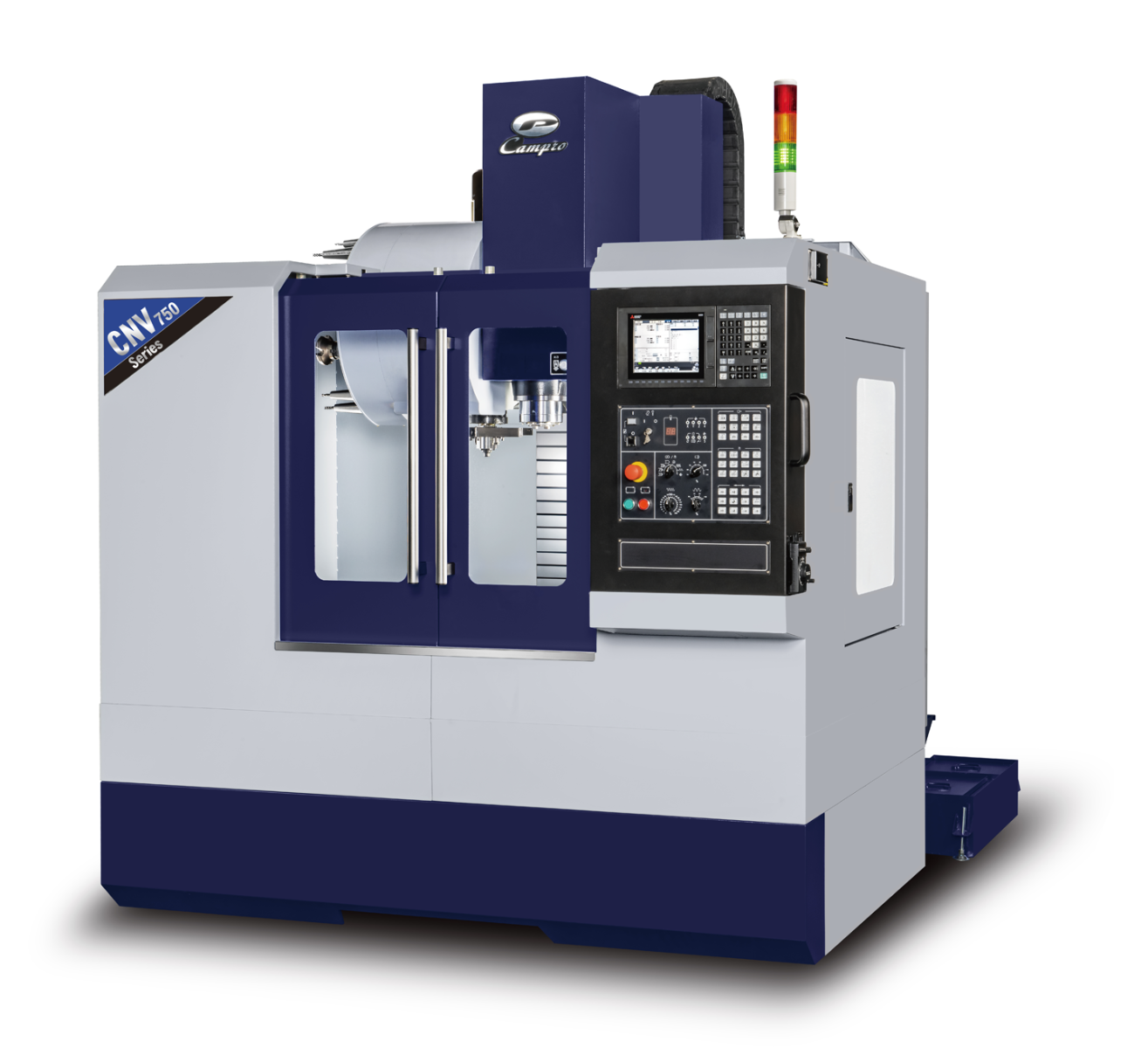

Campro USA 20HP 220V Three Phase 29.5″ x 16.9″ x 18.9″ Linear Way Vertical Machining Center CNV-750

Campro USA 20HP 220V Three Phase 29.5″ x 16.9″ x 18.9″ Linear Way Vertical Machining Center CNV-750 is a Campro USA product in the Mill Drills collection.

Product Details

• X Axis Travel: 29.5.”
• Y Axis Travel: 16.9”
• Z Axis Travel: 18.9”
• Max Table Load: 660 lbs.
• Description
• The CNV-750 is designed for long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.
• Constructed with high quality meehanite cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.
• The CNV-750 is equipped with high precision and heavy loading series linear guideways on all 3 axes. Automatic lubrication system for all linear guideways and ball screws.
• The base is reinforced by “A” type rib layout to upgrade absorption capability of vibration and is constructed of a box type structure for excellent rigidity. The machine structure is designed via Finite Element Analysis (FEA) and advanced 3D software.
• Features
• FANUC 0i-MF PLUS Control Type 1
• Twin Arm 20 Tool Capacity ATC
• 12,000 RPM Spindle
• CAT40 Big Plus Spindle
• Spindle Oil Cooler
• Powerful 20 HP Spindle Motor
• Additional M-Codes
• Flood Coolant
• Spindle Coolant
• Coolant Through Spindle Prep
• Air Blow
• Rigid Tapping
• Custom Macro B
• Portable Manual Pulse Generator
• Massive One-Piece Meehanite Cast Bed
• 4th Axis Prep
• Double Anchored, Pre-tensioned Ball Screws
• Fast 1,181 IPM Rapid Traverse rate
• Full Enclosure Splash Guard
• Work Light
• Operator Call Lamp (red, yellow, green)
• Assembly and Operation Tools
• Auto Power Off
• Heat Exchanger for Electrical Cabinet
• Machine Tool Manuals
• Fanuc Manuals
• WARRANTY-MACHINE: One-Year Parts Only
• WARRANTY-CONTROL: Two-Years Parts and Labor
• Specifications
• Capacity X Axis Travel: 29.5.” Y Axis Travel: 16.9” Z Axis Travel: 18.9” Distance from Spindle Nose to Table: 3.93” – 22.83” Distance from Spindle Center to Column: 19.09”
• Distance from Spindle Nose to Table: 3.93” – 22.83”
• Distance from Spindle Center to Column: 19.09”
• Table Table Loading Area: 33.46” X 16.92” Max Table Load: 660 lbs. T-Slots, width x spacing x # slots: 0.551” X 3.937” X 4”
• Table Loading Area: 33.46” X 16.92”
• T-Slots, width x spacing x # slots: 0.551” X 3.937” X 4”
• Spindle Spindle Speed: 12,000 RPM Spindle Motor: 20 HP Spindle Taper Type: CAT 40 Big Plus Spindle Driving Method: Belt Drive
• Spindle Speed: 12,000 RPM
• Spindle Motor: 20 HP
• Spindle Taper Type: CAT 40 Big Plus
• Spindle Driving Method: Belt Drive
• Auto Tool Changer ATC Type: Twin Arm Type Tool Shank: CAT 40 Pull Stud: P – 40T (45 Deg.) Tool Storage Capacity: 20 Max. Tool Dia.: 3.15” Max Tool Dia. (Adjacent Pot Empty): 5.1” Max Tool Length: 9.8” Max Tool Weight: 15 lbs. Tool Change Time TOOL – TOOL: 2.5 sec. Tool Change Time CHIP – CHIP: 7 sec. Tool Selection: Random Bi-Directional Type
• ATC Type: Twin Arm Type
• Tool Shank: CAT 40
• Pull Stud: P – 40T (45 Deg.)
• Tool Storage Capacity: 20
• Max. Tool Dia.: 3.15”
• Max Tool Dia. (Adjacent Pot Empty): 5.1”
• Max Tool Length: 9.8”
• Max Tool Weight: 15 lbs.
• Tool Change Time TOOL – TOOL: 2.5 sec.
• Tool Change Time CHIP – CHIP: 7 sec.
• Tool Selection: Random Bi-Directional Type
• Feed Rapid Traverse Feed rate: 1,181 IPM All Axes Cutting feed rate: 393 IPM Least Command Increment: 0.001 mm Positioning Accuracy: 0.00020” Repeatability: 0.00008” Slide Type: LM Guideways
• Rapid Traverse Feed rate: 1,181 IPM All Axes
• Cutting feed rate: 393 IPM
• Least Command Increment: 0.001 mm
• Positioning Accuracy: 0.00020”
• Repeatability: 0.00008”
• Slide Type: LM Guideways
• Power Air Source Requirement: 85 – 115 PSI (3/8 ID Supply Hose) Standard Power Source: 220V, 60HZ, 3 Phase +/- 10% Power Capacity: 40 Amps Minimum
• Air Source Requirement: 85 – 115 PSI (3/8 ID Supply Hose)
• Standard Power Source: 220V, 60HZ, 3 Phase +/- 10%
• Power Capacity: 40 Amps Minimum
• General Floor space required (W x D X H): 89” X 106” X 104” Machine weight: 7,260 lbs.
• Floor space required (W x D X H): 89” X 106” X 104”
• Machine weight: 7,260 lbs.
• Options
• 10,000 RPM / 12,000 RPM Belt Type Spindle
• 10,000 RPM / 12,000 RPM / 15,000 RPM I.D.D Spindle
• Chip Screw Conveyor
• Chain Type Chip Conveyor
• Coolant Through Spindle
• Deep Hole Adaptor
• Coolant Flushing Device
• High Pressure Coolant Pump
• Linear Scales
• CNC Rotary Table
• Automatic Tool Length Measurement
• Workpiece Measurement
• ATC Cover
• Fully Rear Cover
• Air Condition
• CE Modification
• Transformer

Specifications

• Manufacturer: Campro USA
• SKU: CNV-750
• Shipping Method: Flatbed
• Weight: 7,360 lb
• Dimensions: 111 × 94 × 109 in
