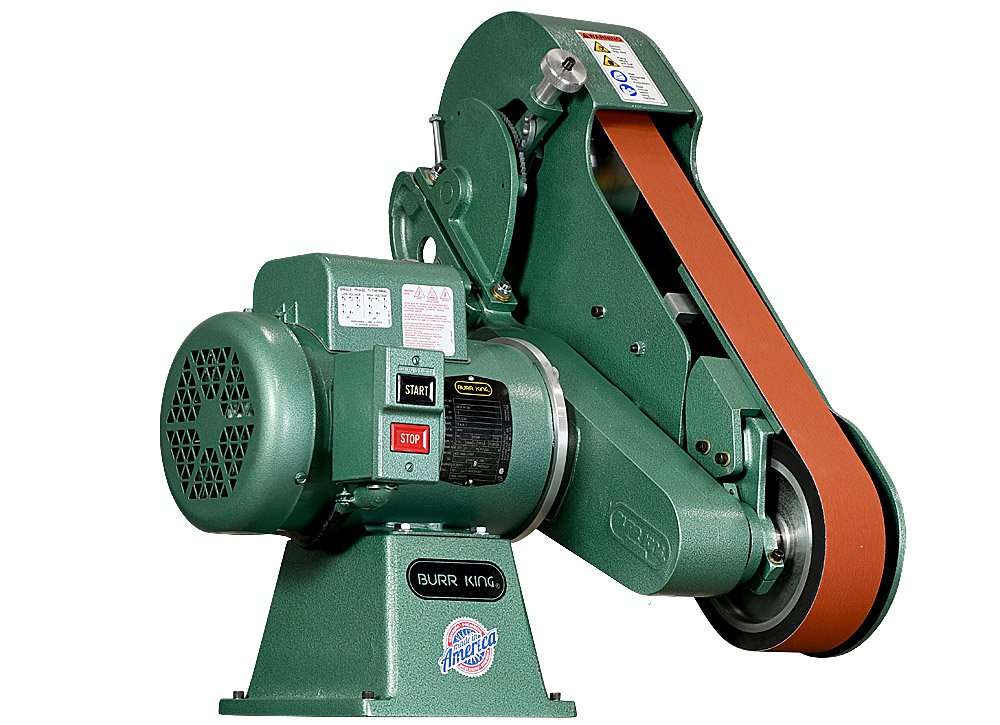

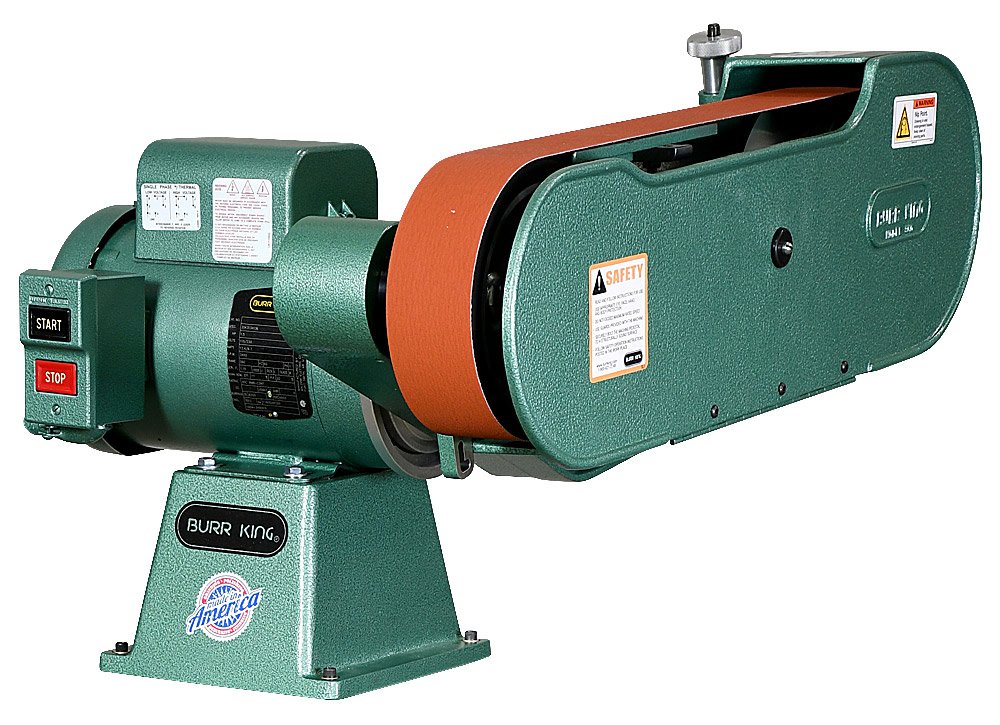

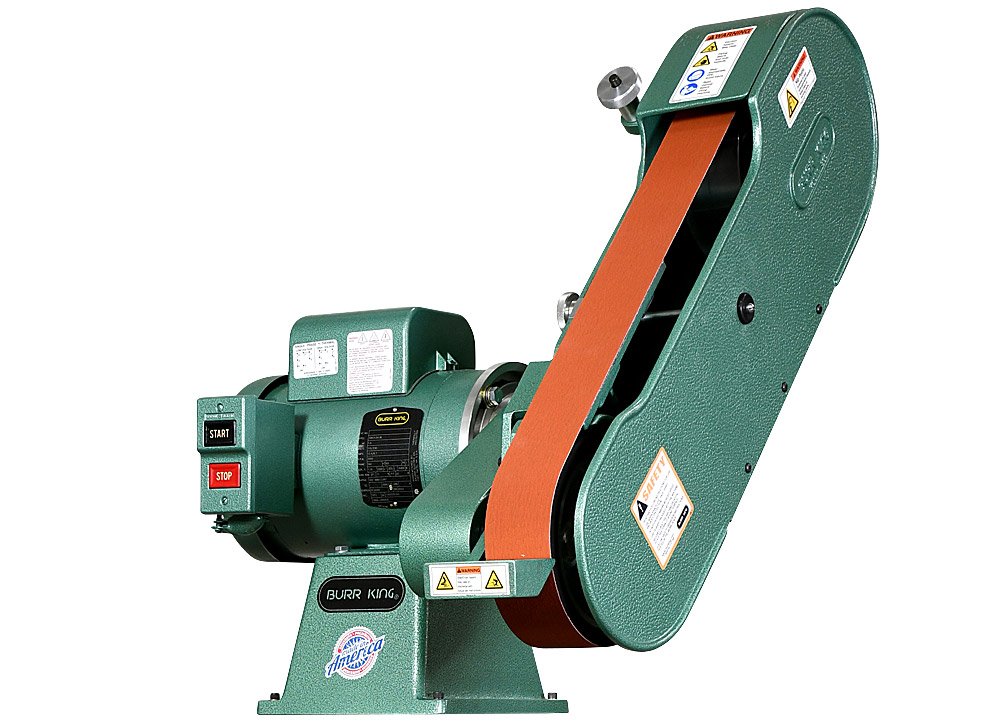

Burr King 2.5” x 60” Two Wheel 960-250 Fixed Speed 3 HP 440V Three Phase Belt Grinder 90803

Burr King 2.5” x 60” Two Wheel 960-250 Fixed Speed 3 HP 440V Three Phase Belt Grinder 90803 is a Burr King product in the Grinding & Sanding collection.

Product Details

• Fixed Speed: 8000 SFPM
• Contact Wheel Size: 7 x 2.5"
• Quick belt change
• Motor: 3 HP 440V Three Phase
• Description
• Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications. Model 960-250 has a standard 60" belt up to 2.5" wide and can be bench or pedestal mounted (pedestal not included).
• Features
• Contact wheel, platen and work support grinding
• Adjustable belt tension
• Positive belt tracking
• Up to 8000 SFPM belt speed standard
• Compact footprint friendly to "cell" manufacturing
• Adapts for "tool post" or "on center" grinding
• Adapts for robot mounts
• Precision machined cast aluminum frame
• OSHA compliant, enclosed guarding
• Specifications
• Motor: 3 HP 440V Three Phase 60Hz
• Wheels: 2
• Throat Clearance: None
• Contact Wheel Hardness: 55 Duro
• Belt Tension Quick Change Assembly: Yes
• Positive Belt Tracking Adjustment: Yes
• Overall Height, Width, Depth: 30" x 21" x 30"
• Safety Belt Guard: Yes
• Base Area: 8.5" x 8"
• Steel Backup Platen: 2.5" x 8"
• Adjustable Work Rest: Yes
• Construction: Cast Aluminum
• Bench or Pedestal Mounted: Yes
• Pedestal Included: No
• Process Evaluation: Grinding
• Main Application: Belt Grinding
• Available Accessories
• Optional Pedestal Mounts
• Magnetic Starter
• Dust Scoop

Specifications

• Manufacturer: Burr King
• SKU: 90803
• Shipping Method: LTL Freight
• Weight: 130 lb
• Dimensions: 24 × 22 × 27.5 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
