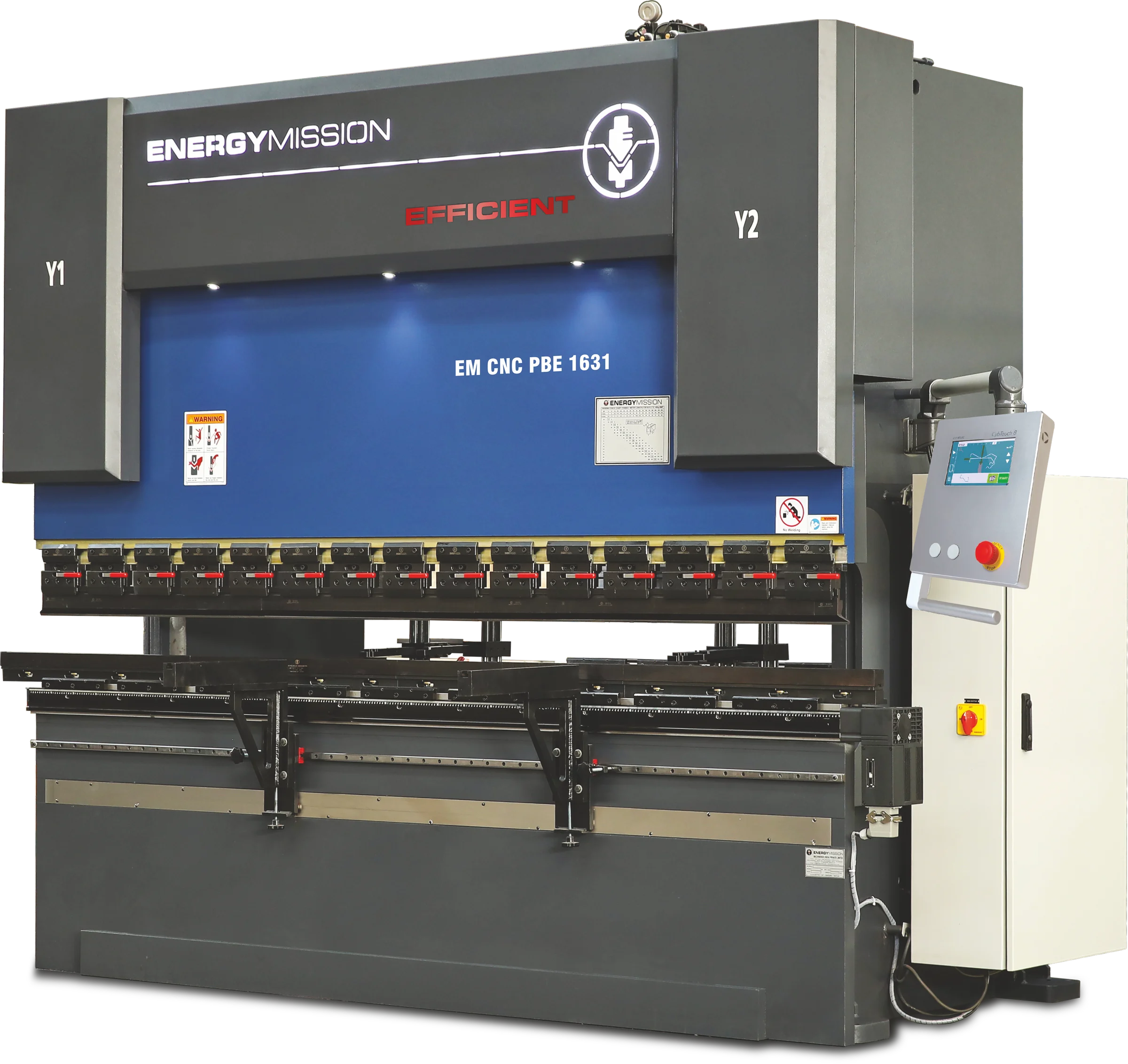

Bud’s Machine Tools Efficient Series 65 Ton x 10ft 220V Three Phase Hydraulic CNC Press Brake PBE-631

Bud’s Machine Tools Efficient Series 65 Ton x 10ft 220V Three Phase Hydraulic CNC Press Brake PBE-631 is a Bud’s Machine Tools product in the Press Brakes collection.

Product Details

• Tonnage: 65 Ton
• Table Length: 122”
• Bending Capacity: 0.07” x 122”
• Clear Pass: 102”
• Description
• The CNC Press Brake is a modern press brake with precise automation & state of the art technology for achieving best results on fabrication jobs. It eliminates the need to adjust bending degrees & marking of bending positions on the job.
• The operator can make programs with different degrees & different gauge positions. In turn, we can save time on material handling & job marking. The operator can finish the complete job in one sequence even if different bending degrees & different edge dimensions are required thereby enhancing the productivity of the machine.
• Features
• 3 Axis machine with automatic, accurate & fast back gauge
• CybTouch 8PS Controller from CYBELEC Switzerland
• Rigid upper beam guide on 12-point roller bearings
• Ultrasonically & tensile tested IS:2062 grade steel structure ensures the rigidity & avoid deflection
• The frame is machined on Floor Boring Machine ensuring single reference accurate machining
• Quick release clamps
• Back gauge assembly included ball screw, AC Servo drive, LM guides & timer belt
• Back gauge fingers mounted on LM guide
• Quick “V” groove change over with self-centered die with rail
• Hardened & grounded 2’V’ / 4’V’ die & semi gooseneck punch
• Front sliding sheet support with LM guides for easy movement
• Energy Efficient: reduce power consumption by 40-45%
• Stable hydraulic oil temperature ensures consistent accuracy
• Accuracies
• Press Beam Depth Accuracy: ± 0.01mm
• Press Beam Depth Repeatability: ± 0.01mm
• Back Gauge Accuracy: ± 0.1mm
• Back Gauge Repeatability: ± 0.1mm
• Specifications
• Table Length: 3100mm (122.047”)
• Bending Length:2mm (0.0787”)
• Bending Capacity: 2mm x 3100mm (0.0787” x 122.047”)
• Clear Pass: 2600mm (102.36”)
• Open Daylight: 385mm (15.16”)
• Stroke: 200mm (7.874”)
• Table Height: 850mm (33.46”)
• Throat Depth: 250mm (9.843”)
• X-Axis Travel: 400mm (15.75”)
• Approach/Working/Return Speed: 100-7-80 mm/sec
• Main Motor: 5HP
• Electrical Requirements: 220V Three Phase
• Dimensions (LxWxH): 138” x 49” x 100”
• Weight: 14,000 lbs
• Optional Add-Ons
• Additional R Axis
• Automatic Bi-Directional Crowning
• Manual Crowing
• Pair of Joystick Backdrop Fingers

Specifications

• Manufacturer: Bud's Machine Tools
• SKU: EM-CNC-PBE-631
• Shipping Method: Flatbed
• Weight: 14,200 lb
• Dimensions: 148 × 59 × 110 in
• Country of Origin: India
