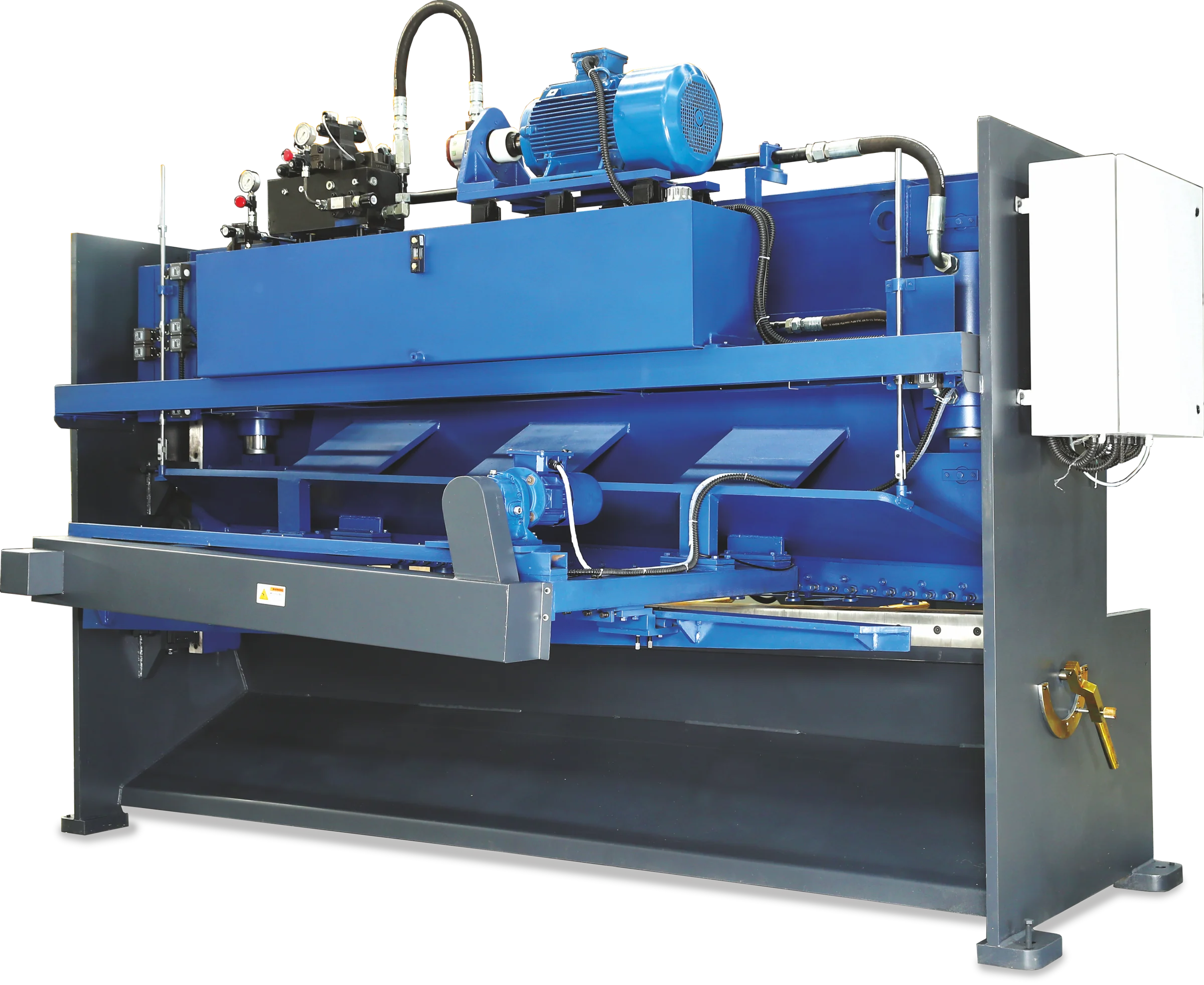

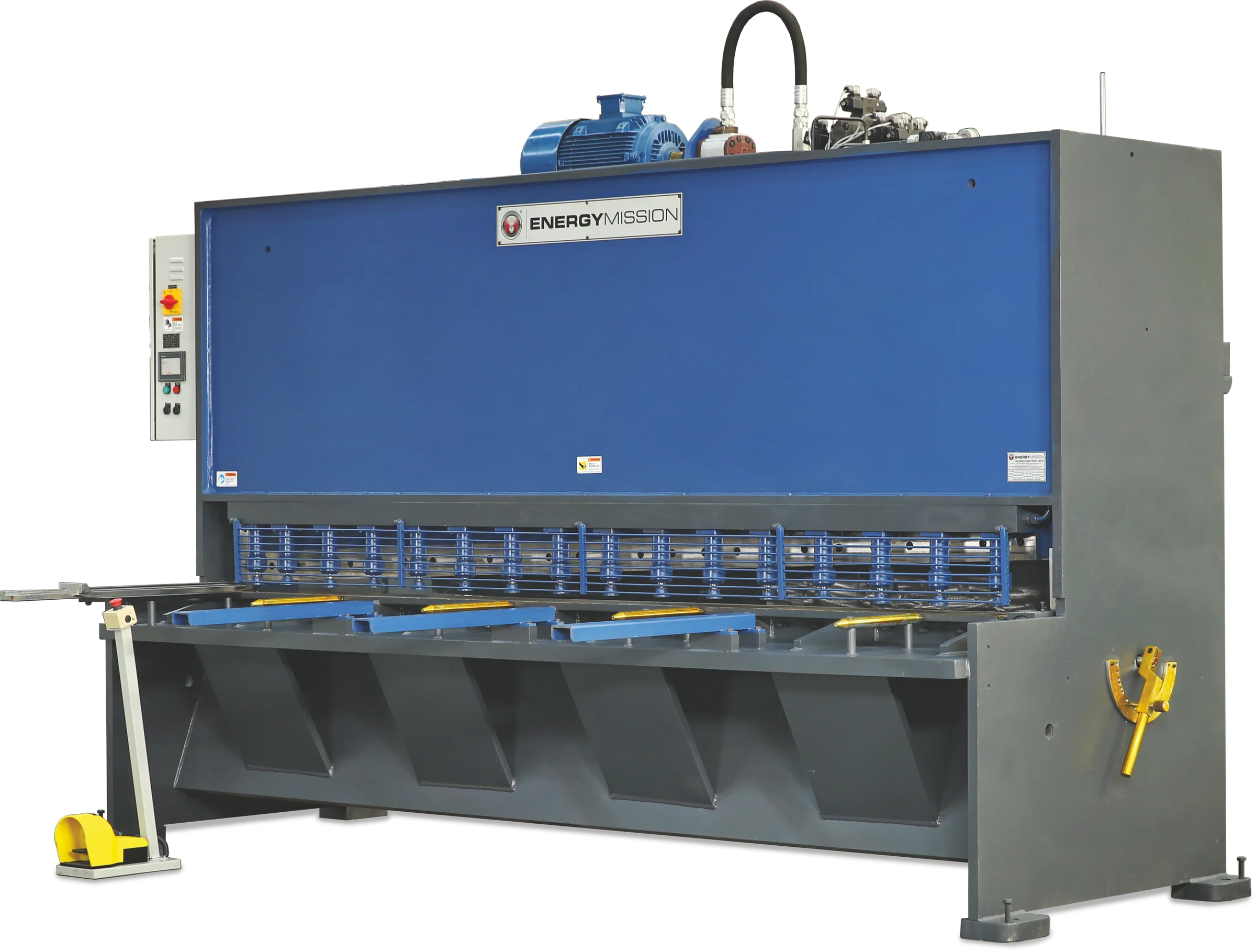

Bud’s Machine Tools 78” 220V Three Phase Hydraulic Sheet Metal Shear HVR-1020

Bud’s Machine Tools 78” 220V Three Phase Hydraulic Sheet Metal Shear HVR-1020 is a Bud’s Machine Tools product in the Shears collection.

Product Details

• Shearing length: 78.75”
• Working Height: 32.48”
• Capacity (Mild Steel): 0.40”/0.50”
• Blade Size: 1” x 4” x 82.68”
• Features
• Guillotine type hydraulically variable rake angle design
• Twist free & better cutting result in thin sheets at lower rake angle
• Cutting job accuracy as per DIN Standard
• Higher cutting capacity than rated capacity at higher rake angle
• The stable & robust structure from ultrasonically & tensile tested IS 2062 grade steel
• Rigid box type structure of ram & table with inclined member in direction of resultant force
• Hydraulic & electrical safety interlocks for overloading
• NC upgradation possible as add-on
• Bolted type Square Box assembly for holding cylinder mounting
• Special guided seal for holding cylinder to avoid leakage
• All electrical & hydraulic components from reputed make
• Ram guided by six hardened & grounded guide rollers suitable for upgradation with special optional features
• Specifications
• Shearing Capacity Thickness Mild Steel: 0.40”/0.50” Stainless Steel: 0.30”/0.40”
• Mild Steel: 0.40”/0.50”
• Stainless Steel: 0.30”/0.40”
• Variable Angle Range: 0.5°-3°
• Number of Strokes per Minute @ Max Rake Angle: 5 @ Min Rake Angle: 13
• @ Max Rake Angle: 5
• @ Min Rake Angle: 13
• Number of Hold Down Cylinders: 11
• Oil Tank Capacity: 200 liters
• Oil Specification: 68 Grade Hyd. Oil
• Back Gauge Travel: 39.3”
• Motor Power: 15HP
• Electrical Requirements: 220V Three Phase
• Dimensions (LxWxH): 124” x 110.24” x 90.5”
• Weight: 13,230 lbs
• Optional Add-Ons
• Power Back Gauge with DRO up to 3,000mm
• Power Back Gauge with DRO above 3,000 to 6,000mm
• NC Back Gauge with Cybelec Controller up to 3,000mm
• NC Back Gauge with Cybelec Controller above 3,000 to 6,000mm

Specifications

• Manufacturer: Bud's Machine Tools
• SKU: EM-HVR-1020
• Shipping Method: Flatbed
• Weight: 13,400 lb
• Dimensions: 130 × 115 × 95 in
• Country of Origin: India
