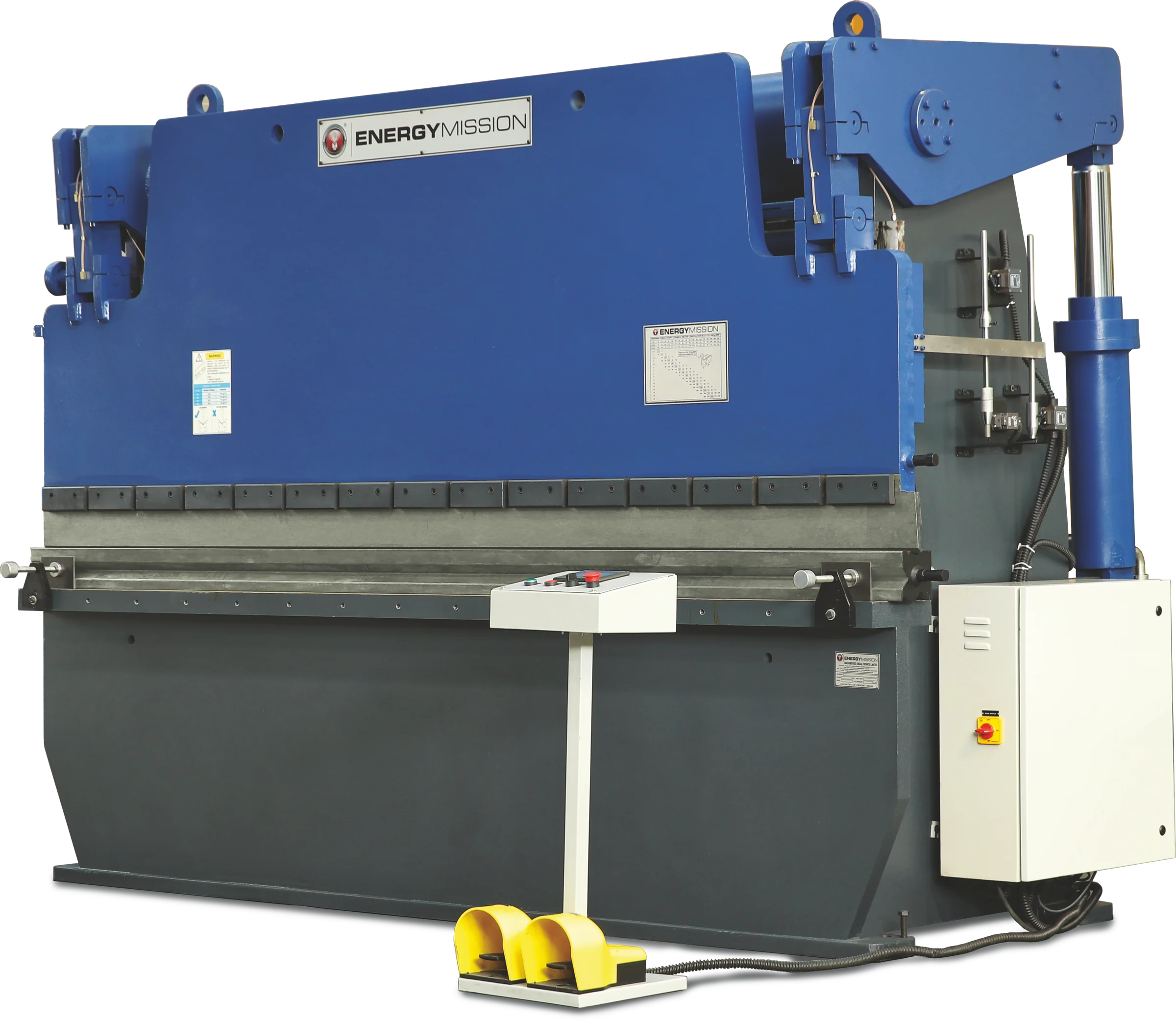

Bud’s Machine Tools 160 Ton x 10ft 220V Three Phase Hydraulic Press Brake EM-PBR-1630

Bud’s Machine Tools 160 Ton x 10ft 220V Three Phase Hydraulic Press Brake EM-PBR-1630 is a Bud’s Machine Tools product in the Press Brakes collection.

Product Details

• Tonnage: 160 Ton
• Table Length: 118”
• Bending Capacity: 0.23” x 118”
• Table Width: 9”
• Features
• The stable robust welded steel frame made of ultrasonically and tensile tested IS 2062 plate as per guidelines of IMTMA standards
• Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity
• Repeatability for ram position ± 0.05mm
• Compact cylinders & low pressure system due to rear cylinders. Also it gives better rigidity & load carrying capacity against fatigue failure
• Positive synchronization of cylinders with welded torque tube gives better bending accuracy on both ends
• Moving work station with manual, single cycle & automatic mode for easy operation with emergency stop button
• NC upgradation possible on site
• All electrical & hydraulic component from reputed make
• Hydraulic cylinders made from seamless honed tube, hardened & grounded chrome plated piston rod fitted with twin type zero leak PU Seals
• Suitable for upgradation with special optional features
• Specifications
• Table Length: 3000mm (118.11”)
• Bending Length: 6mm (0.2362”)
• Bending Capacity: 6mm x 3000mm (0.2362” x 118.11”)
• Table Width: 230mm (9.0551”)
• Clear Pass: 2550mm (100.39”)
• Ram Stroke: 150mm (5.9055”)
• Open Height: 350mm (13.78”)
• Throat Depth: 300mm (11.811”)
• Approach/Pressing/Return Speed: 25-6-42 mm/sec
• Power: 15HP
• Electrical Requirements: 220V Three Phase
• Dimensions (LxWxH): 128” x 71” x 102”
• Weight: 16,535 lbs
• Optional Add-Ons
• Power Back Gauge
• NC Back Gauge

Specifications

• Manufacturer: Bud's Machine Tools
• SKU: EM-PBR-1630
• Shipping Method: Flatbed
• Weight: 16,700 lb
• Dimensions: 128 × 71 × 102 in
• Country of Origin: India
