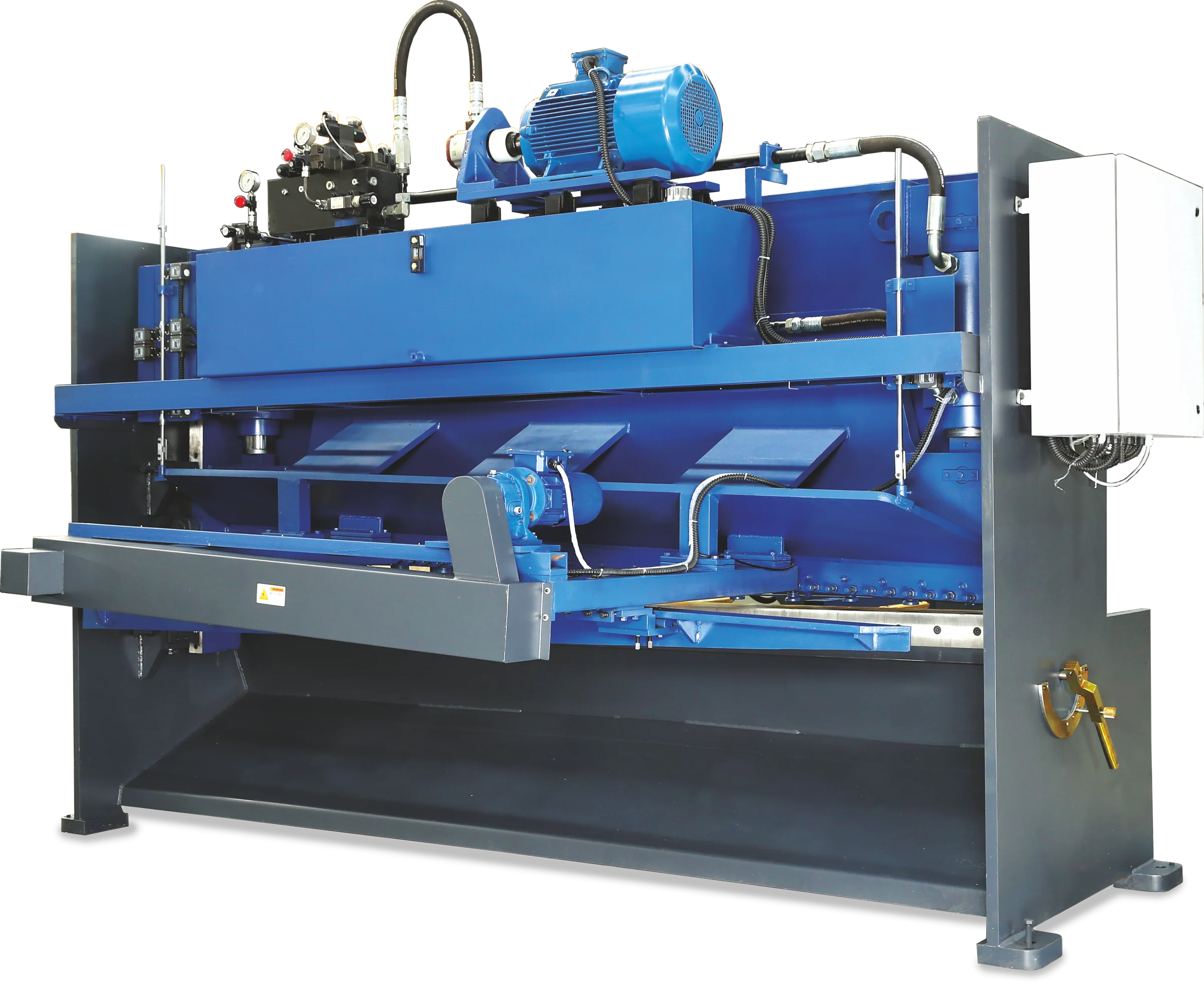

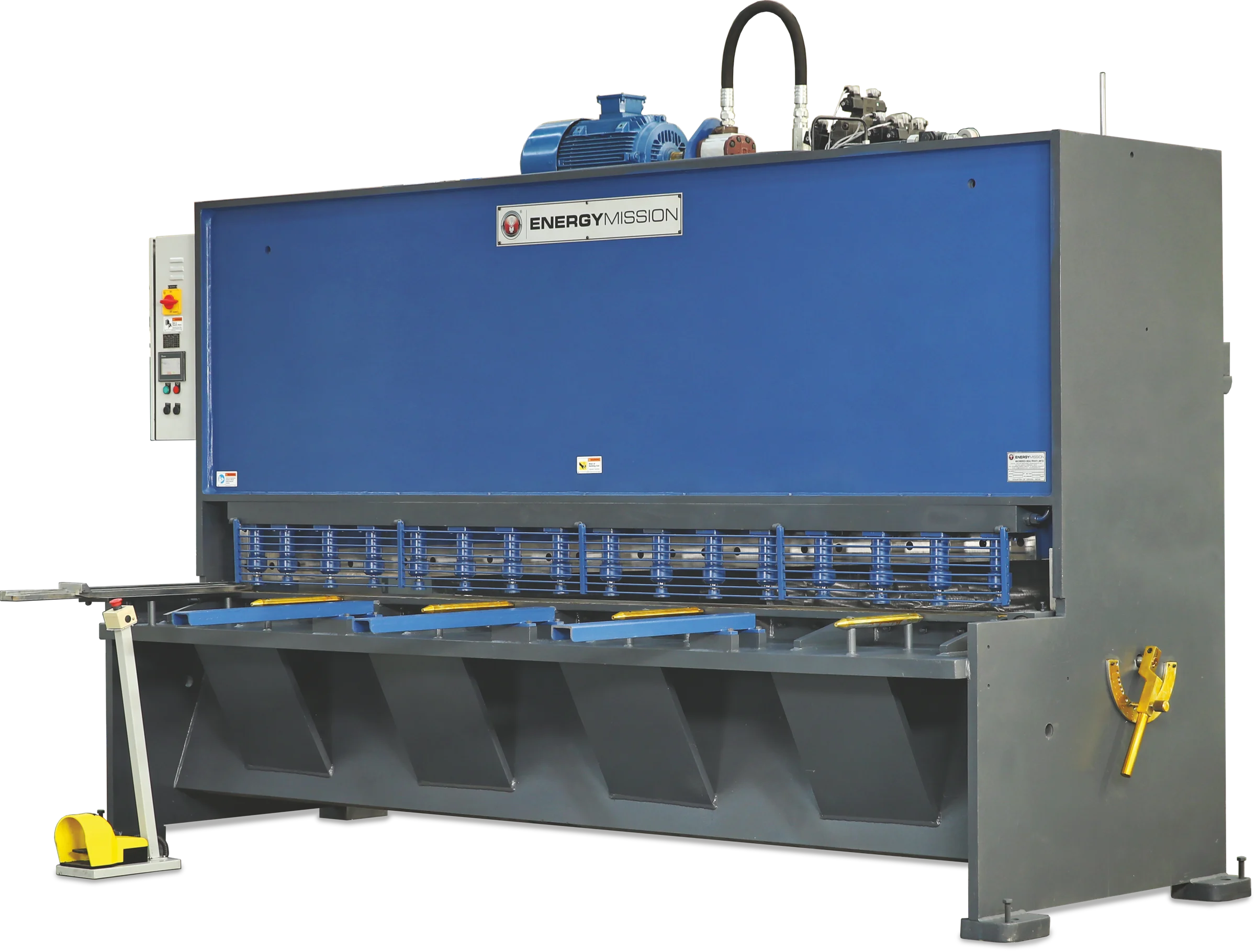

Bud’s Machine Tools 120” 480V Three Phase Hydraulic Sheet Metal Shear HVR-630

Bud’s Machine Tools 120” 480V Three Phase Hydraulic Sheet Metal Shear HVR-630 is a Bud’s Machine Tools product in the Shears collection.

Product Details

• Shearing length: 120”
• Working Height: 31.5”
• Capacity (Mild Steel): 0.24”/0.31”
• Blade Size: 0.7” x 3” x 124”
• Features
• Guillotine type hydraulically variable rake angle design
• Twist free & better cutting result in thin sheets at lower rake angle
• Cutting job accuracy as per DIN Standard
• Higher cutting capacity than rated capacity at higher rake angle
• The stable & robust structure from ultrasonically & tensile tested IS 2062 grade steel
• Rigid box type structure of ram & table with inclined member in direction of resultant force
• Hydraulic & electrical safety interlocks for overloading
• NC upgradation possible as add-on
• Bolted type Square Box assembly for holding cylinder mounting
• Special guided seal for holding cylinder to avoid leakage
• All electrical & hydraulic components from reputed make
• Ram guided by six hardened & grounded guide rollers suitable for upgradation with special optional features
• Specifications
• Shearing Capacity Thickness Mild Steel: 0.24”/0.31” Stainless Steel: 0.16”/0.24”
• Mild Steel: 0.24”/0.31”
• Stainless Steel: 0.16”/0.24”
• Variable Angle Range: 0.5°-3°
• Number of Strokes per Minute @ Max Rake Angle: 8 @ Min Rake Angle: 20
• @ Max Rake Angle: 8
• @ Min Rake Angle: 20
• Number of Hold Down Cylinders: 16
• Oil Tank Capacity: 200 liters
• Oil Specification: 68 Grade Hyd. Oil
• Back Gauge Travel: 39.3”
• Motor Power: 10HP
• Electrical Requirements: 480V Three Phase
• Dimensions (LxWxH): 165” x 110” x 90”
• Weight: 12,677 lbs
• Optional Add-Ons
• Power Back Gauge with DRO up to 3,000mm
• Power Back Gauge with DRO above 3,000 to 6,000mm
• NC Back Gauge with Cybelec Controller up to 3,000mm
• NC Back Gauge with Cybelec Controller above 3,000 to 6,000mm

Specifications

• Manufacturer: Bud's Machine Tools
• SKU: EM-HVR-630(480V)
• Shipping Method: Flatbed
• Weight: 12,800 lb
• Dimensions: 170 × 115 × 95 in
• Country of Origin: India
