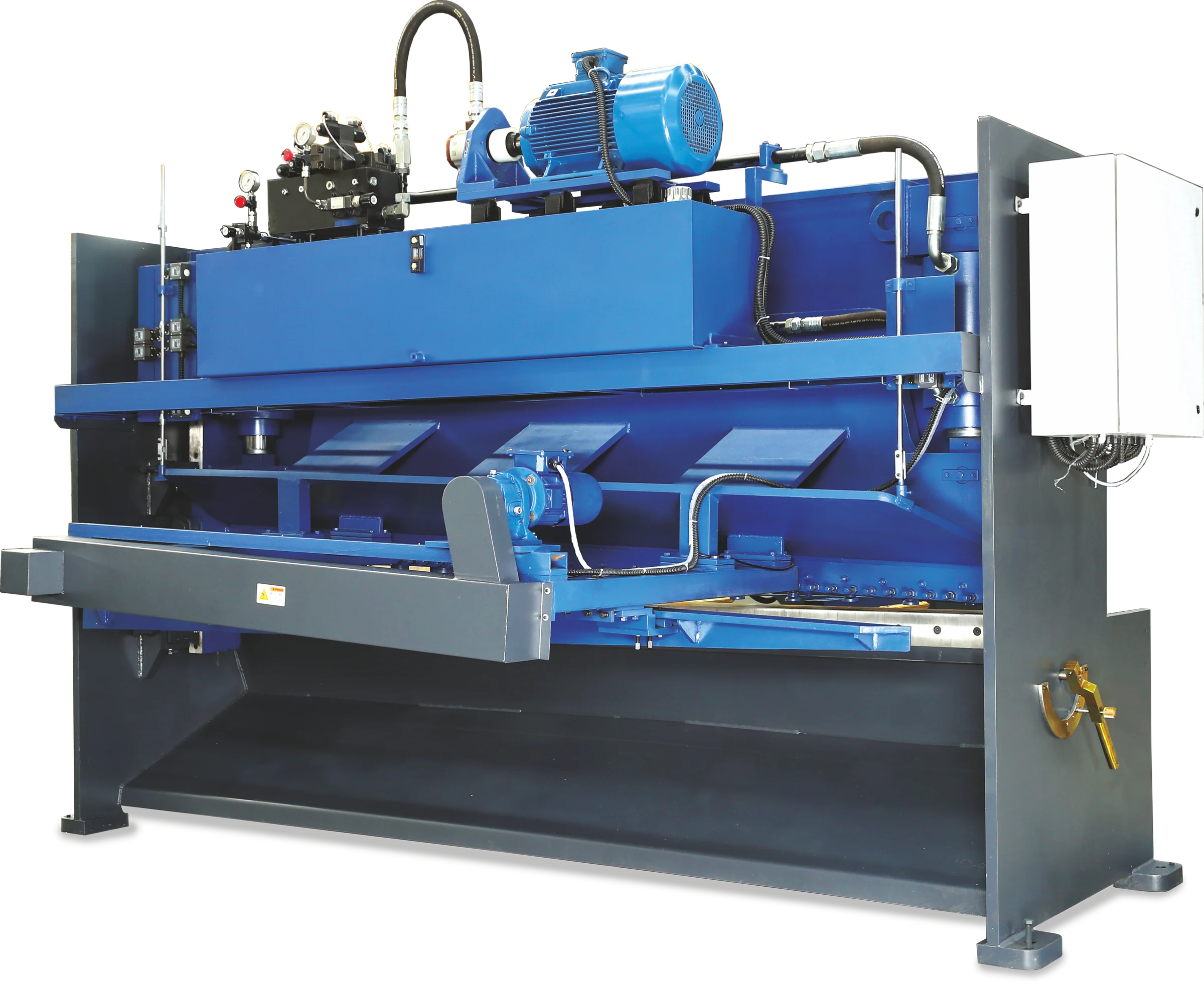

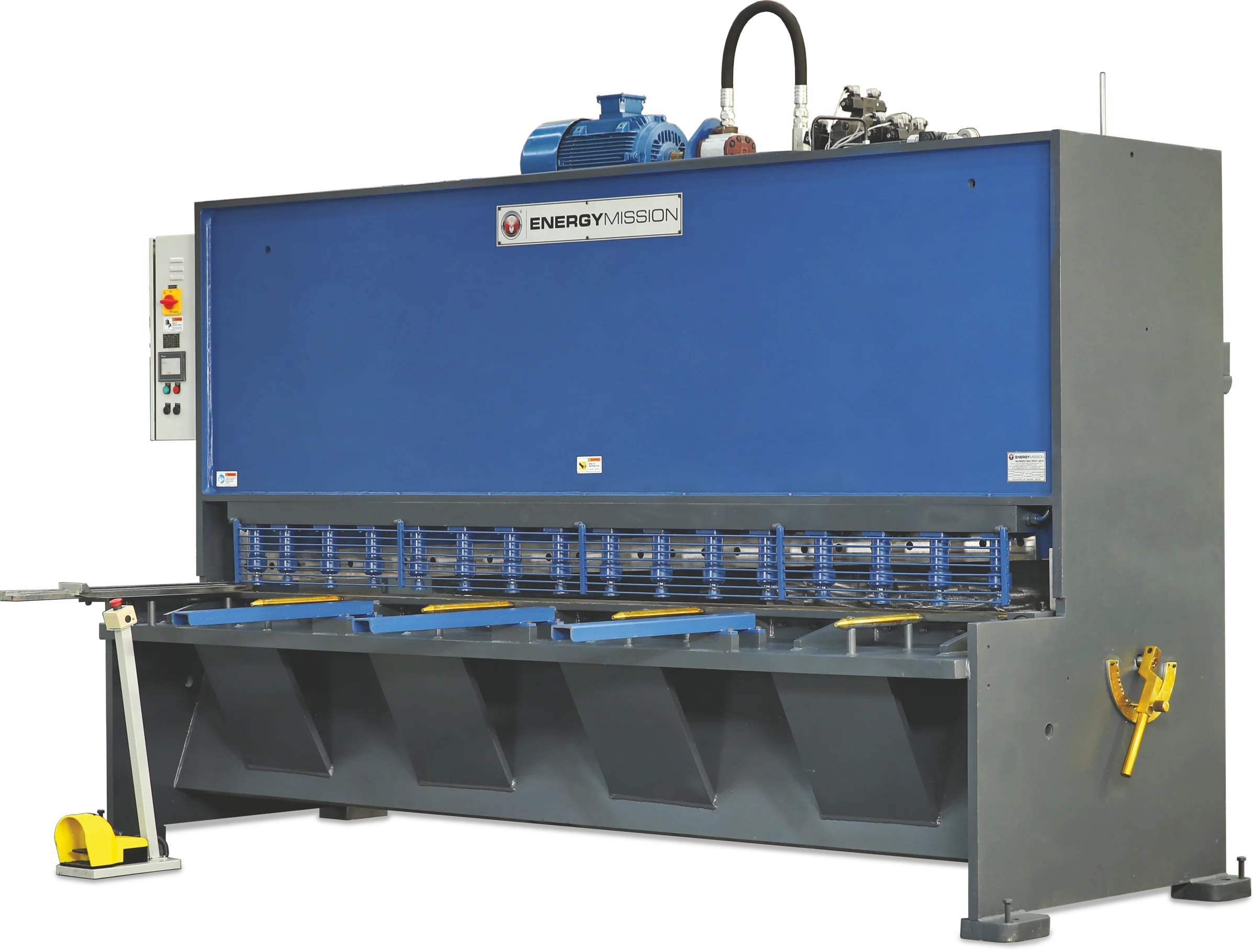

Bud’s Machine Tools 118” 480V Three Phase Hydraulic Sheet Metal Shear HVR-330

Bud’s Machine Tools 118” 480V Three Phase Hydraulic Sheet Metal Shear HVR-330 is a Bud’s Machine Tools product in the Shears collection.

Product Details

• Shearing length: 118”
• Working Height: 31.5”
• Capacity (Mild Steel): 0.12”/0.16”
• Blade Size: 0.5” x 2.4” x 124”
• Features
• Guillotine type hydraulically variable rake angle design
• Twist free & better cutting result in thin sheets at lower rake angle
• Cutting job accuracy as per DIN Standard
• Higher cutting capacity than rated capacity at higher rake angle
• The stable & robust structure from ultrasonically & tensile tested IS 2062 grade steel
• Rigid box type structure of ram & table with inclined member in direction of resultant force
• Hydraulic & electrical safety interlocks for overloading
• NC upgradation possible as add-on
• Bolted type Square Box assembly for holding cylinder mounting
• Special guided seal for holding cylinder to avoid leakage
• All electrical & hydraulic components from reputed make
• Ram guided by six hardened & grounded guide rollers suitable for upgradation with special optional features
• Specifications
• Shearing Capacity Thickness Mild Steel: 0.12”/0.16” Stainless Steel: 0.08”/0.12”
• Mild Steel: 0.12”/0.16”
• Stainless Steel: 0.08”/0.12”
• Variable Angle Range: 0.5°-2°
• Number of Strokes per Minute @ Max Rake Angle: 9 @ Min Rake Angle: 18
• @ Max Rake Angle: 9
• @ Min Rake Angle: 18
• Number of Hold Down Cylinders: 16
• Oil Tank Capacity: 140 liters
• Oil Specification: 68 Grade Hyd. Oil
• Back Gauge Travel: 23.6”
• Motor Power: 5HP
• Electrical Requirements: 480V Three Phase
• Dimensions (LxWxH): 165” x 90.5” x 78.7”
• Weight: 9,370 lbs
• Optional Add-Ons
• Power Back Gauge with DRO up to 3,000mm
• Power Back Gauge with DRO above 3,000 to 6,000mm
• NC Back Gauge with Cybelec Controller up to 3,000mm
• NC Back Gauge with Cybelec Controller above 3,000 to 6,000mm

Specifications

• Manufacturer: Bud's Machine Tools
• SKU: EM-HVR-330(480V)
• Shipping Method: Flatbed
• Weight: 9,500 lb
• Dimensions: 169 × 95 × 82 in
• Country of Origin: India
