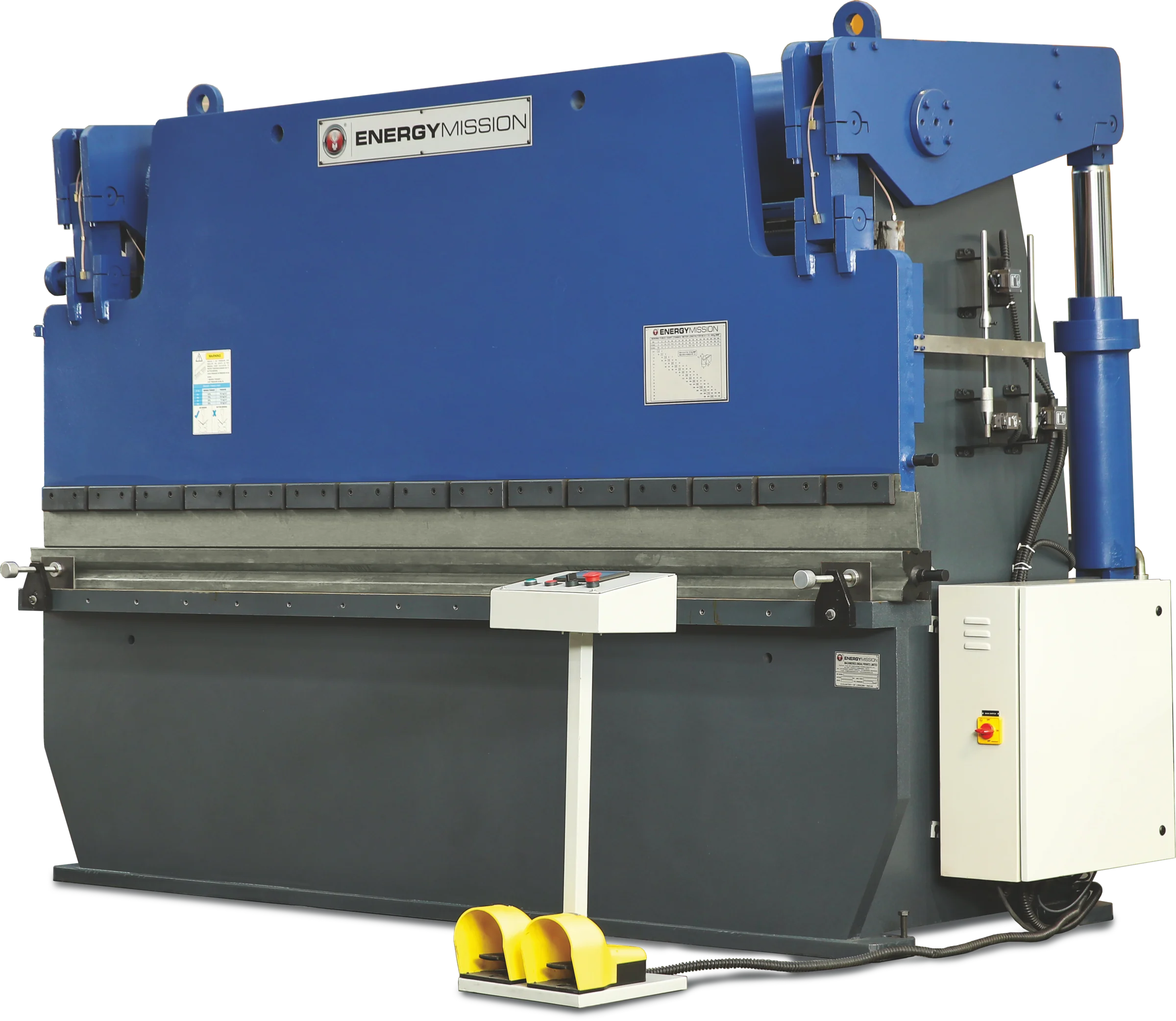

Bud’s Machine Tools 100 Ton x 13ft 220V Three Phase Hydraulic Press Brake EM-PBR-1040

Bud’s Machine Tools 100 Ton x 13ft 220V Three Phase Hydraulic Press Brake EM-PBR-1040 is a Bud’s Machine Tools product in the Press Brakes collection.

Product Details

• Tonnage: 100 Ton
• Table Length: 157"
• Bending Capacity: 0.11" x 157"
• Table Width: 7"
• Features
• The stable robust welded steel frame made of ultrasonically and tensile tested IS 2062 plate as per guidelines of IMTMA standards
• Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity
• Repeatability for ram position ± 0.05mm
• Compact cylinders & low pressure system due to rear cylinders. Also it gives better rigidity & load carrying capacity against fatigue failure
• Positive synchronization of cylinders with welded torque tube gives better bending accuracy on both ends
• Moving work station with manual, single cycle & automatic mode for easy operation with emergency stop button
• NC upgradation possible on site
• All electrical & hydraulic component from reputed make
• Hydraulic cylinders made from seamless honed tube, hardened & grounded chrome plated piston rod fitted with twin type zero leak PU Seals
• Suitable for upgradation with special optional features
• Specifications
• Table Length: 4000mm (157.48")
• Bending Length: 3mm (0.1181")
• Bending Capacity: 3mm x 4000mm (0.1181" x 157.48")
• Table Width: 180mm (7.0866")
• Clear Pass: 3100mm (122.05")
• Ram Stroke: 150mm (5.9055")
• Open Height: 330mm (12.992")
• Throat Depth: 200mm (7.874")
• Approach/Pressing/Return Speed: 29-4-31 mm/sec
• Power: 10HP
• Electrical Requirements: 220V Three Phase
• Dimensions (LxWxH): 168” x 65” x 99”
• Weight: 15,433 lbs
• Optional Add-Ons
• Power Back Gauge
• NC Back Gauge

Specifications

• Manufacturer: Bud's Machine Tools
• SKU: EM-PBR-1040
• Shipping Method: Flatbed
• Weight: 15,500 lb
• Dimensions: 167 × 62 × 99 in
• Country of Origin: India
