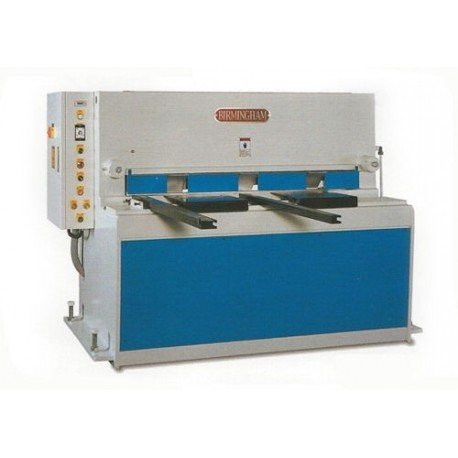

Birmingham 4′ x 10 Ga 2.5 Ton Heavy Duty Hydraulic Shear H-0435

Birmingham 4′ x 10 Ga 2.5 Ton Heavy Duty Hydraulic Shear H-0435 is a Birmingham Machine Tools product in the Shears collection.

Product Details

• Cutting Capacity: 4'
• Blade Length: 4'4"
• Pressure of Hold Downs (tons): 2.5
• Number of Hold Downs: 8
• Description
• Main Features:
• Well balanced and sturdy welding machine frame provides constant stability and rigidity
• The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump
• Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting
• High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade life, 60hrc hardened
• Blade clearance (gap) setting can be easy and quickly done by adjusting handle. (Standard for H-0445 and heavier models)
• Hydraulic adjustable rake angle design is a standard feature for all models, this allows the operator to obtain best rake angle for each application and minimize possible bowing and twisting
• Adjustable cutting length and stroke
• Shadow line lighting covering full length of work table, this is very helpful to operator for positioning and shearing workpiece
• Worktable mounted with ball transfer type plates, for easier loading and moving workpiece
• Full length and full view safety finger guard, to protect operator from cutting hazard
• Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately, when the operator removes off his foot from the pedal
• All motors and pumps are overload protected
• Jog, single, or continuous cutting modes
• Standard Accessories:
• High grade, high carbon/chrome 2 edge upper blade, and 4 edge bottom blade, 60hrc
• Hydraulic rake angle adjustment
• Two 40” front support arms with front setters
• One 40” squaring arm with dual scale
• 24” manual back gauge with dual scales and crank wheel
• Single axis 32” NC programmable front operator power back gauge (H-0865/H-1065/H-1365 only)
• Full length finger guard and shadow line lighting
• Hydraulic independent hold downs
• Overload protected hydraulic system
• Removable foot control pedal with safety protection
• Full electrics & cabinet with operation panel
• Tool box and leveling pads
• Optional Accessories:
• Angle gauge
• Single axis, NC programmable 32” power back gauge
• Hydraulic-type thin sheet supporter
• Power back gauge with lifting function
• 59” / 79” / 118” front support arm
• 59” / 79” / 118” squaring arm with dual scale
• CE making machines
• Specifications
• Mild Steel: 10GA
• Stainless Steel: 13GA
• Strokes Per Minute (S.P.M.): 44-55
• Front Support (inches): 40
• Back Gauge (inches): 24
• Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
• Top Blade Rake Angle: 1/2-2
• Motor (HP): 7.5
• Oil Tank Capacity (gallons): 25
• Net Weight (lbs): 4000
• Overall Demensions (without support arm): 91" x 48" x 63"

Specifications

• Manufacturer: Birmingham Machine Tools
• SKU: H-0435
• Shipping Method: LTL Freight
• Weight: 4,000 lb
• Dimensions: 91 × 48 × 63 in
