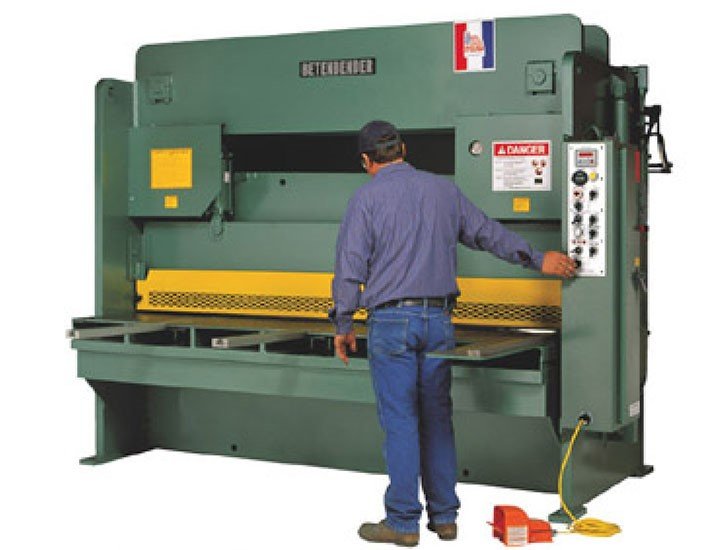

Betenbender 460V Three Phase 5/8″ Hydraulic Shear 12′ Bed

Betenbender 460V Three Phase 5/8″ Hydraulic Shear 12′ Bed is a Betenbender product in the Shears collection.

Product Details

• All Steel Construction
• 36" Power Backgauge w/LED Readout
• Motor: 30 hp, 460 Volt, 3 Phase
• Made in the USA
• Description
• A precision cut doesn't happen by chance.
• It takes a shear that can make a razor-sharp cut time after time. Betenbender overdriven and underdriven Hydraulic Shears are designed to do exactly that.
• Betenbender designs simplicity and safety into its shears-with an advanced hydraulic system, and flexible operation. They're easy to operate, easy to maintain and able to withstand the rigors of today's production demands. A wide range of options are available.
• Features
• Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110v footswitch lets you interrupt the cutting stroke at any point in its cycle.
• Easy Material Handling: A sturdy backgauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4' squaring arm with a recessed scale makes for fast, easy measurement.
• Single Piece Top and Bottom, High Carbon, High Chrome Shock Resistant Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials.
• Electrical System: Meets NFPA 79 and construction requirements of the ANSI B11.4. All machines have disconnect switches magnetic starters, 110/120v controls, and 208-230/460v 3 phase, others optional.
• Backgauges: A Betenbender Shear is capable of shearing 1/8" (10 GA) material to the following tolerance: Dimension – The width of the off-cut portion of the workpiece is within ±0.005 inch of the backgauge setting.
• Specifications
• Knives: 1×4
• Motor: 30 hp, 460 Volt, Three Phase
• Weight (May Vary): 32,000 lbs
• Overall Length: 171 1/2"
• Overall Height: 84"
• Table Height: 32"
• Anchor Bolt Dimension/Length: 152"
• Anchor Bolt Dimension/Width: 55"
• End Plate Width: 48"
• Machine with Backgauge: 80"
• Squaring Arm Length, 4' Std: 24"
• Knife Length: 148"
• Rake Angle per Rated Capacity: 1/2"
• Strokes per Minute: 8"
• Number of Hold-down Pins: 20"
• 36" Power Backgauge with LED Readout Inch / Metric.
• 4' Squaring Arm with Inlaid Scale
• All Hydraulic Fluids Included
• American Made Hoses and Fittings
• American Made Motor and Valves
• Disconnect Switch
• Hour Meter
• Hydraulic Pressure: 2500 psi
• Hydraulic Self-Compensating Hold-down Bar Assembly
• Light Beam Gauge (Shadow Line)
• Linemaster Foot Switch
• Manual Rapid Blade Gap Adjustment (3/8" and Larger)
• Manual Swing up Backgauge
• NEMA Electrics
• Power Adjust Variable Rake
• Safety Switch for Front Guard
• Single Piece Top and Bottom, Shock Resistant Knives with Four Cutting Edges
• Available Options
• Recommended options for 3/8", 1/2", 5/8" and 3/4" machines: 3 Position Power Blade Gap Adjustment (3/8" and Larger) Automatic Power Lift Backguage
• 3 Position Power Blade Gap Adjustment (3/8" and Larger)
• Automatic Power Lift Backguage
• Recommended options for all machines: 48" Support Arms/Front Gauges Neoprene Hold-down Caps One Shot Lubrication Solid Table Top – Bolt on Segments
• 48" Support Arms/Front Gauges
• Neoprene Hold-down Caps
• One Shot Lubrication
• Solid Table Top – Bolt on Segments
• 2 Position Power Blade Gap Adjustment (3/8" and Larger)
• 208v Single Phase
• 5 Station NC "GO-TO" Positioner
• Angle Gauge
• Automatic Lubrication
• Ball Transfers
• Bolt/Shim Kit for Leveling
• Continuous Stroke (Includes Stroke Counter)
• Disappearing Stops (Support Arms)
• Dovetail Slots or T-Slots
• Electronic Stroke Control
• Extended Squaring Arm (4' Standard)
• Extra Foot Pedal with Keylock Switch
• Flip Up Stops (Squaring Arm)
• Harder Grade of High Carbon, High Chrome Knives
• Increase HP (Increase Speed)
• Independent Hold-down Control
• Inlaid Scale (0-48")
• Keylock Switch
• Left Hand Squaring Arm (4')
• Machined Solid Table Top Bed
• Oil Cooler
• Other Electrics and Motors
• Pneumatic Sheet Support
• Power Blade Gap Adjustment (10 GA, 3/16", 1/4")
• Special Paint Colors
• Stroke Counter
• Extra Length on Backgauge
• Power Lift Backguage

Specifications

• Manufacturer: Betenbender
• SKU: BB5812S (460V)
• Shipping Method: Flatbed
• Weight: 32,000 lb
• Dimensions: 180 × 104 × 84 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
